Norton Rixson 340 Top Pivot, Center Hung, Non-Handed Installation Instructions_IS-340
Open the original PDF document
View PDF
Notes:

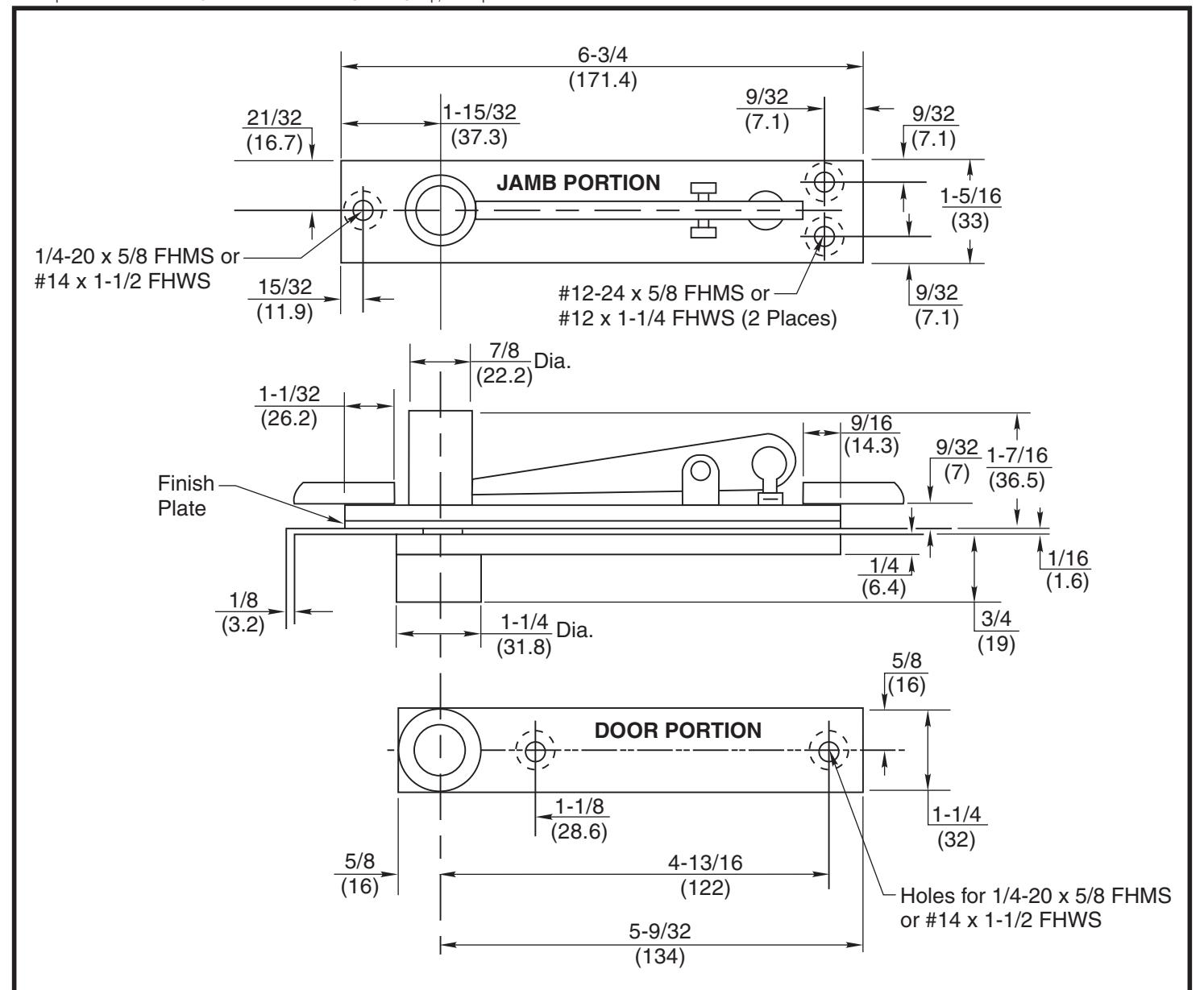

- 1. Do not scale drawing. Prepare door and frame per details shown.
- 2. Dimensions are given in inches (mm).
- 3. To insure proper operation of door, the centerline of the top pivot pin must be straight and plumb with bottom spindle.
- 4. Install jamb portion with pin retracted.
- 5. Install door portion.
- 6. Place door on bottom pivot and raise door to vertical position.
- 7. Engage top pivot pin by turning adjusting screw clockwise when door portion is in alignment with the jamb portion.
