Norton Rixson 327 Floor Closer, Independently Hung Template_OS10400

To clear arm cut flange off push side

from heel of door.

$\backslash oplus$

<del><-</del>2-1/4→

3/4

Rail must

extend to hinge edge

of door.

Jamb

Norton Rixson

3/4" Offset Pivots

or Standard Butt

Jamb

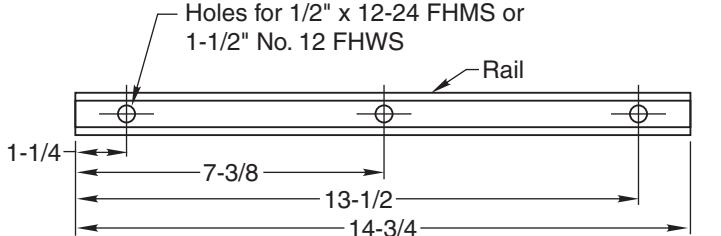

Rail

2-1/16

Hinges

of door below rail. Length of cut: 12-1/2" ->

-11-3/8 Floor Plate

Arm Locking Screw

© Closer Spindle

C Door & Rail

9-13/16 Cement Case

Cement Case

Arm

DIMENSION "A" SHOWN IN THE TABLES ARE FOR 1-3/4" THICK DOORS ONLY-CONTACT THE FACTORY FOR DOORS OTHER THAN 1-3/4"

IMPORTANT

Select Correct Dim. "A" From Tables Shown For Setting Floor Closer

For 90° Door Opening on 1-3/4" Doors Door Stops and/or Holds Open at 90°

Type Of Hinge	Dim "A"
Norton Rixson M19 Side Jamb Pivots	4-7/16
4-1/2" X 4-1/2" Butt Hinge	3-3/4
4" X 4" Butt Hinge	3-1/2

For 95° Door Opening on 1-3/4" Doors Door Stops and/or Holds Open at 95°

Type Of Hinge	Dim "A"
Norton Rixson M19 Side Jamb Pivots	3-15/16
4-1/2" X 4-1/2" Butt Hinge	3-1/4
4" X 4" Butt Hinge	2-15/16

Optional Heavy Duty Door Stop Required

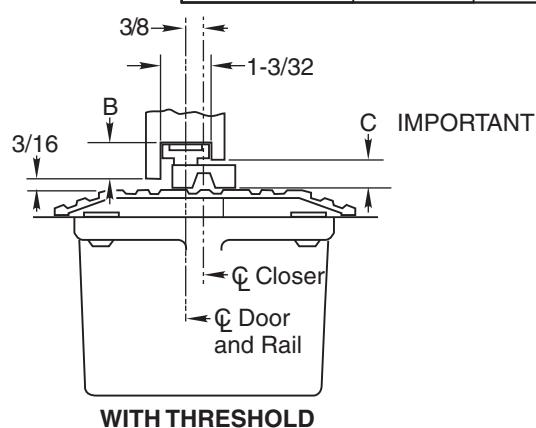

1/4 Threshold	B=1-1/16	C=7/8
1/2 Threshold	B=13/16	C=5/8

Surface of Finished Floor

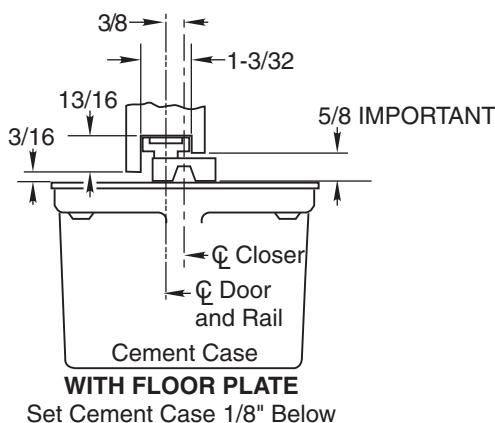

Set Cement Case Flush with Finished Floor

Closer must have a 1/2" longer spindle for threshold.

- 11-1/8

NOTE:

• 1. Do not scale.
• 2. Right Hand Shown
• 3. Dimensions given in inches. Conversion from inches to metric: inch x 25.4.
• 4. Norton Rixson designed threshold available on request.

327 Independently Hung Floor Closer

5-7/8 Cement Case -6-1/8 Floor Plate

Rail Block

4-1/16

ASSA ABLOY

TEMPLATE NUMBER

OS10400 3

12/21

Approved 2023-12-15
