Norton Rixson 320 Top Pivot, Center Hung, Non-Handed Installation Instructons_IS-320
Open the original PDF document
View PDF
Installation Instructions:

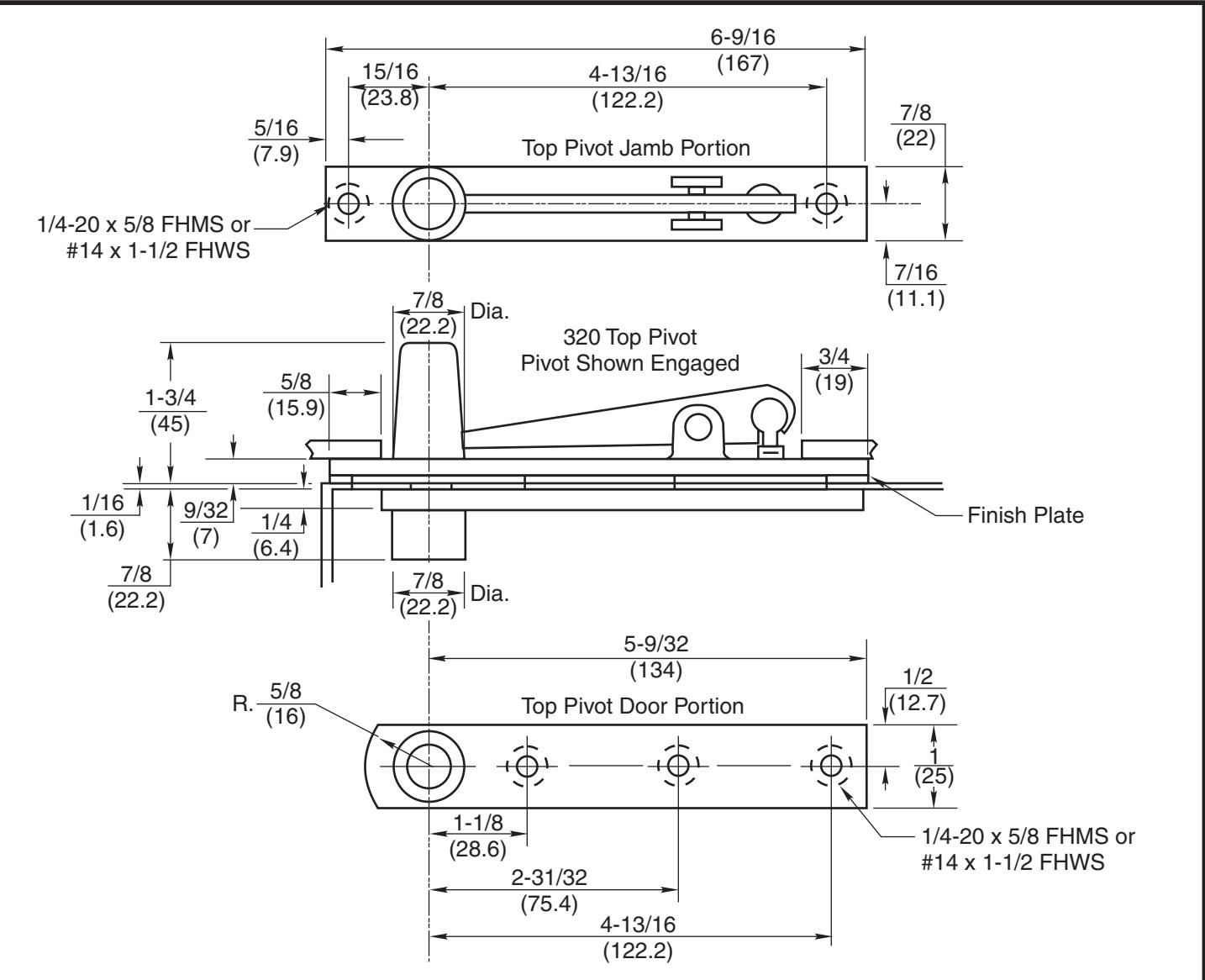

- 1. Prepare door and frame per details shown.
- 2. To insure proper operation of door, the centerline of the top pivot pin must be straight and plumb with bottom spindle.
- 3. Install jamb portion with pin retracted.
- 4. Install door portion.
- 5. Place door on bottom pivot and raise door to vertical position.
- 6. Engage top pivot pin by turning adjusting screw clockwise when door portion is in alignment with the jamb portion.
Notes:
- 1. Do not scale drawing.
- 2. Dimensions are given in inches (mm).
| RIX | RIXSON° ASSA ABLOY www.rixson.com | |||
|---|---|---|---|---|
| TEMPLATE NUMBER | REV | DATE | ||
| IS-320 | 3 | 05-24 | ||
| Approved 2024-05-24 | ||||
