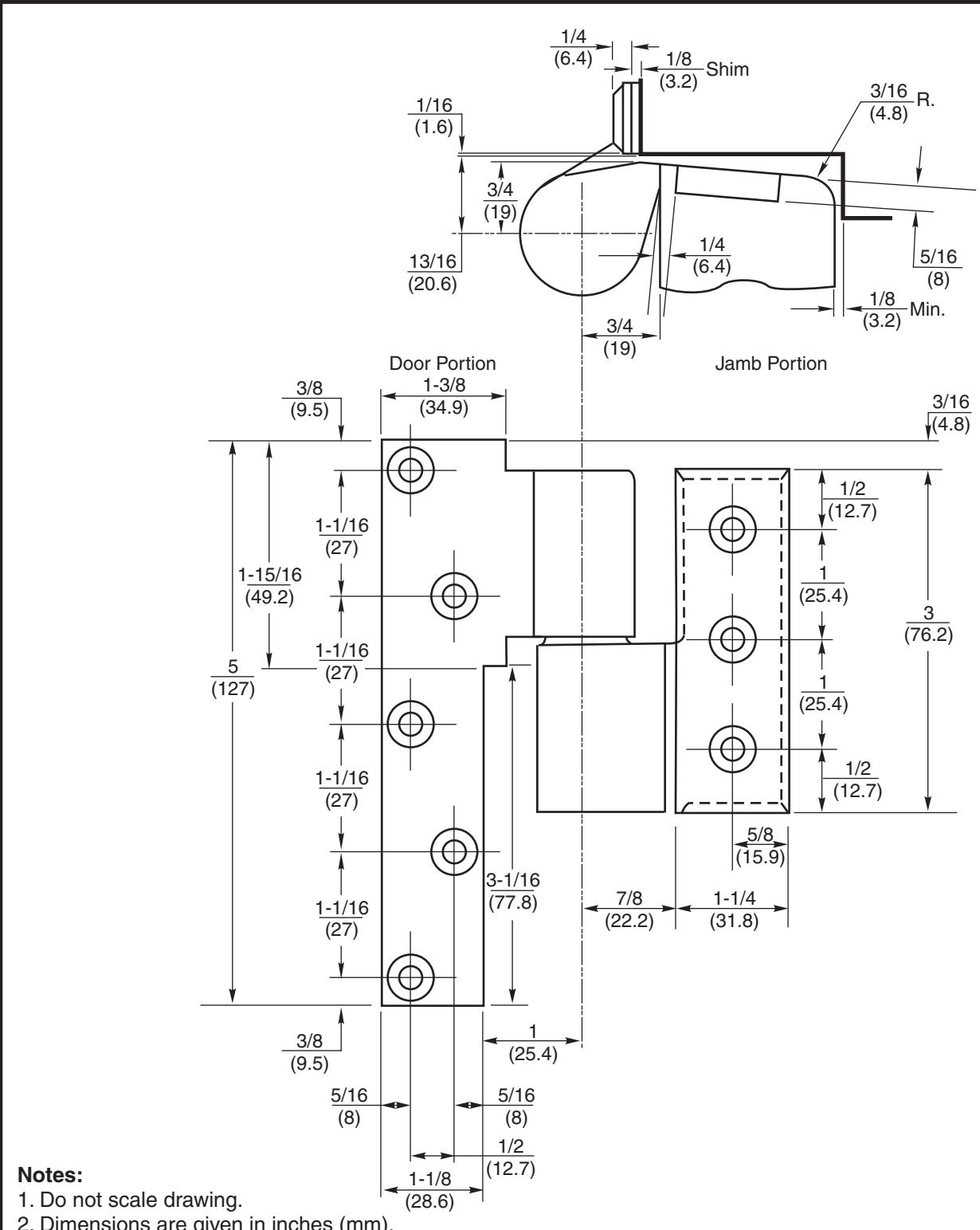

Norton Rixson 319 Intermediate Pivot, 3, 4 Offset, Half Mortise Template_IP50300

• 2. Dimensions are given in inches (mm).
• 3. Right hand shown.
• 4. All necessary reinforcing for pivot by others.
• 5. Bevel edge of door: 1/8" in 2" (3.2 in 50.8)
• 6. Pivot drilled for 5/8" x 1/4-20 FHMS or 1-1/2" #14 FHWS.

319 Intermediate Pivot 3/4" Offset Half Mortise

RIXSON

ASSA ABLOY

TEMPLATE NUMBER IP50300

3 01/22

Approved 2023-12-15
