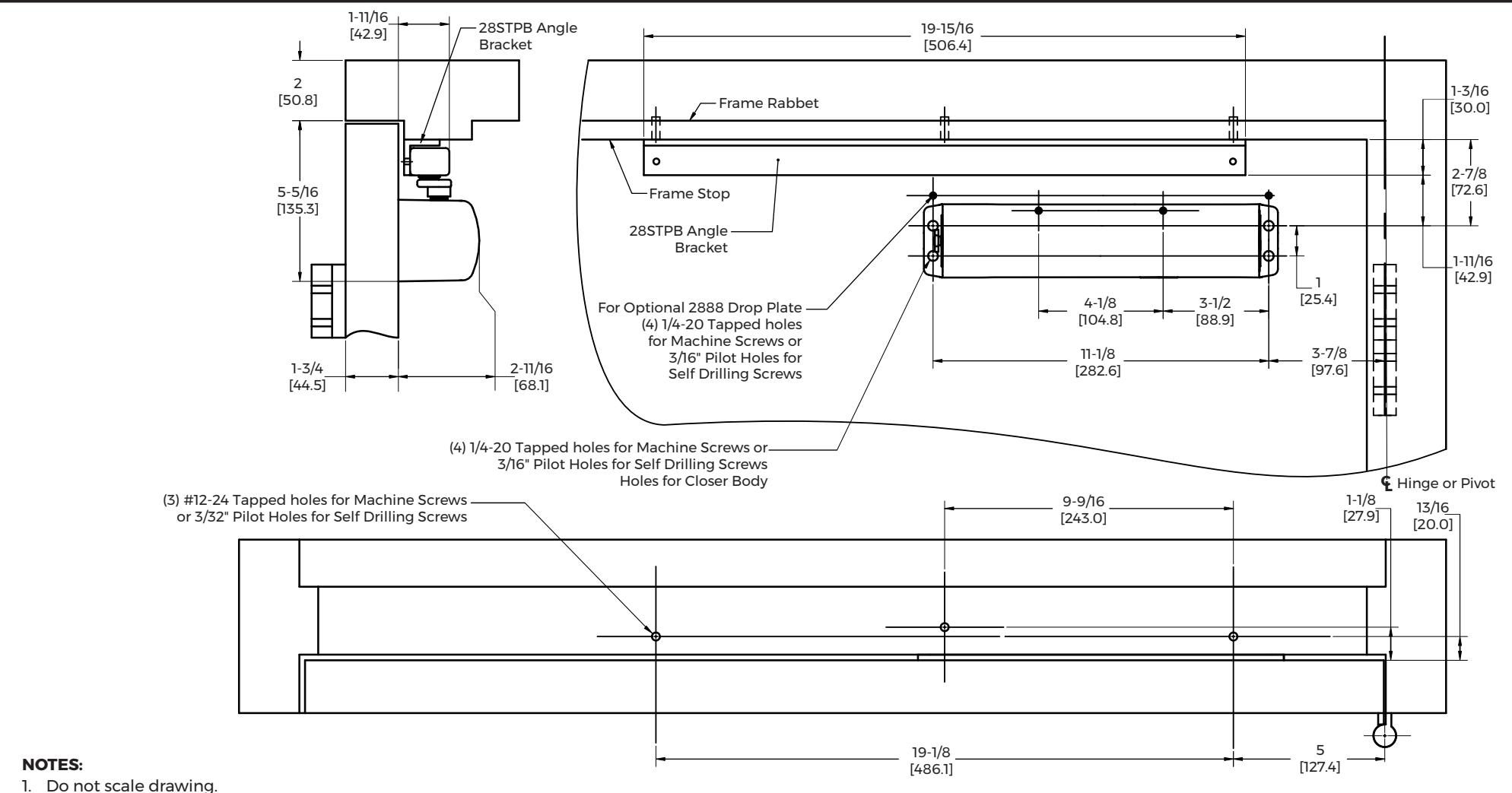

Norton Rixson 2800ST Cam Action Door Closer Push Side Application, with 28STPB Angle Bracket Door Mounted Templa…_7328-0015

• 2. Blocking in wood frames must be securely fastened to header to support angle bracket and slide track assembly.
• 3. Hollow-metal doors require channel or box-type reinforcement when through-bolt mount is specified.
• 4. Minimum thickness recommended for reinforcements in hollow-metal doors and frames: .1046" [2.66mm] unless otherwise noted.
• 5. Max. degree of opening: 110° (conditions permitting).
• 6. Right hand door shown, Left hand opposite.
• 7. All dimensions in inches [mm].

2800ST Cam Action Door Closer Push Side Application, with 28STPB Angle Bracket Door Mounted Approved 2023-10-10

RIXSON

ASSA ABLOY

TEMPLATE NUMBER 7328-0015

DATE 10/23
