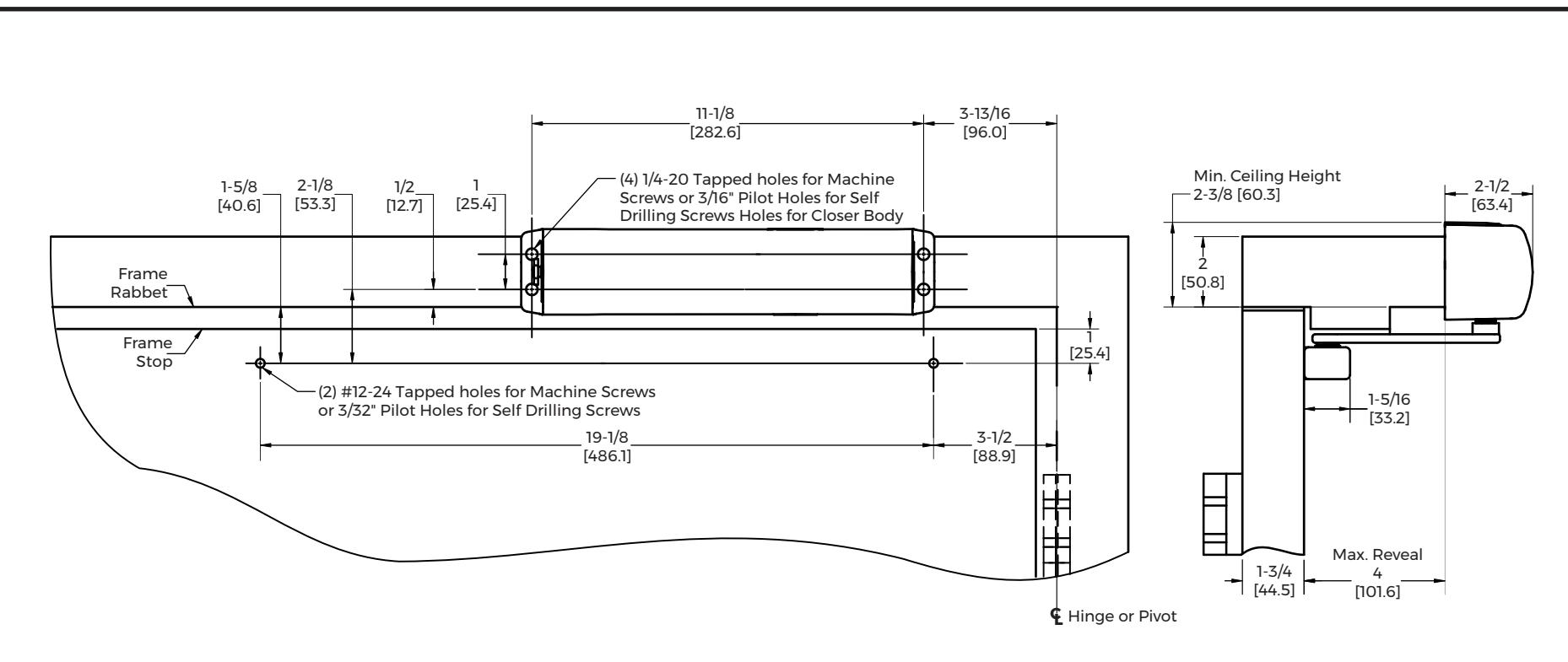

Norton Rixson 2800ST Cam Action Door Closer Push Side Application Frame Mounted Template_7328-0016

Open the original PDF document

View PDF

NOTES:

  • 1. Do not scale drawing.
  • 2. Blocking in wood frames must be securely fastened to header to support closer body.
  • 3. Hollow-metal doors require channel or box-type reinforcement when through-bolt mount is specified.
  • 4. Minimum thickness recommended for reinforcements in hollow-metal doors and frames: .1046" [2.66mm] unless otherwise noted.
  • 5. Max. degree of opening: 110° (conditions permitting).
  • 6. Right hand door shown, Left hand opposite.
  • 7. Minimum ceiling clearance for closer cover: 2-3/8" [60.3 mm].
  • 8. Auxiliary stop required.
  • 9. All dimensions in inches [mm].

2800ST Cam Action Door Closer Push Side Application Frame Mounted Approved 2023-10-10

RIXSON

ASSA ABLOY

TEMPLATE NUMBER 7328-0016

REV DATE 1 10/23
