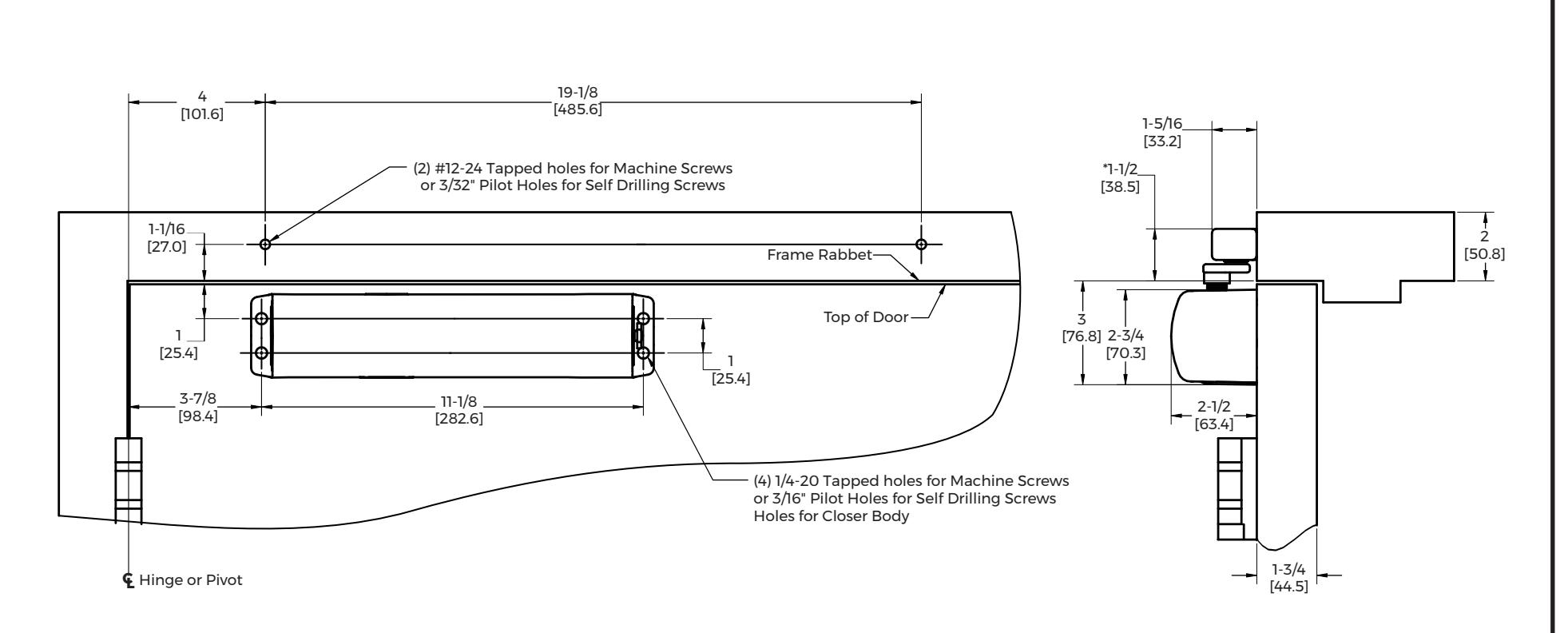

Norton Rixson 2800ST Cam Action Door Closer Pull Side Application, Door Mounted Template_7328-0013

Open the original PDF document

NOTES:

1. Do not scale drawing.
2. Blocking in wood frames must be securely fastened to header to support slide track assembly.
3. Hollow-metal doors require channel or box-type reinforcement when through-bolt mount is specified.
4. Minimum thickness recommended for reinforcements in hollow-metal doors and frames: .1046" [2.66mm] unless otherwise noted.
5. Max. degree of opening: 140° (conditions permitting).
6. Right hand door shown, Left hand opposite.
7. Minimum ceiling clearance for slider track assembly: 1-1/2" [38.5 mm]
8. All dimensions in inches [mm].

*Minimum Ceiling Height

RIXSON

ASSA ABLOY

TEMPLATE NUMBER 7328-0013

REV DATE 10/23
