Norton Rixson 280 Top Pivot, 3, 4 Offset, Half Surface Template_TP40100

Open the original PDF document

Notes:

1. Do not scale drawing.
2. Right hand shown.
3. All dimensions are in inches.
4. Template drawing for reference only.

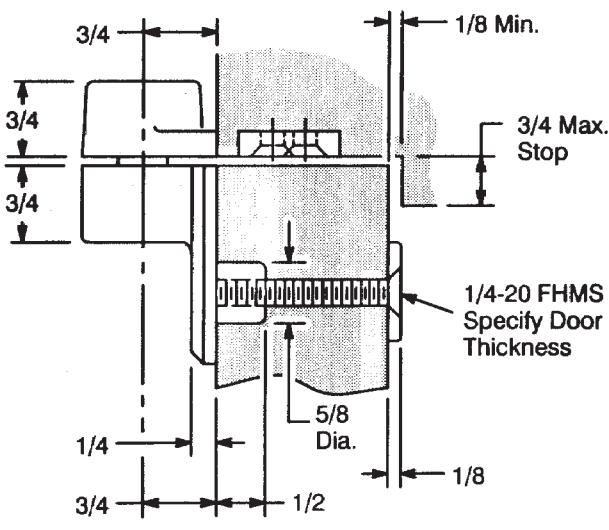

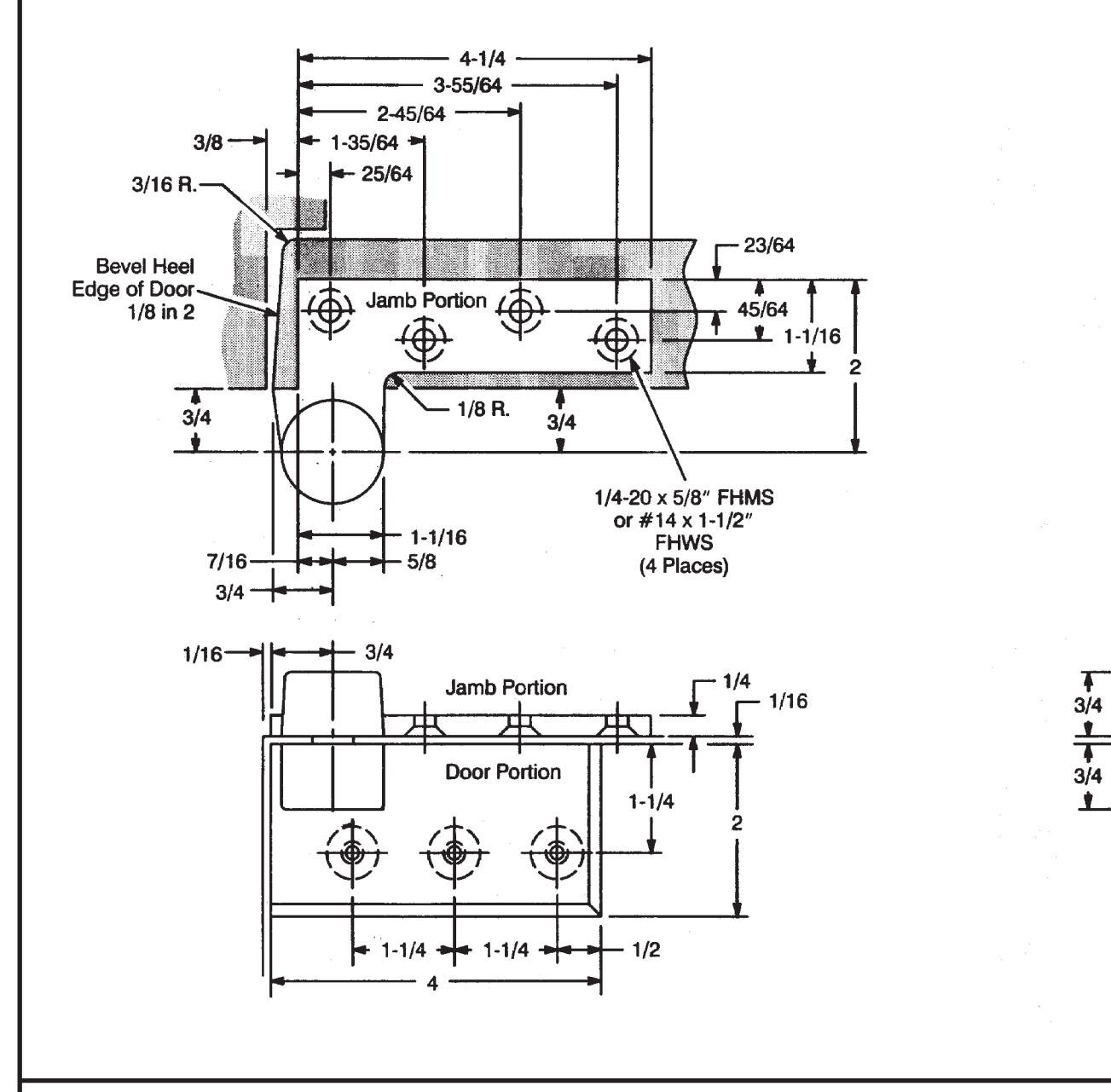

280 Top Pivot 3/4" Offset Half Surface

RIXSON

ASSA ABLOY

TEMPLATE NUMBER TP40100

Approved 2023-12-15

3 01/22
