280 Top Pivot

1. Install Pivot

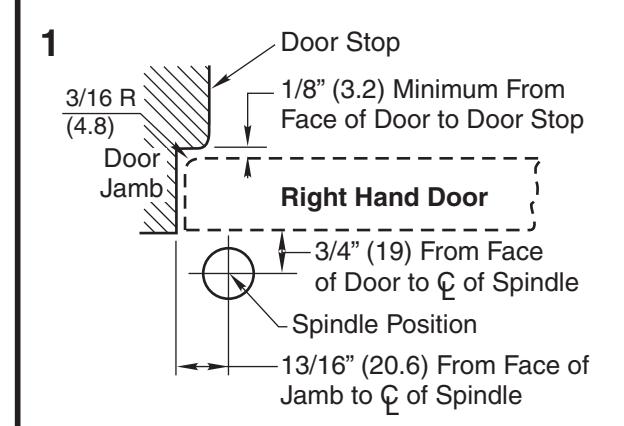

• A. Measure 13/16" (20.6) out from door jamb.
• B. Allow 1/8" (3.2) min. clearance from door stop to door face. Measure door thickness. Add 3/4" (19).
• C. Where lines meet determines center line of closer/bottom pivot.

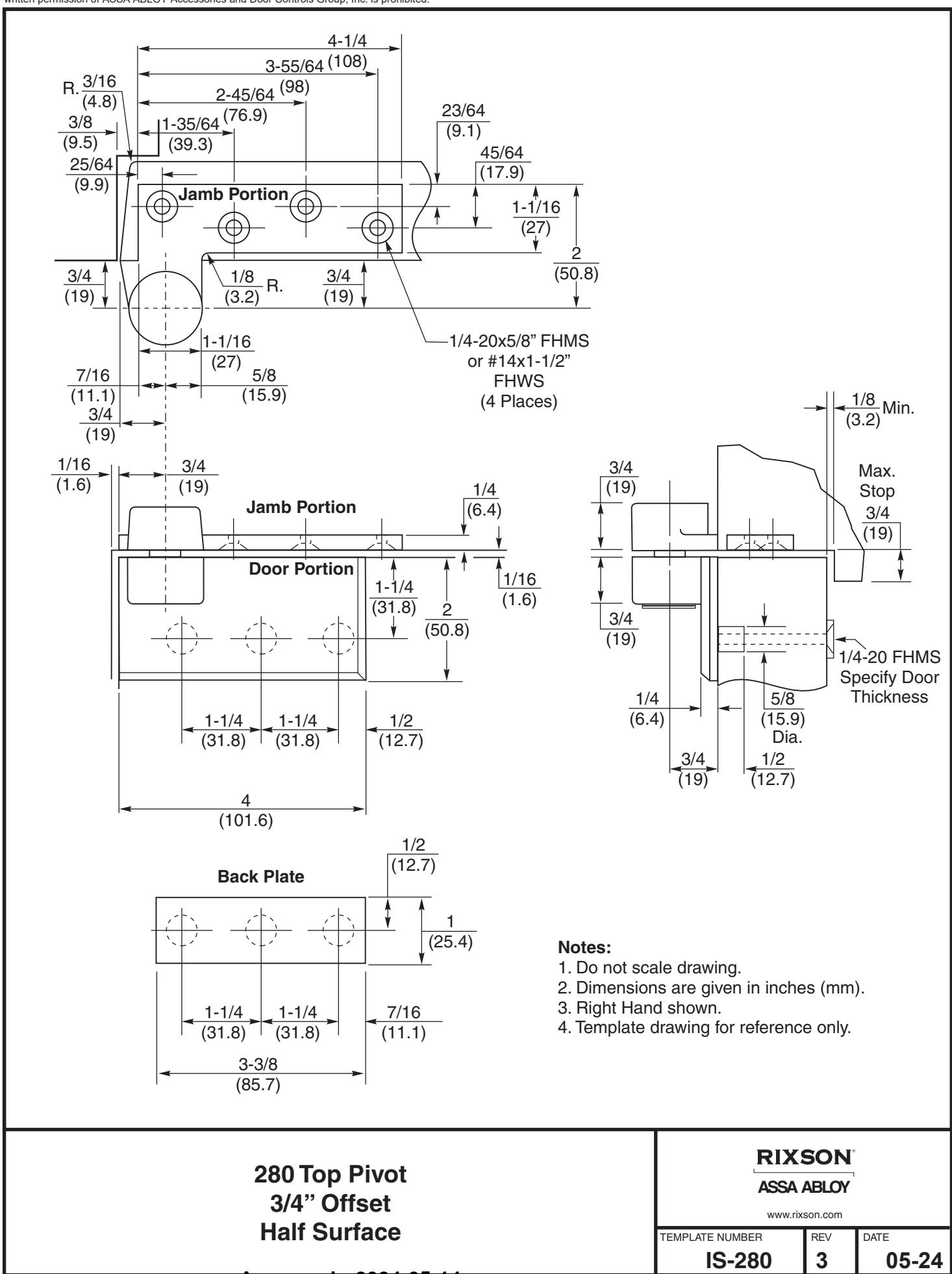

• D. Install top pivot in door per template.
• E. Install top pivot in frame per template.

2

2. Hang Door

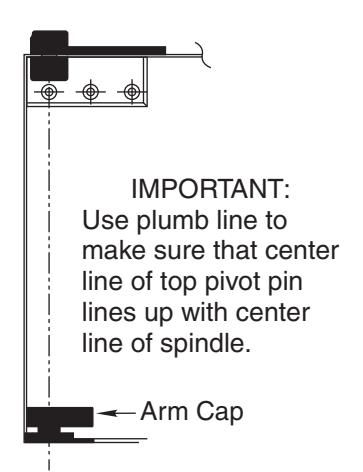

A. Set door on bottom pivot/closer spindle.

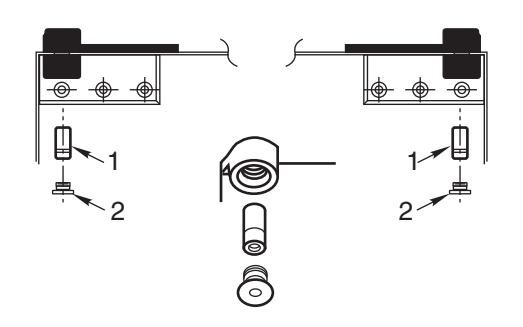

B. Push Item 1 "top pivot pin" into place. Attach "cap" Item 2. CAP MUST BE TIGHTENED SECURELY

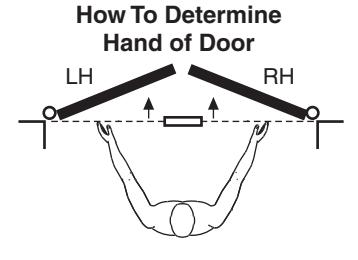

Face a door swinging open away from you. If it opens to the right, it is right hand. If it opens to the left, it is left hand.

280 Top Pivot 3/4" Offset Half Surface
