27 1-1/2 Floor Closer

1-1/2" Offset Pivoted - Handed 180 1-1/2" Top Pivot - Non Handed Installation Instructions

27 1-1/2 Floor Closer

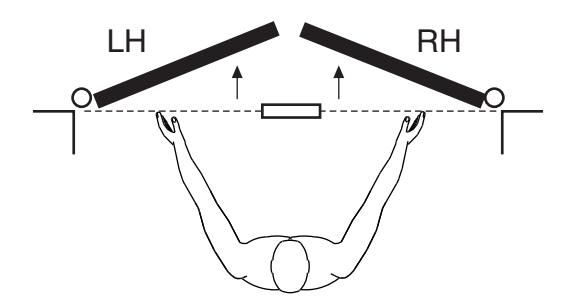

How To Determine Hand of Door

Face a door swinging open away from you. If it opens to the right, it is right hand. If it opens to the left, it is left hand.

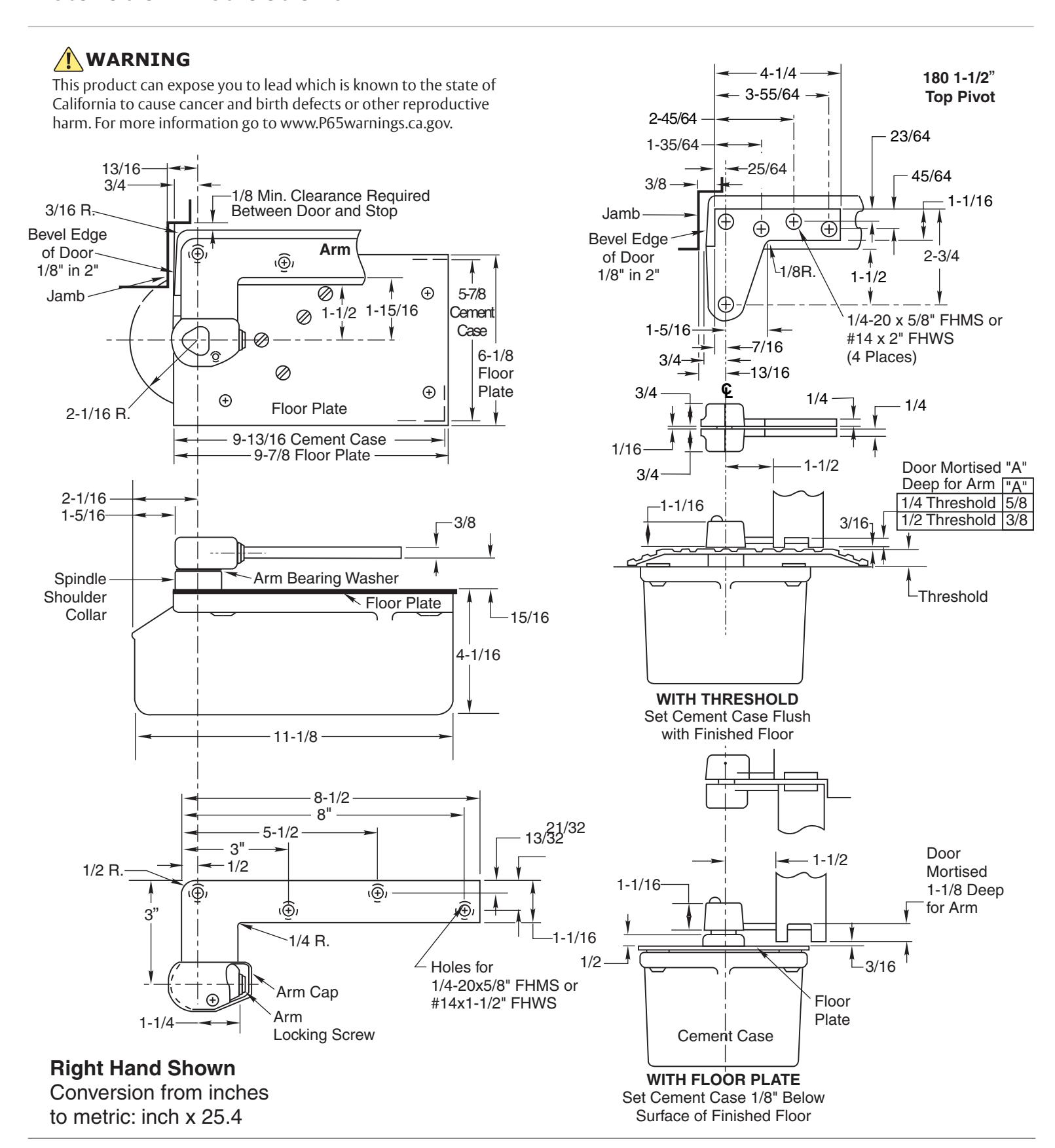

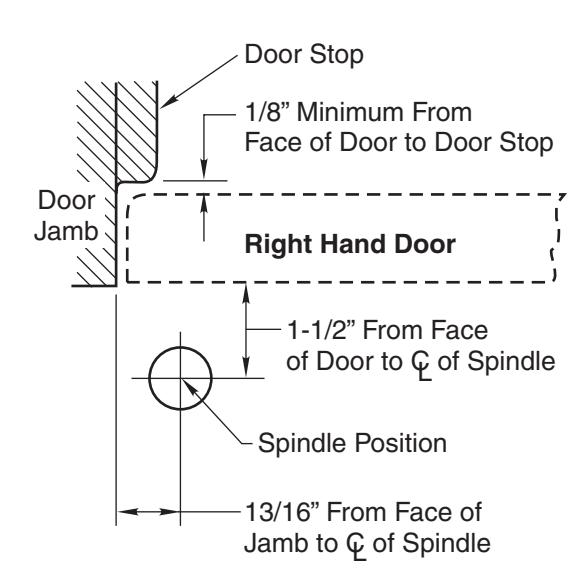

1. Locating Closer

For accurate installation see your dealer for a 185 Quickspotter Kit.

• A. Measure 13/16" out from door jamb.
• B. Allow 1/8" minimum clearance from door stop to door face. Measure door thickness. Add 1/2".
• C. Where lines meet determines center line of closer.

2. Install Cement Case in Floor

• A. For floor plate application: Cement case is set 1/8" (3.2mm) below floor level.
• B. For threshold application: Cement case is set flush with floor.
• C. Set cement case in floor and block in position.
• D. Case should be parallel with center line of door.

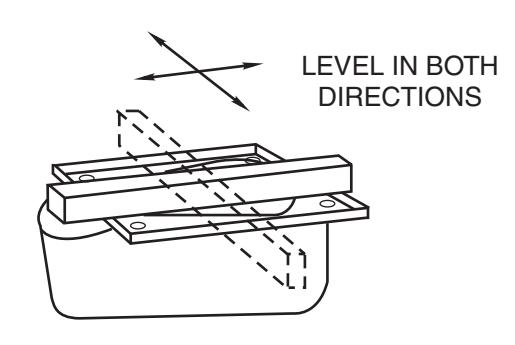

• E. CEMENT CASE SHOULD BE LEVEL. Place levels per Illustration.
• F. Grout in cement case with closer. Cement should not get between closer and case.

3. Install Top Pivot & Closer Arm

• A. Install top pivot in door per template.
• B. Install top pivot in frame per template.

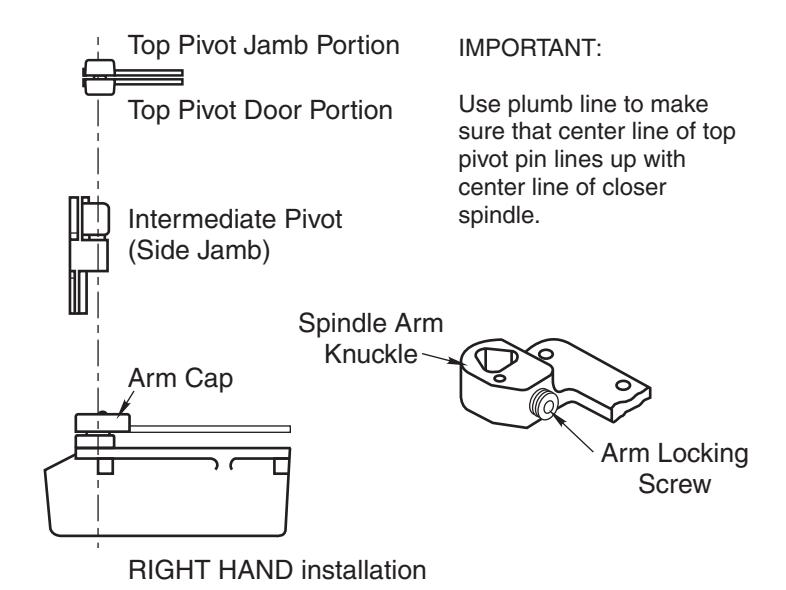

• C. Center line of pivot should line up with center line of closer. Use plumb line as illustrated.
• D. If side pivot is used, see template for intermediate pivot.
• E. Install door closer arm in bottom of door per template.

27 1-1/2 Floor Closer

4. Hang Door

Right Hand Shown

CAUTION: Closer is shipped with Closing Speed valve down. DO NOT FORCE VALVE DOWN.

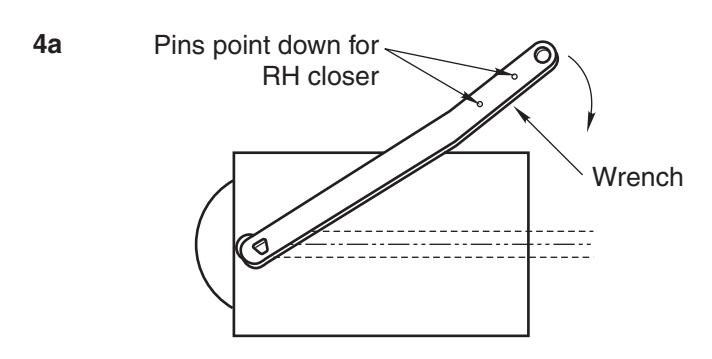

• A. Close down Latch Speed valve. Using wrench, turn spindle until wrench is parallel with center line of closer. (Illustration 4a)
• B. Insert arm bearing washer over spindle then set door on closer spindle. DO NOT FORCE DOOR CLOSED WHILE "CLOSING SPEED" VALVE IS TURNED DOWN.

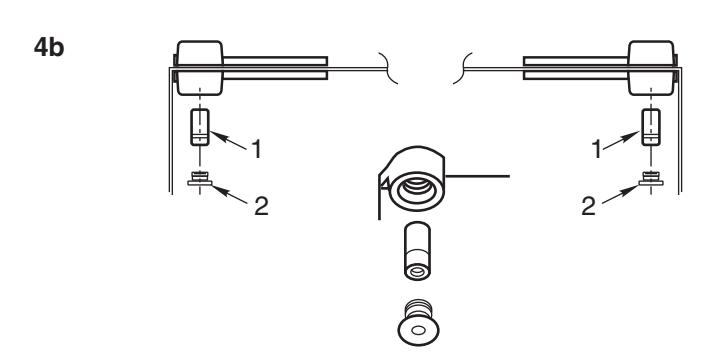

• C. Push item 1 "top pivot pin" into place. Attach "cap" item 2. (Illustration 4b) CAP MUST BE TIGHTENED SECURELY.
• D. Close door to 60° or more and turn Closing Speed valve screw counterclockwise. Door will then close.
• E. Open Closing Speed valve (counterclockwise) one turn. To increase (speed up) closing, open Latch Speed valve (ccw) one turn.

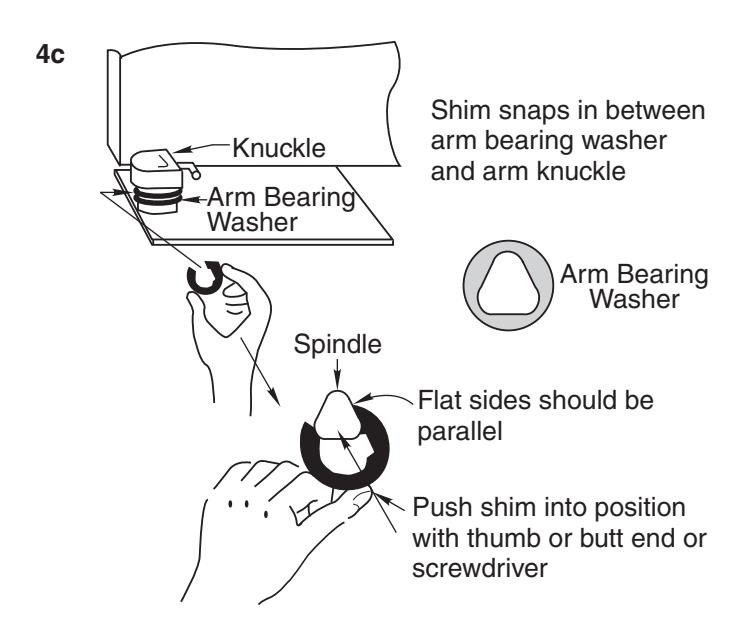

• F. If door drags at floor (or threshold, if used), raise door to desired clearance and insert one or more 1/16" shims. (Illustration 4c) See M19 Installation sheet to lift door for shimming.
• G. While working door back and forth TIGHTEN ARM LOCKING SCREW SECURELY with wrench furnished.
• H. Put arm cap on closer spindle and secure TIGHTLY with cap screw furnished.
• I. Adjust closing and latch speeds as required for proper closing.

The ASSA ABLOY Group is the global leader in access solutions. Every day we help people feel safe, secure and experience a more open world.

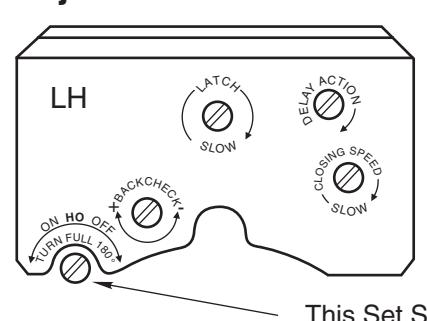

Closer Adjustment

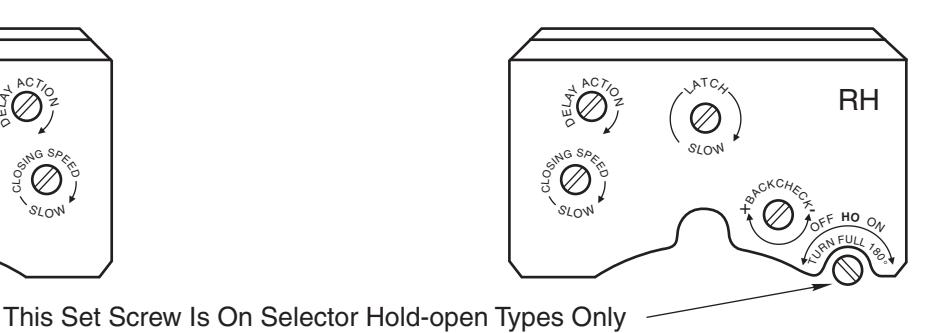

Closing speeds can be adjusted to suit local conditions and requirements. Label on closer face designates the purpose of each adjustment screw. Adjustments are for speed control.

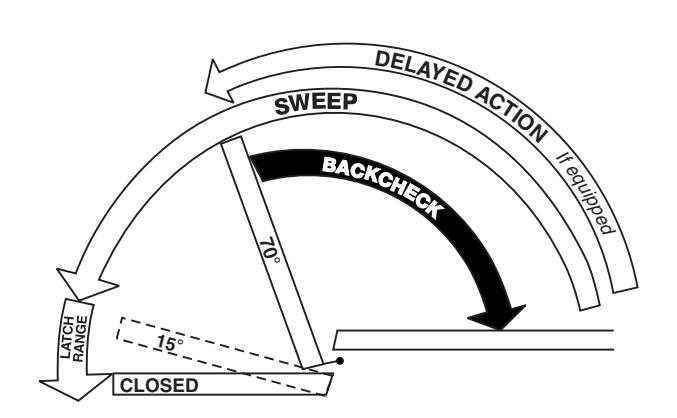

• A. The Delay Action valve allows adjustment from full open to 65° closed position. (Optional)
• The Closing Speed valve allows adjustment from full open to 15° on units without the Delay Action feature.
• C. The Closing Speed valve allows adjustment from 65° to 15° closed position on closers with Delay Action feature.
• Latch valve allows adjustment from 15° to closed position.
• E. Important: Backcheck adjustment must be adjusted to vary resistance from light to firm at 60° of door open. Do not use Backcheck as deadstop. This is an intensity valve not speed control.

Closer Type

This closer is one of three types as follows:

• Non hold-open factory set. No hold-open adjustments.
• Automatic hold-open factory set. No hold-open adjustment.
• Selective (on-off) hold-open label will indicate position of on-off selector screw. When turned "on", closer has automatic hold-open: turned "off", hold-open will not function. Turn full 180°.

Spring Power Adjustments

This closer can be adjusted for increased or decreased spring power.

These adjustments if required should be done by an authorized repair agency.

Repairs, parts replacement or internal adjustments must be done by a Norton Rixson authorized repair agency. Consult NortonRixson.com for an authorized repair agency in your area.

Technical Product Support: Monroe, NC 28112 USA Phone: 800.438.1951 ext: 6030
