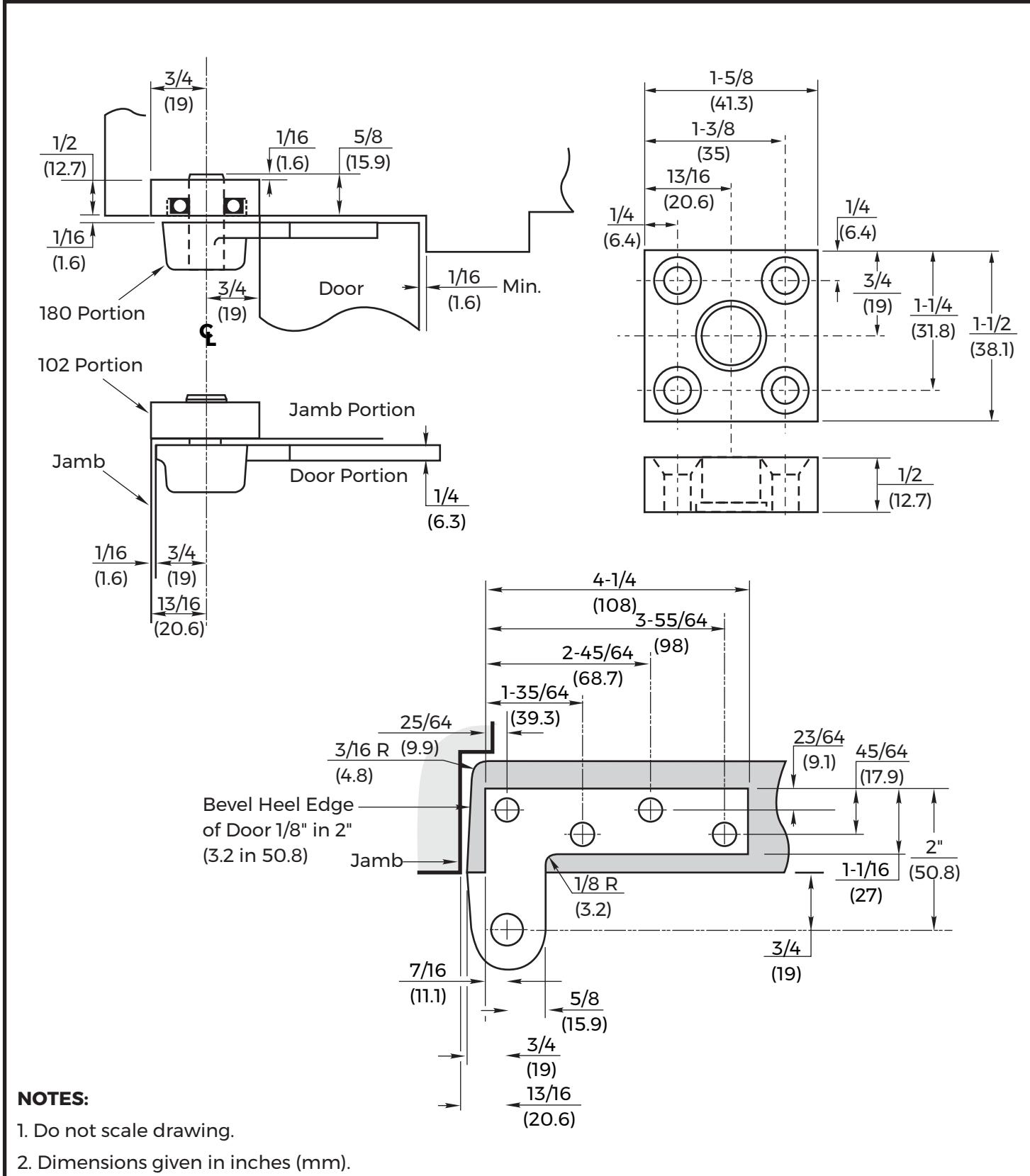

3. Minimum backset or reveal of door is 1-5/8" (41.3)

180 x 102 Top Pivot For Deep Reveal

NORTON ASSA ABLOY

TEMPLATE NUMBER

IS-180x102

3 05/24

Approved 2024-06-06

180 x 102 Top Pivot

IMPORTANT:

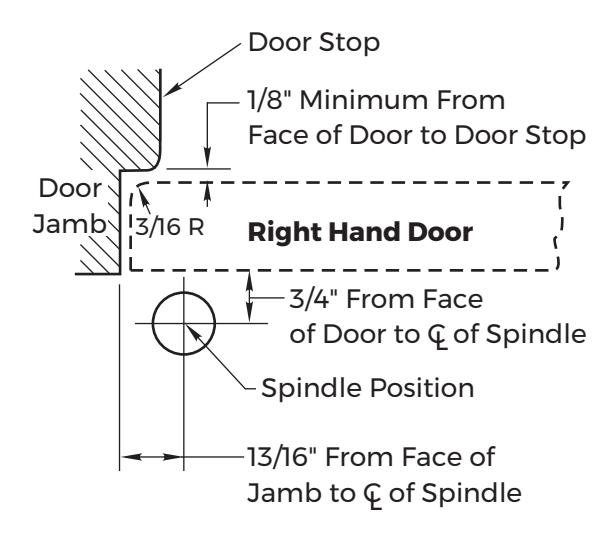

Use plumb line to make sure that center line of top pivot pin lines up with center line of closer/pivot spindle.

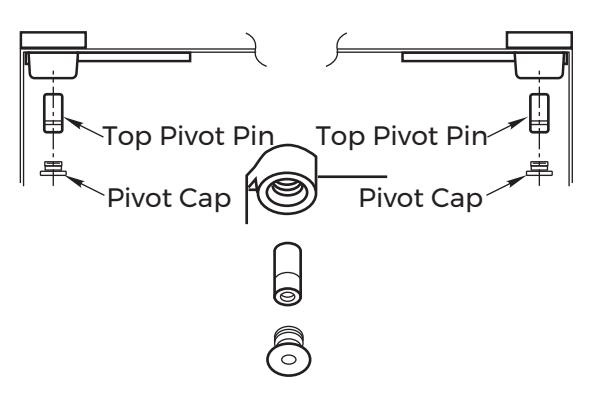

Location Attachment

• 1. Attach door leaf of top pivot to door.
• 2. Attach jamb leaf of top pivot to frame.
• 3. If side jamb pivot is used, see required template for instructions.
• 4. Push top pivot pin into place. Tighten set screw.
• 5. Attach pivot cap. CAP MUST BE TIGHTENED SECURELY.

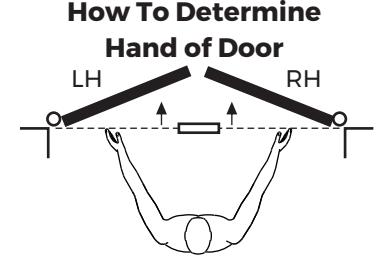

Face a door swinging open away from you. If it opens to the right, it is right hand. If it opens to the left, it is left hand.

180 x 102 Top Pivot For Deep Reveal

TEMPLATE NUMBER REV IS-180x102 05/24

3 DATE

Approved 2024-06-06
