Norton Rixson 180, H180 Top Pivots, 3, 4 Offset Template_TP40000
Open the original PDF document
View PDF

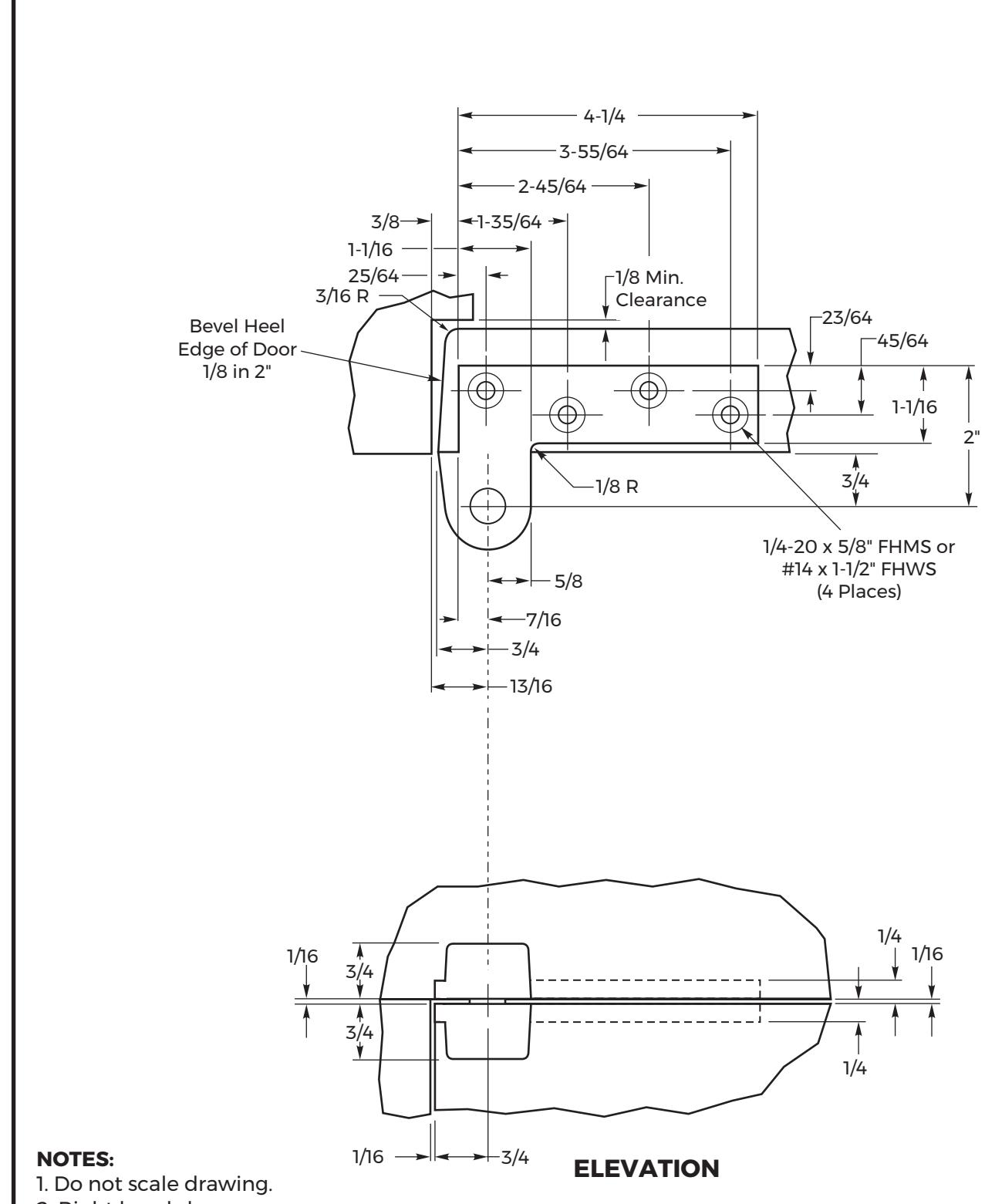

- 2. Right hand shown.
- 3. All dimensions are in inches. Conversion to metric = inch x 25.4.
- 4. Template drawing for reference only.
Top Pivots 180 & H180 3/4" Offset
RIXSON
ASSA ABLOY
TEMPLATE NUMBER TP40000
3 12/23
Approved 2023-12-15
