Norton Rixson 180, H180, F180 Top Pivot, 3, 4 Offset, Non-Handed Installation Instructions_IS-180-H180-F180
Open the original PDF document
View PDF
Notes:
- 1. Do not scale drawing.
- 2. Dimensions are given in inches (mm).
- 3. Pivot drilled for 1/4-20 x 5/8" FHMS or #14 x 1-1/2" FHWS.
- 4. Right hand shown.

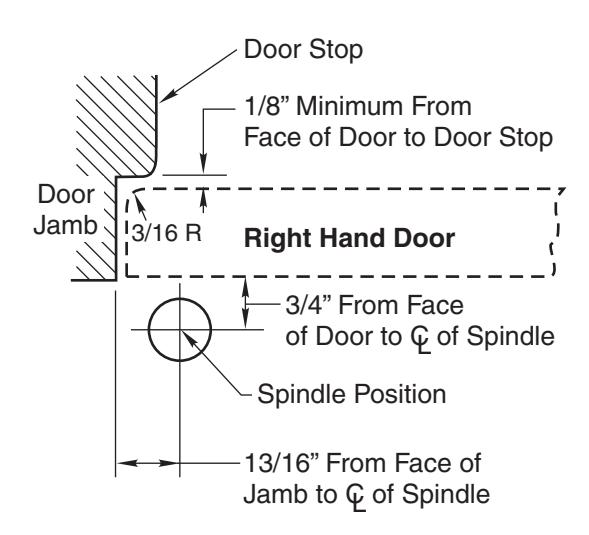

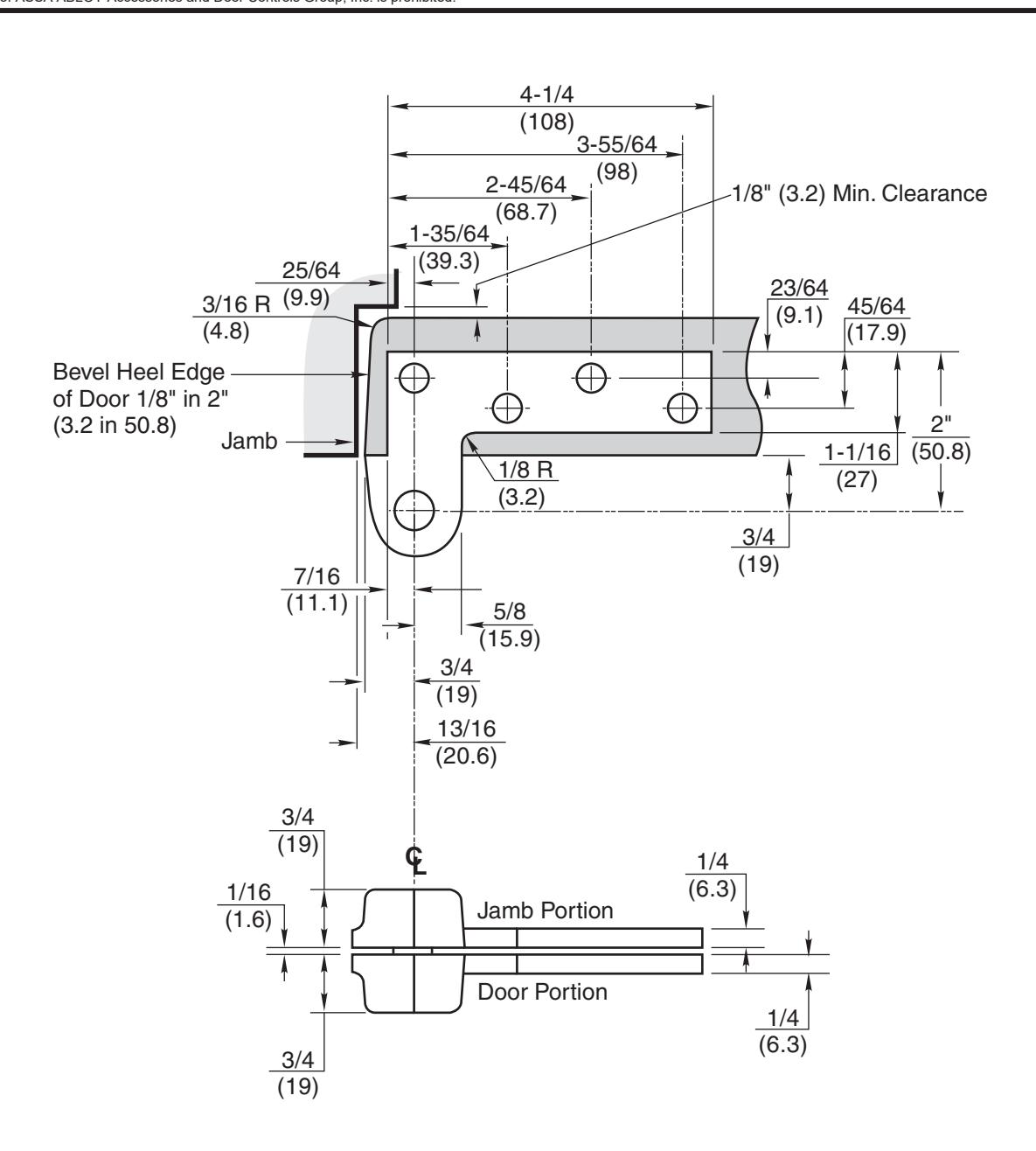

- 5. Template drawing for reference only.
|
180, H180, F180
Top Pivot 3/4" Offset Non Handed |
ASSA AB | RIXSON° ASSA ABLOY www.rixson.com | ||
|---|---|---|---|---|
| TEMPLATE NUMBER | REV | DATE | ||
| IS-180/H180/F180 | 3 | 05-24 | ||
| Approved 2024-05-14 | ||||

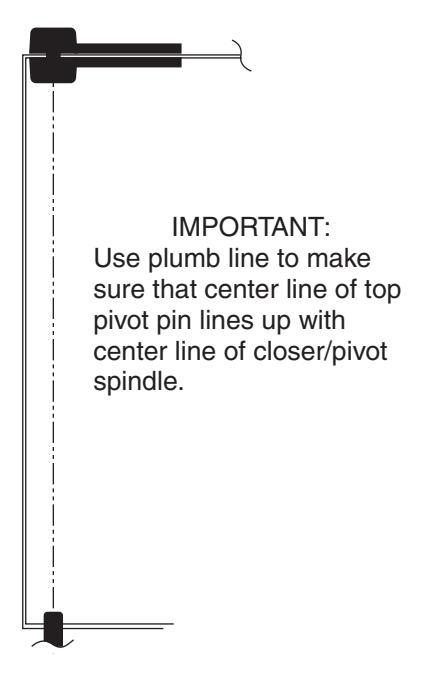

180/H180/F180 Top Pivot
Location Attachment
- 1. Attach door leaf of top pivot to door.
- 2. Attach jamb leaf of top pivot to frame.
- 3. If side jamb pivot is used, see required template for instructions.

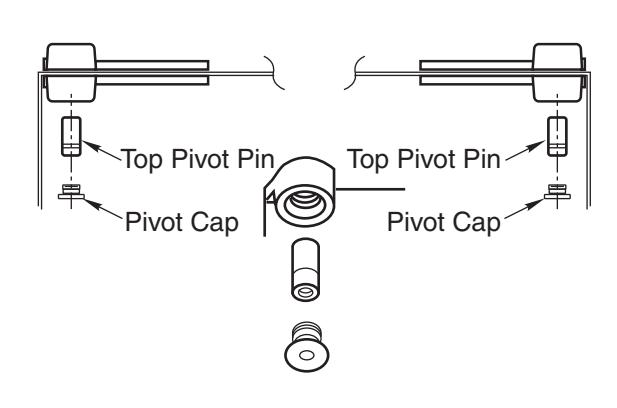

- 4. Push top pivot pin into place.
- 5. Attach pivot cap. CAP MUST BE TIGHTENED SECURELY.
How To Determine Hand of Door
Face a door swinging open away from you. If it opens to the right, it is right hand. If it opens to the left, it is left hand.
