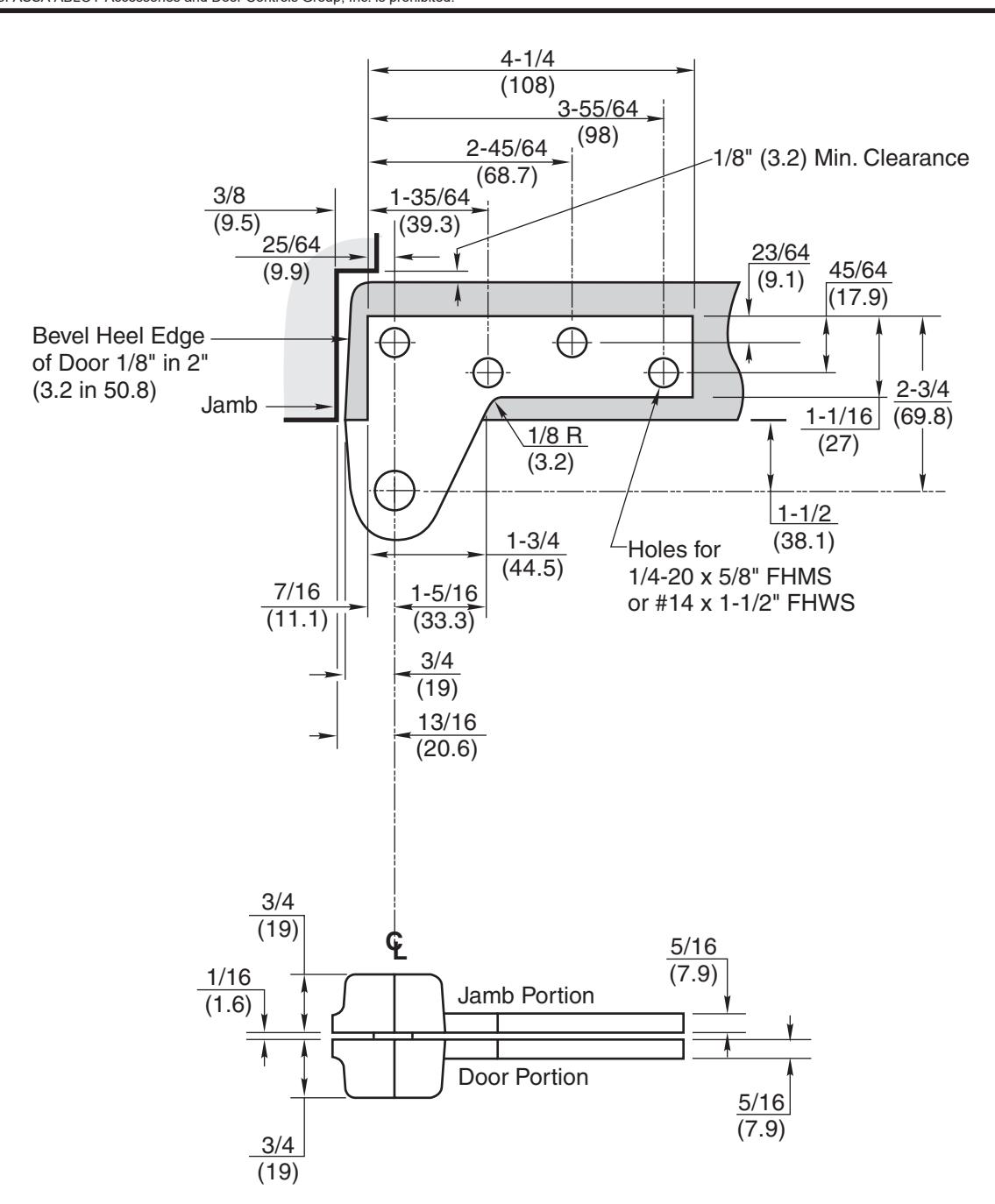

Notes:

• 1. Do not scale drawing.
• 2. Dimensions are given in inches (mm).
• 3. Pivot drilled for 1/4-20 x 5/8" FHMS or #14 x 1-1/2" FHWS.
• 4. Right hand shown.
• 5. Template drawing for reference only.

180, H180, F180 Top Pivot 1-1/2" Offset Non Handed	RIXSO	RIXSON ASSA ABLOY
	TEMPLATE NUMBER IS-180 x 1.5	REV	DATE 05-24
Approved 2024-05-14

180/H180/F180 Top Pivot 1-1/2" Offset

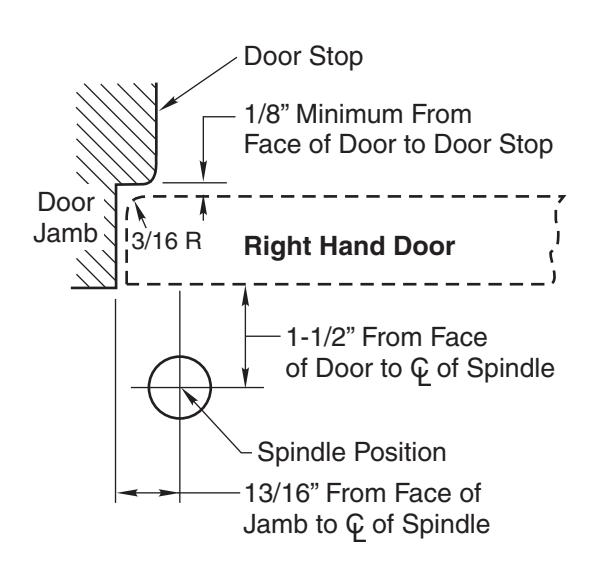

Location

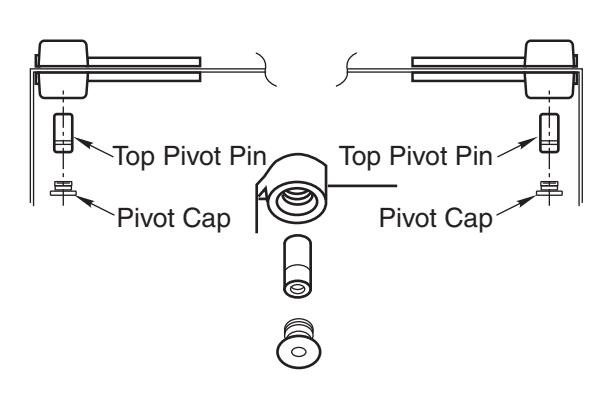

Attachment

• 1. Attach door leaf of top pivot to door.
• 2. Attach jamb leaf of top pivot to frame.
• 3. If side jamb pivot is used, see required template for instructions.

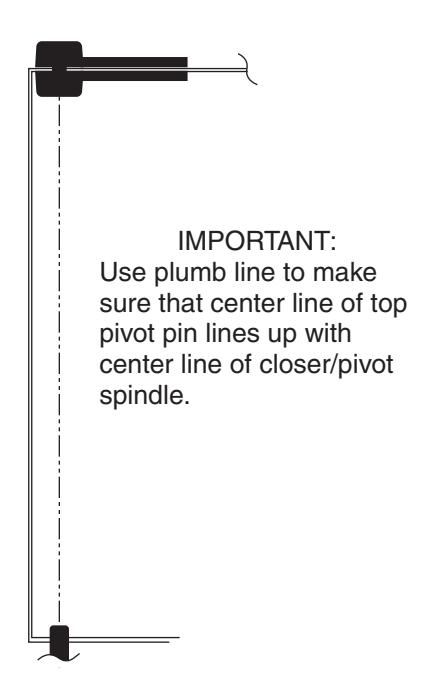

• 4. Push top pivot pin into place.
• 5. Attach pivot cap. CAP MUST BE TIGHTENED SECURELY.

How To Determine Hand of Door

Face a door swinging open away from you. If it opens to the right, it is right hand. If it opens to the left, it is left hand.

180, H180, F180 Top Pivot 1-1/2" Offset Non Handed

RIXSON° ASSA ABLOY

www.rixson.com

TEMPLATE NUMBER

DATE 3 05-24

IS-180 x 1.5 3 0

Approved 2024-05-14
