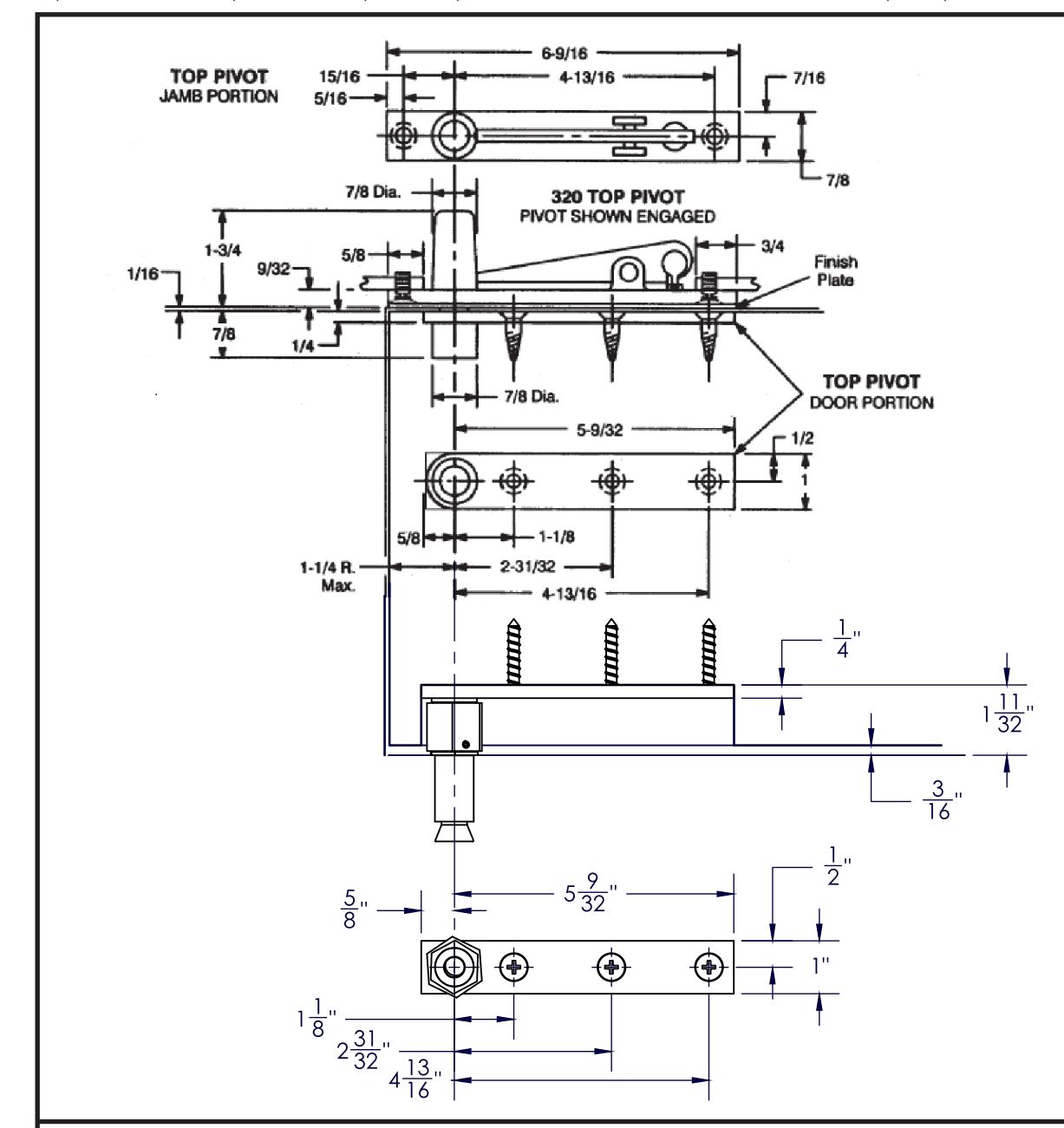

Norton Rixson 176 Pivot Set, Center Hung Template_PS30750

Notes:

• Do not scale drawing. Right hand shown.
• It is the door and frame manufacturers' responsibility to check the hardware schedule and prepare the doors and frames.
• Pivots drilled for 1/4-20 x 3/4" FHMS or #14 x 1-1/2" FHWS.
• Suitable reinforcing by others. All dimensions are in inches. 5.

176 Pivot Set Center Hung

RIXSON

ASSA ABLOY

TEMPLATE NUMBER PS30750

REV DATE 2

11/23
