Norton Rixson 1600 Series Door Closer,UNI-J1600,UNI-J1600H,Top Jamb Application,Non-Hold Open or Hold Open Templ…_7316-2402
Open the original PDF document
View PDF

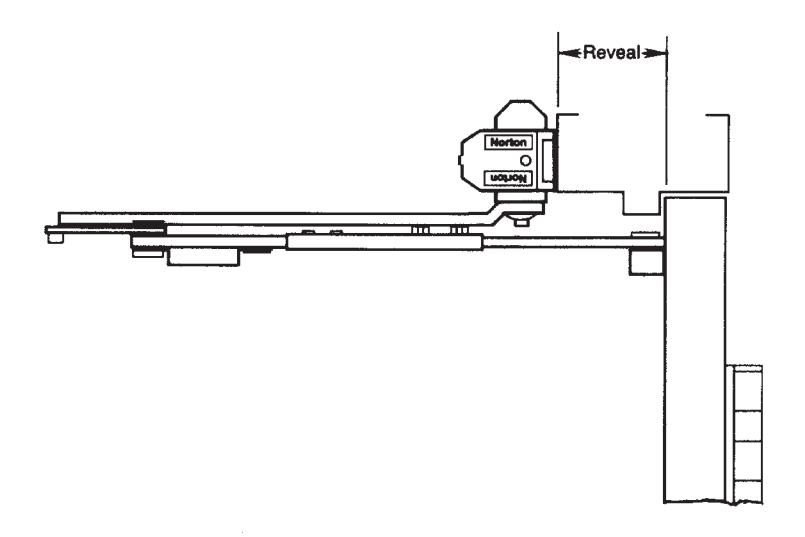

| Opening | Dim A | ||
|---|---|---|---|
| Hold Open ★ | Stop | Dim. A | |
| 85° | 90° | 9-1/8 | |
| 90° | 95° | 8-3/8 | |
| 95° | 100° | 7-3/4 | |
| 100° | 105° | 7-3/8 | |
| 105° | 110° | 6-3/4 | |
| 110° | 115° | 6-1/2 | |
| inches | mm. | inches | mm. |
|---|---|---|---|
| 1/2 | 13 | 6-3/4 | 171.5 |
| 3/4 | 19 | 7-3/8 | 187 |
| 2 | 51 | 7-3/4 | 196.5 |
| 3-3/4 | 95 | 8-3/8 | 212.5 |
| 4-1/8 | 104.5 | 9-1/16 | 230 |
| 6-1/2 | 165 | 9-1/8 | 232 |
| Fastener | Frame | Door | Drill |
|---|---|---|---|
| 1/4-20 machine screw | metal | none |
#7 (.201)
or 5.10mm
. drill
1/4-20 tap |
| #14 type "A" sheet metal screw | wood | none | 7/32" (5.5mm) |
| SNB | none | hollow-metal |
9/32" (7.00mm.) thru
3/8"(9.50mm.) door face opposite to closer |
|
aluminum
or wood |
3/8" (9.50mm.) thru |

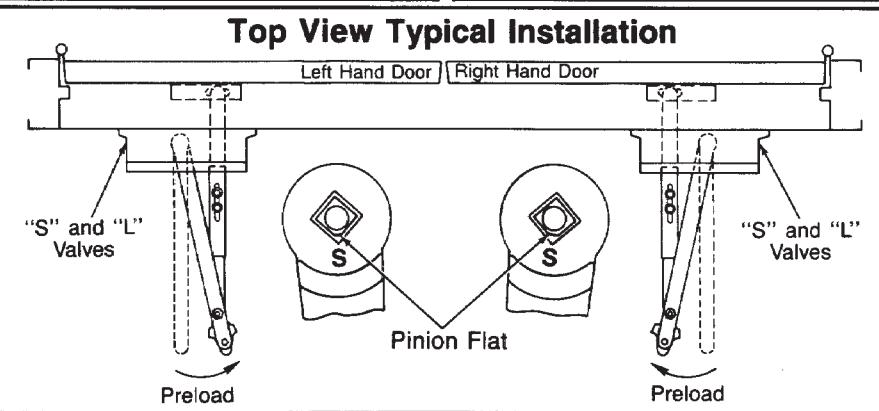

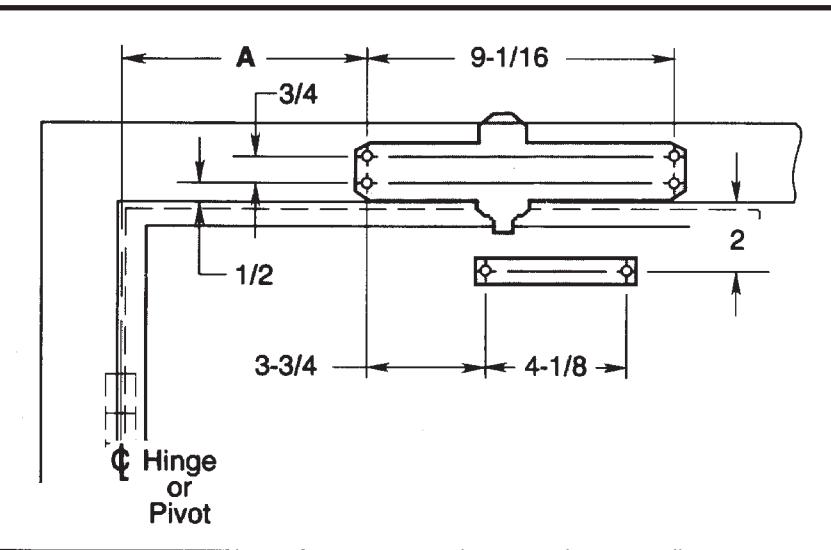

UNI-J1600 or UNI-J1600H Series Unitrol Door Closers Top Jamb Application Non Hold Open or Hold Open Arm - All Arms With Spring Cushioned Stop Individually Sized Units 3 and 4 & Multi-size Unit 1-6
NORTON RIXSON
TEMPLATE NUMBER REV
4 DATE 7316-2402 12/21
