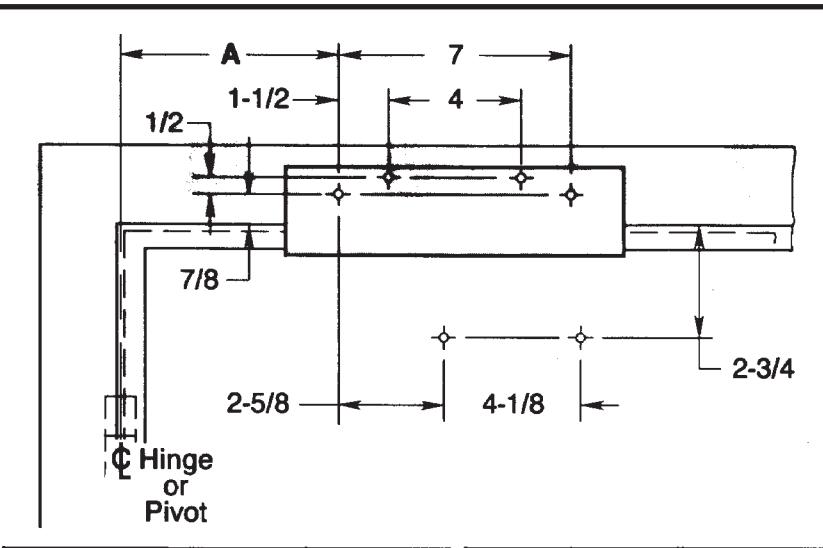

| Openin | Dim A | ||
|---|---|---|---|
| Hold Open ★ | Stop | Dim. A | |
| 85° | 90° | 10-1/8 | |
| 90° | 95° | 9-3/8 | |
| 95° | 100° | 8-3/4 | |
| 100° | 105° | 8-3/8 | |
| 105° | 110° | 7-3/4 | |
| 110° | 115° | 7-1/2 | |
| 1 | inches | inches mm. inch | mm. | |
|---|---|---|---|---|
| 1/2 | 13 | 7 | 178 | |
| 7/8 | 22 | 7-1/2 | 190.5 | |
| 1-1/2 | 38 | 7-3/4 | 196.5 | |
| 2-5/8 | 66.5 | 8-3/8 | 212.5 | |
| 2-3/4 | 70 | 8-3/4 | 222 | |
| 4 | 101.5 | 9-3/8 | 238 | |
| 4-1/8 | 104.5 | 10-1/8 | 257 | |
| Fastener | Frame | Door | Drill |
|---|---|---|---|
| 1/4-20 machine screw | metal | none |
#7 (.201) or 5.10mm. drill
1/4-20 tap |
| #14 type "A" sheet metal screw | wood | none | 7/32" (5.5mm) |
| SNB | none | hollow-metal | 9/32" (7.00mm.) thru 3/8" (9.50mm.) door face opposite to closer |
|
aluminum
or wood |
3/8" (9.50mm.) thru |

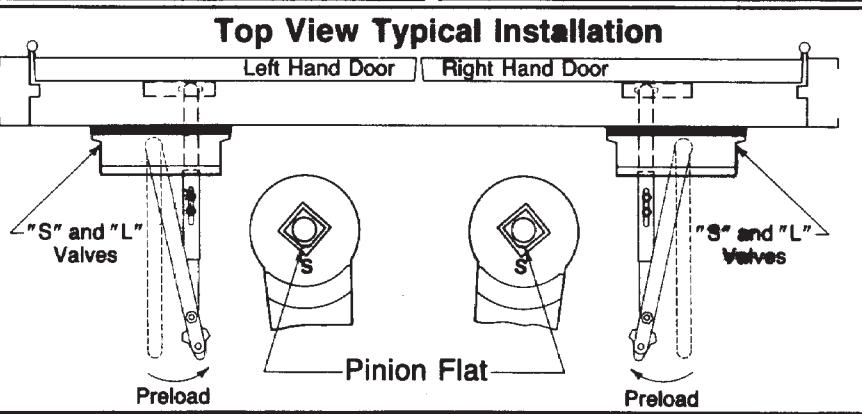

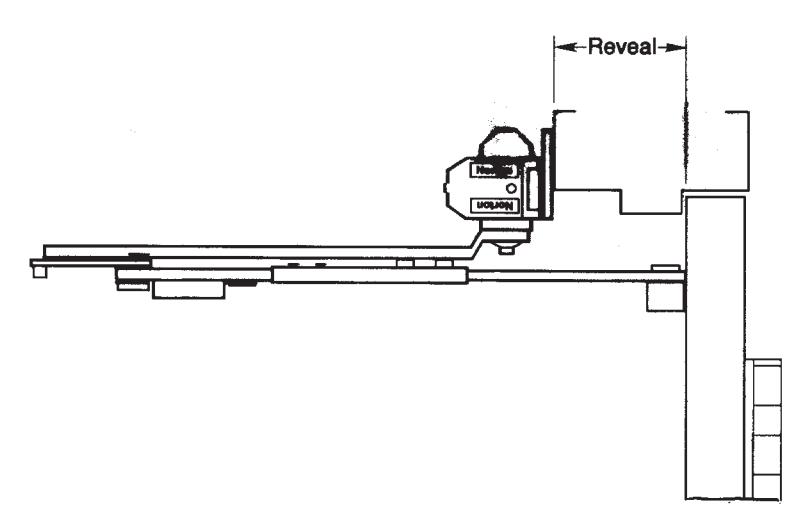

UNI-J1600 or UNI-J1600H Series Unitrol Door Closers Top Jamb Application With 1687 Drop Plate Non Hold Open or Hold Open Arm - All Arms With Spring Cushioned Stop Individually Sized Units 3 and 4 & Multi-size Unit 1-6
NORTON RIXSON
TEMPLATE NUMBER REV
4 DATE 7316-2404 12/21
Approved 2022-02-25
