| Opening | Di- A | Dim D | Di O | ||
|---|---|---|---|---|---|
| Hold Open ★ | Stop | Dim. A | Dim. B | Dim. C | |
| 85° | 90° | 15-1/8 | 13-1/4 | 14-1/4 | |
| 90° | 95° | 14-3/8 | 12-1/2 | 13-1/2 | |
| 95° | 100° | 13-3/4 | 11-7/8 | 12-7/8 | |
| 100° | 105° | 13-1/8 | 11-1/4 | 12-1/4 | |
| 105° | 110° | 12-5/8 | 10-3/4 | 11-3/4 | |
| 110° | 115° | 12-1/8 | 10-1/4 | 11-1/4 | |
| inches | mm. | inches | mm. | inches | mm. |
|---|---|---|---|---|---|
| 1/2 | 13 | 9-1/16 | 230 | 12-7/8 | 327 |
| 3/4 | 19 | 10-1/4 | 260 | 13-1/8 | 333 |
| 1-1/2 | 38 | 10-3/4 | 273 | 13-1/4 | 337 |
| 1-5/8 | 41 | 11-1/4 | 286 | 13-1/2 | 343 |
| 1-3/4 | 44.5 | 11-3/4 | 298 | 13-3/4 | 349 |
| 2-1/2 | 63.5 | 11-7/8 | 302 | 14-1/4 | 362 |
| 2-3/4 | 70 | 12-1/8 | 308 | 14-3/8 | 365 |
| 4 | 101.5 | 12-1/2 | 318 | 15-1/8 | 384 |
| 7 | 178 | 12-5/8 | 321 |

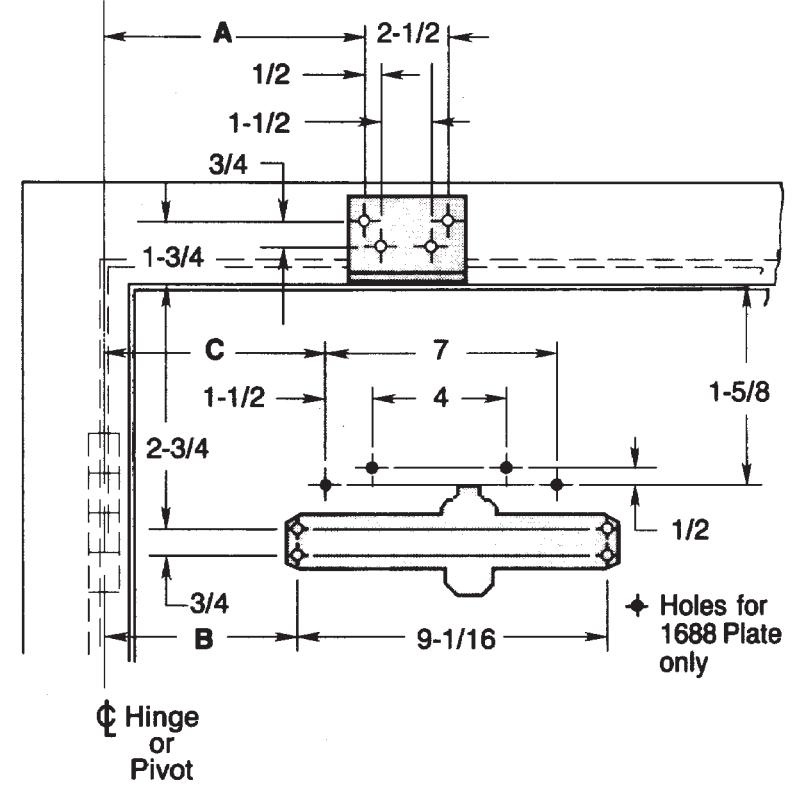

| Top View Typical Installation | ||||
|---|---|---|---|---|
| Left Hand Door Right Hand Door | ||||
|
"S" and "L'
Valves |
||||
| Pinion Flat | Pinion Flat | |||
| Fastener | Door or Frame | Drill |
|---|---|---|
| SNB | hollow-metal |
9/32" (7.00mm.) thru
3/8"(9.50mm.) door face opposite to closer |
| aluminum or wood | 3/8" (9.50mm.) thru |
UNI-1600 or UNI-1600H Series Unitrol Door Closers Parallel Arm Application for Doors 42" to 48" (1.05-1.20m) Wide With 2022 Flush Transom Bracket & With or Without 1688 Drop Plate Non Hold Open or Hold Open Arm - All Arms With Spring Cushioned Stop Individually Sized Units 3 and 4 & Multi-size Unit 1-6
TEMPLATE NUMBER REV
4 DATE
NORTON RIXSON
7316-2362 12/21
Approved 2022-02-25
