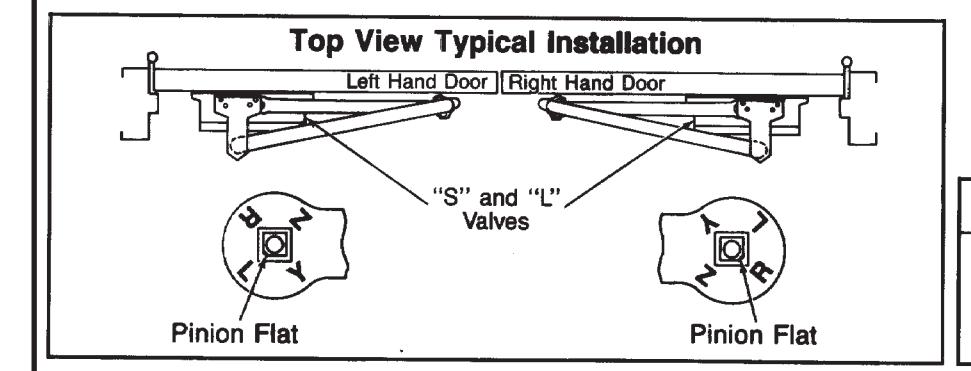

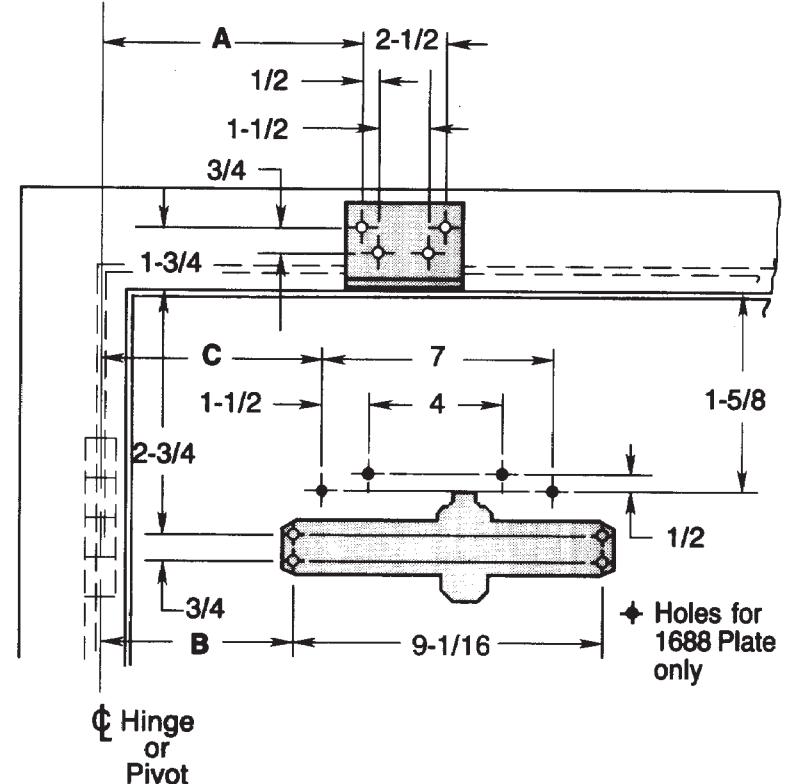

| Opening | Dim A | Dim D | ||||
|---|---|---|---|---|---|---|
| Hold Open ★ | Stop | Dim. A | טוש. B | Dim. C | ||
| 85° | 90° | 12-3/4 | 11 | 12 | ||
| 90° | 95° | 12-1/8 | 10-3/8 | 11-3/8 | ||
| 95° | 100° | 11-1/2 | 9-3/4 | 10-3/4 | ||
| 100° | 105° | 11 | 9-1/4 | 10-1/4 | ||
| 105° | 110° | 10-1/2 | 8-3/4 | 9-3/4 | ||
| 110° | 115° | 10-1/8 | 8-3/8 | 9-3/8 | ||
| inches | mm. | inches | mm. | inches | mm. |
|---|---|---|---|---|---|
| 1/2 | 13 | 8-3/8 | 213 | 10-1/2 | 267 |
| 3/4 | 19 | 8-3/4 | 222 | 10-3/4 | 273 |
| 1-1/2 | 38 | 9-1/16 | 230 | 11 | 279 |
| 1-5/8 | 41 | 9-1/4 | 235 | 11-3/8 | 289 |
| 1-3/4 | 44.5 | 9-3/8 | 238 | 11-1/2 | 292 |
| 2-1/2 | 63.5 | 9-3/4 | 248 | 12 | 305 |
| 2-3/4 | 70 | 10-1/8 | 257 | 12-1/8 | 308 |
| 4 | 101.5 | 10-1/4 | 260 | 12-3/4 | 324 |
| 7 | 178 | 10-3/8 | 263.5 |
| 7 178 | 10-3/8 263.5 | |||
|---|---|---|---|---|
| Fastener | Door or Frame | Drill | ||
| SNB | hollow-metal |
9/32" (7.00mm.) thru
3/8"(9.50mm.) door face opposite to closer |
||
| aluminum or wood | 3/8" (9.50mm.) thru | |||
UNI-1600 or UNI-1600H Series Unitrol Door Closers Parallel Arm Application for Doors 33" to 41" (0.85-1.0m) Wide With 2022 Flush Transom Bracket & With or Without 1688 Drop Plate Non Hold Open or Hold Open Arm - All Arms With Spring Cushioned Stop Individually Sized Units 3 and 4 & Multi-size Unit 1-6
RIXSON
NORTON
TEMPLATE NUMBER REV
7316-2361 12/21
4 DATE
Approved 2022-02-25
