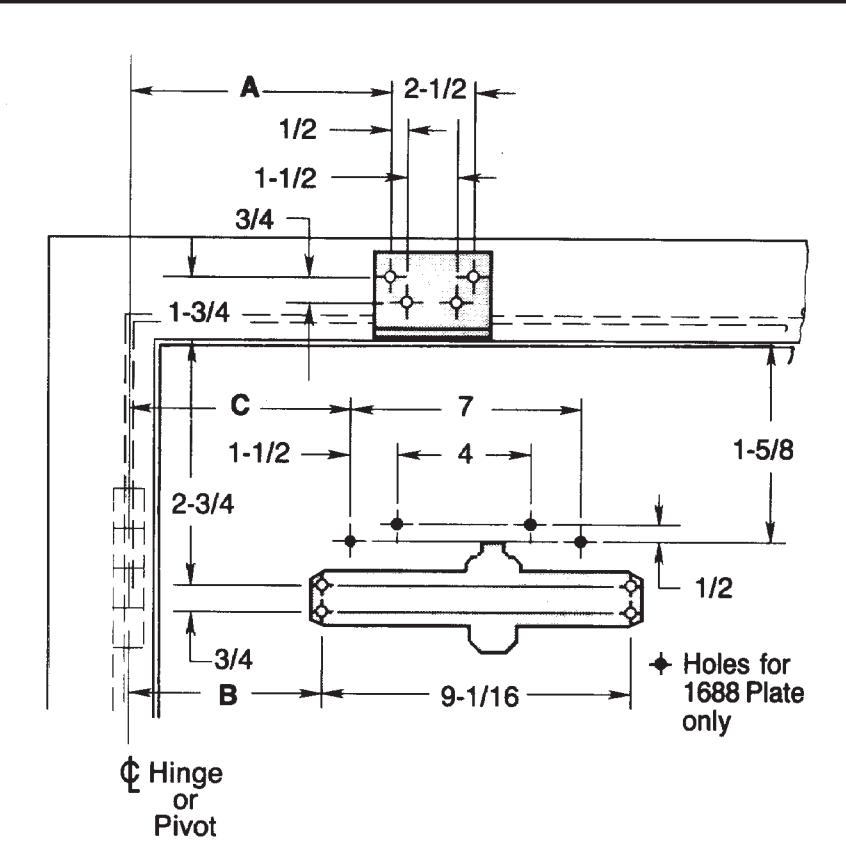

| Opening | Dim A | . | 5: 0 | |||
|---|---|---|---|---|---|---|
| Hold Open ★ | Stop | Dim. A | Dim. B | Dim. C | ||
| 85° | 90° | 10-5/8 | 8-5/8 | 9-5/8 | ||
| 90° | 95° | 9-7/8 | 8 | 9 | ||
| 95° | 100° | 9-3/8 | 7-1/2 | 8-1/2 | ||
| 100° | 105° | 9 | 7-1/8 | 8-1/8 | ||
| 105° | 110° | 8-5/8 | 6-3/4 | 7-3/4 | ||
| 110° | 115° | 8-1/4 | 6-3/8 | 7-3/8 | ||
| inches | mm. | inches | mm. | inches | mm. |
|---|---|---|---|---|---|
| 1/2 | 13 | 6-3/4 | 171 | 8-1/2 | 216 |
| 3/4 | 19 | 7 | 178 | 8-5/8 | 219 |
| 1-1/2 | 38 | 7-1/8 | 181 | 9 | 228.5 |
| 1-5/8 | 41 | 7-3/8 | 187 | 9-1/16 | 230 |
| 1-3/4 | 44.5 | 7-1/2 | 191 | 9-3/8 | 238 |
| 2-1/2 | 63.5 | 7-3/4 | 197 | 9-5/8 | 244 |
| 2-3/4 | 70 | 8 | 203 | 9-7/8 | 251 |
| 4 | 101.5 | 8-1/8 | 206 | 10-5/8 | 270 |
| 6-3/8 | 162 | 8-1/4 | 209.5 |
| Fastener | Door or Frame | Drill | |
|---|---|---|---|
| SNB | hollow-metal |
9/32" (7.00mm.) thru
3/8"(9.50mm.) door face opposite to closer |
|
| aluminum or wood | 3/8" (9.50mm.) thru | ||

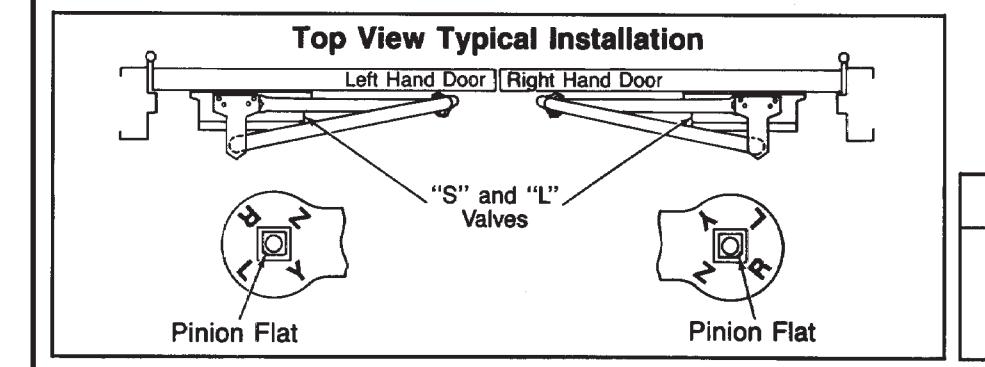

UNI-1600 or UNI-1600H Series Unitrol Door Closers Parallel Arm Application for Doors 28" to 32" (0.70-0.80m) Wide With 2022 Flush Transom Bracket & With or Without 1688 Drop Plate Non Hold Open or Hold Open Arm - All Arms With Spring Cushioned Stop Individually Sized Units 3 and 4 & Multi-size Unit 1-6
NORTON RIXSON
TEMPLATE NUMBER REV 7316-2360 12/21
4 DATE
Approved 2022-02-25
