Norton Rixson 1600 Series Door Closer,Regular Arm Applicaton,Non-Hold Open or Hold Open Template_7316-1102

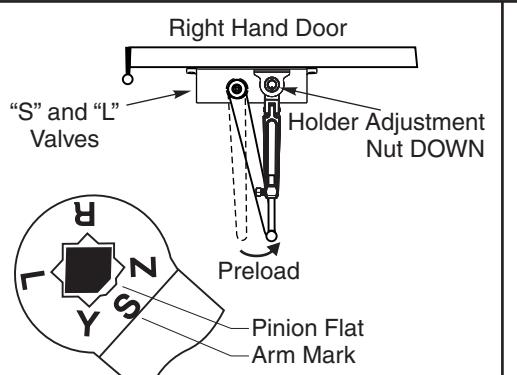

Position of Arm and Pinion Flat

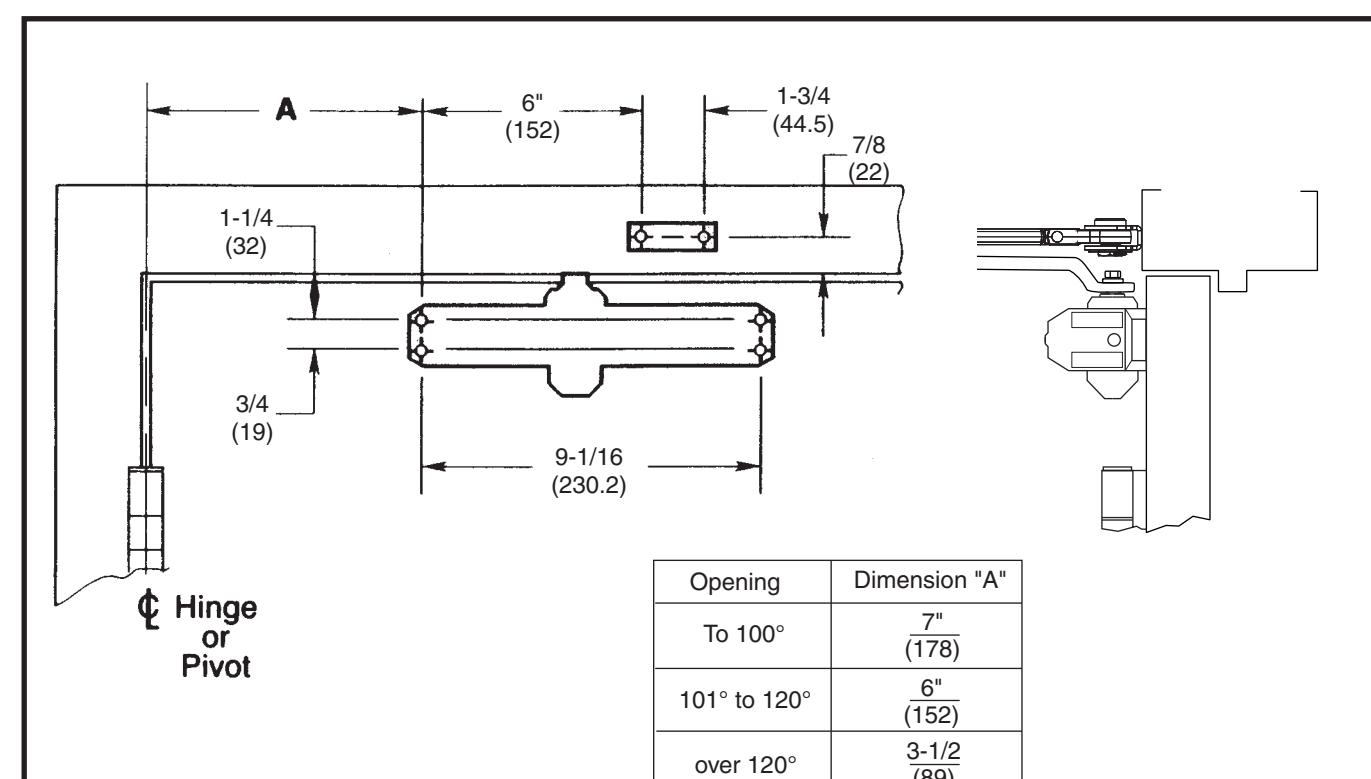

Notes:

• 1. Do not scale drawing.
• 2. Right hand door shown.
• 3. Dimensions given in inches (millimeters).
• 4. Door swing may be limited by door, frame, wall or hardware conditions.
• 5. Hollow metal doors require channel or box type reinforcement when thru-bolt mount is specified.
• 6. Sleeve nuts and bolts may be required for wood or plastic faced fire door mounting.
• 7. Minimum thickness recommended for reinforcements in hollow metal doors and frames: .1046" (2.66mm) unless otherwise noted.
• 8. Hold open arm door closers are not permitted to be used on fire doors.

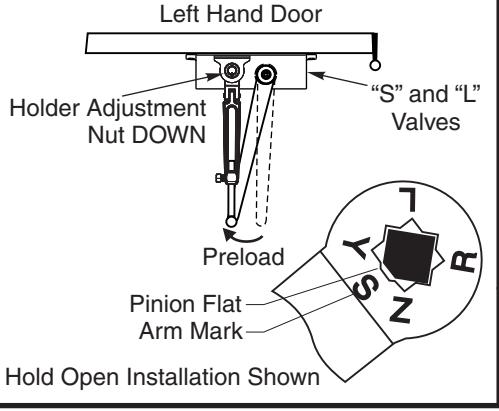

Hold Open Installation Shown

(89)

Fastener	Door or Frame	Drill
#14 type "A" sheet metal screw	wood	7/32" (5.5mm)
1/4-20 machine screw	metal	#7 (.201 dia.) or 5.10mm. drill 1/4"-20 tap
SNB (optional)	hollow-metal	9/32" (7.00mm.) thru 3/8"(9.50mm.) door face opposite to closer
	aluminum or wood	3/8" (9.50mm.) thru
TBGN (optional)	all	9/32"(7.00mm.) thru 3/8"(9.50mm.) diameter x 3/8" (10mm.) deep, door face opposite to closer

1600 Series Door Closer Regular Arm Application Non Hold Open or Hold Open Arm Individually Sized Units 3 and 4 and Multi-size Unit 1-6

TEMPLATE NUMBER REV

4 DATE 7316-1102 01/22

NORTON RIXSON

Approved 2022-02-25
