Norton Rixson 1600 Series Door Closer,Regular Arm Application with 2403 3, 4 Bracket,Non-Hold Open for Molded or …_7316-1110
Open the original PDF document
View PDF
| OPENING | DIM. A | |
|---|---|---|
| To 100° | 7 | |
| 100° to 120° | 6 | |
| Over 120° | 3-1/2 | |
| METRIC CONVERSION | |||||
|---|---|---|---|---|---|
| inches | mm. | inches | mm. | inches | mm. |
| 1/4 | 6.4 | 1-1/8 | 28.6 | 3-1/2 | 89 |
| 7/16 | 11.1 | 1-3/8 | 35 | 6 | 152 |
| 3/4 | 19.1 | 1-1/2 | 38.1 | 6-3/4 | 171 |
| 7/8 | 22.2 | 3 | 76.2 | 7 | 178 |
| 9-1/16 | 230.2 | ||||
| PREPARATION FOR FASTENERS | ||||||
|---|---|---|---|---|---|---|
| FASTENER | FASTENER DOOR or FRAME | |||||
| #14 type "A" sheet metal screw | wood | 7/32" (5.5mm) | ||||
| 1/4-20 machine screw | metal |
#7 (.201" dia.) or 5.10mm. drill
1/4-20 tap |
||||
|
SNB
(optional) |
hollow-metal |
9/32" (7.00mm.) thru
3/8" (9.50mm.) door face opposite to closer |
||||
| aluminum or wood | 3/8" (9.50mm.) thru | |||||
|
TBGN
(optional) |
all | 9/32" (7.00mm.) thru 3/8" (9.50mm.) diameter x 3/8" (10mm.) deep, door face opposite to closer | ||||

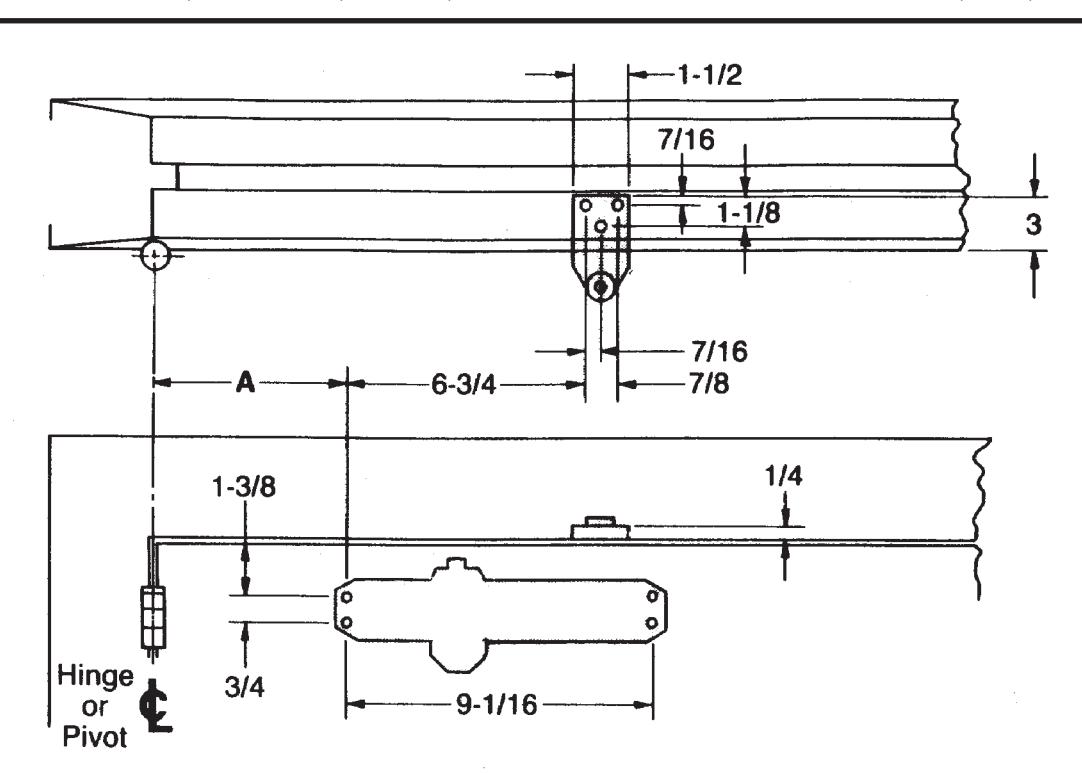

1600 Series Door Closers Regular Arm Application With 2403 3/4 Bracket Non Hold Open Arm for Molded or Bullnose Frame Individually Sized Units 3 and 4 & Multi-size Unit 1-6
NORTON RIXSON
TEMPLATE NUMBER REV
4 DATE 7316-1110 12/21
Approved 2022-02-25
