View PDFmm.
177.8
181
194
206
219
244
9-1/16 230.2
inches
3/8
3/4
1-3/8 1-1/2
7/16
mm.
9.5
11.1 12.7
19.1
34.9
38.1
inches
1-5/8
2-1/16
2-3/4
4-1/8
5-1/8
6-1/8
mm.
41
50.8
52.4
69.9
101.6
105
130
156
inches
7-1/8
7-5/8
8-1/8
8-5/8
9-5/8

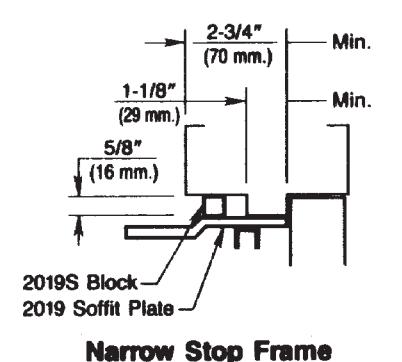

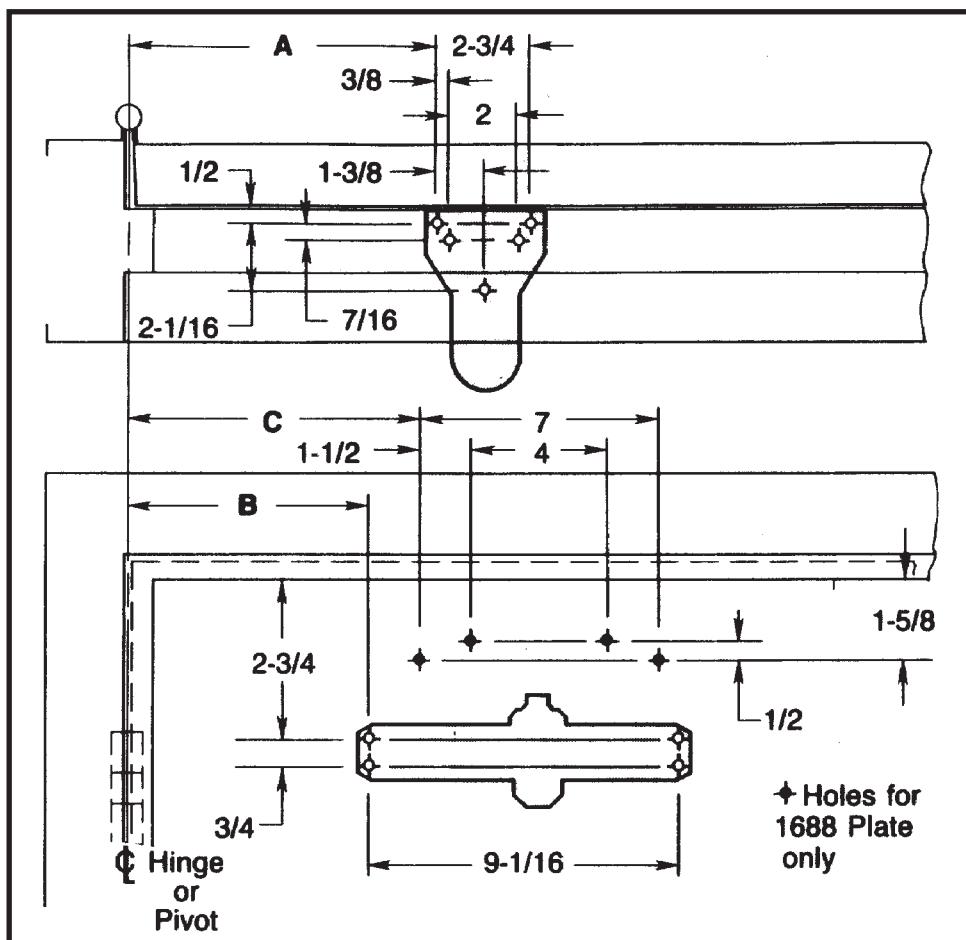

| Opening | Dim. A | Dim. B | Dim.C |
|---|---|---|---|
| To 100° | 9-5/8 | 7-5/8 | 8-5/8 |
| 100° to 130° | 8-1/8 | 6-1/8 | 7-1/8 |
| Over 130° | 6-1/8 | 4-1/8 | 5-1/8 |
Wide Stop Frame
Notes:
- Do not scale drawing.
- Left hand door shown.
- Dimensions are in inches. See conversion chart for metric dimensions.
Door swing may be limited by door, frame, wall or hardware conditions.
Hollow-metal doors require channel or box-type reinforcement when thru-bolt mount is specified.
Hold Open Arm door closers without Fusible-link release are not permitted to be used on fire doors.
Sex-bolts may be required for wood or plastic faced fire-door mounting.
Minimum thickness recommended for reinforcements in hollow-metal doors and frames: .1046" (2.66mm.) unless otherwise noted.
| Top View Typical Installation | ||||||
|---|---|---|---|---|---|---|
| ١ | Left Hand Door Right Hand Door | _ | ||||
| "S" and "L" | ||||||
| Valves | ||||||
| ı | Pinion Flat Hold Open Installation Shown | lat | ||||
| Fastener | Frame | Door | Drill |
|---|---|---|---|
| #14 type "A" sheet metal screw | wood | none | 7/32" (5.5mm) |
| 1/4-20 machine screw | metal | none |
#7 (.201 dia.) or 5.10mm. drill
1/4"-20 tap |
|
SNB
(optional) |
none |
hollow
metal |
9/32" (7.00mm.) thru
3/8" (9.50mm.) door face opposite to closer |
|
aluminum
or wood |
3/8" (9.50mm.) thru |
PR1600 or PR1600H Series Door Closers Parallel Rigid Arm Applications with or without 1688 Drop Plate Non Hold Open or Hold Open Arm Individually Sized Units 3 and 4 & Multi-sized Unit 1-6
NORTON RIXSON ASSA ABLOY
TEMPLATE NUMBER 7316-1252
Approved 2022-02-25
12/21
