Norton Rixson 1600 Series Door Closer,P1680 with Low Profile Arm,Parallel Arm Application with or without 1688 D…_7316-1206
Open the original PDF document
View PDF
| Opening | Dim. A | Dim. B | Dim.C |
|---|---|---|---|
| To 100° | 9-1/4 | 7-5/8 | 8-5/8 |
| 100° to 130° | 7-3/4 | 6-1/8 | 7-1/8 |
| Over 130° | 5-3/4 | 4-1/8 | 5-1/8 |
| inches | mm. | inches | mm. | inches | mm. |
|---|---|---|---|---|---|
| 2-1/4 | 57 | 7 | 177.8 | ||
| 3/8 | 9.5 | 2-3/4 | 69.9 | 7-1/8 | 181 |
| 7/16 | 11.1 | 4 | 101.6 | 7-5/8 | 194 |
| 1/2 | 12.7 | 4-1/8 | 105 | 7-3/4 | 197 |
| 1-1/8 | 28.6 | 5-1/8 | 130 | 8-5/8 | 219 |
| 1-1/2 | 38.1 | 5-3/4 | 146 | 9-1/16 | 230.2 |
| 2 | 50.8 | 6-1/8 | 156 | 9-1/4 | 235 |

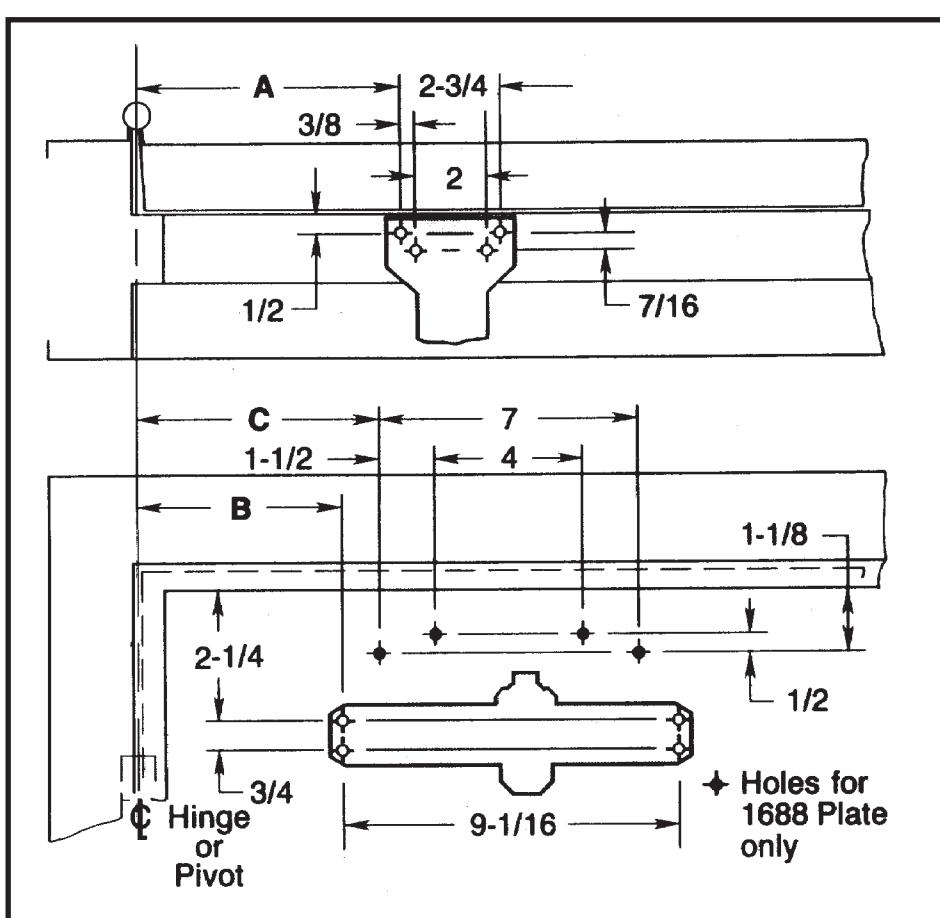

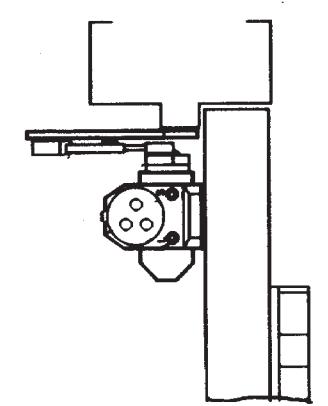

| Top View Typical Installation | ||||
|---|---|---|---|---|
| Left Hand Door | 1-1/2" (38mm.) | |||
| Pinion Flat | "S" and "L" Valves Pinion Flat | |||
| Fastener | Door or Frame | Drill | |
|---|---|---|---|
| #14 type "A" sheet metal screw | wood | 7/32" (5.5mm) | |
| 1/4-20 machine screw | metal |
#7 (.201 dia.) or 5.10mm. drill
1/4*20 tap |
|
|
SNB
(optional) |
hollow-metal |
9/32" (7.00mm.) thru
3/8"(9.50mm.) door face opposite to closer |
|
| aluminum or wood | 3/8" (9.50mm.) thru | ||
|
TBGN
(optional) |
all |
9/32" (7.00mm.) thru
3/8" (9.50mm.) diameter x 3/8" (10mm.) deep, door face opposite to closer |
|
(P)1680 Series Door Closers With Low Profile Arm Parallel Arm Application With or Without 1688 Drop Plate Non Hold Open Arm Individually Sized Units 3 and 4 & Multi-size Unit 1-6
NORTON RIXSON
TEMPLATE NUMBER REV
DATE
Approved 2022-02-25
4 7316-1206 12/21
