Norton Rixson 1600 Series Door Closer,P1600,Parallel Arm Application with 2018B Soffit Plate & With or without 1…_7316-1212
Open the original PDF document
View PDF

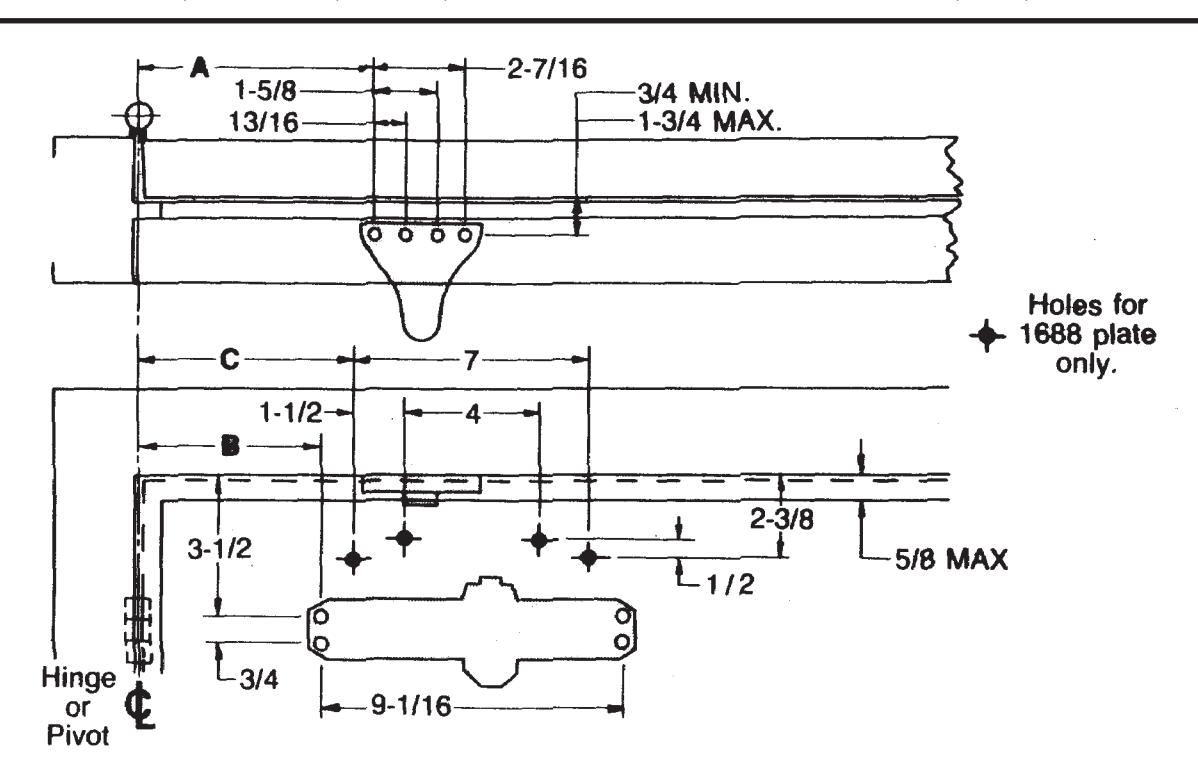

| OPENING | DIM. A | DIM. B | DIM. C |
|---|---|---|---|
| To 100° | 9-1/4 | 7-5/8 | 8-5/8 |
| 100° to 130° | 7-3/4 | 6-1/8 | 7-1/8 |
| Over 130° | 5-3/4 | 4-1/8 | 5-1/8 |
| METRIC CONVERSION | ||||||
|---|---|---|---|---|---|---|
| inches | mm. | inches | mm. | inches | mm. | |
| 1/2 | 12.7 | 2-7/16 | 61.9 | 7 | 177.8 | |
| 5/8 | 16 | 3-1/2 | 89 | 7-1/8 | 181 | |
| 3/4 | 19.1 | 4 | 101.6 | 7-5/8 | 194 | |
| 13/16 | 20.6 | 4-1/8 | 105 | 7-3/4 | 197 | |
| 1-1/2 | 38.1 | 5-1/8 | 130 | 8-5/8 | 219 | |
| 1-5/8 | 41.3 | 5-3/4 | 146 | 9-1/16 | 230.2 | |
| 1-3/4 | 45 | 6-1/8 | 156 | 9-1/4 | 235 | |
| 2-3/8 | 60 | |||||
| PREPARATION FOR FASTENERS | |||||
|---|---|---|---|---|---|
| FASTENER | DOOR or FRAME | DRILL | |||
| #14 type "A" sheet metal screw | wood | 7/32" (5.5mm) | |||
| 1/4-20 machine screw | metal |
#7 (.201" dia.) or 5.10mm. drill
1/4-20 tap |
|||
|
SNB
(optional) |
hollow-metal |
9/32" (7.00mm.) thru
3/8" (9.50mm.) door face opposite to closer |
|||
| aluminum or wood | 3/8" (9.50mm.) thru | ||||
|
TBGN
(optional) |
all |
9/32" (7.00mm.) thru
3/8" (9.50mm.) diameter x 3/8" (10mm.) deep, door face opposite to closer |
|||
(P)1600 Series Door Closers Parallel Arm Application With 2018B Soffit Plate & With or Without 1688 Drop Plate Non Hold Open Arm Individually Sized Units 3 and 4 & Multi-size Unit 1-6
NORTON RIXSON
TEMPLATE NUMBER REV
4 DATE 7316-1212 12/21
Approved 2022-02-25
