Norton Rixson 1600 Series Door Closer,P1600,P1600H,Parallel Arm Application with or without 1688 Drop Plate,Non-…_7316-1202

(101.6)

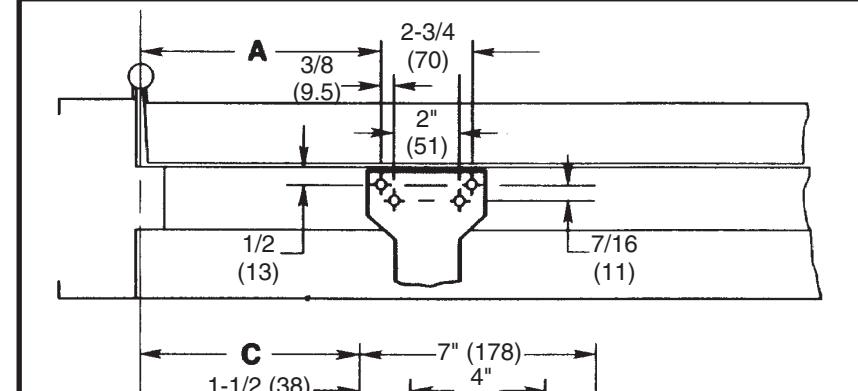

Opening	Dim. "A"	Dim. "B"	Dim. "C"
To 100°	9-1/4"	7-5/8"	8-5/8"
	(235)	(194)	(219)
101° to 130°	7-3/4"	6-1/8"	7-1/8"
	(197)	(156)	(181)
over 130°	5-3/4"	4-1/8"	5-1/8"
	(146)	(105)	(130)

Notes:

• 1. Do not scale drawing.
• 2. Left hand door shown.
• 3. Dimensions given in inches (millimeters).
• 4. Door swing may be limited by door, frame, wall or hardware conditions.
• 5. Hollow metal doors require channel or box type reinforcement when thru-bolt mount is specified.
• 6. Sleeve nuts and bolts may be required for wood or plastic faced fire door mounting.
• 7. Minimum thickness recommended for reinforcements in hollow metal doors and frames: .1046" (2.66mm) unless otherwise noted.
• 8. Hold open arm door closers are not permitted to be used on fire doors.

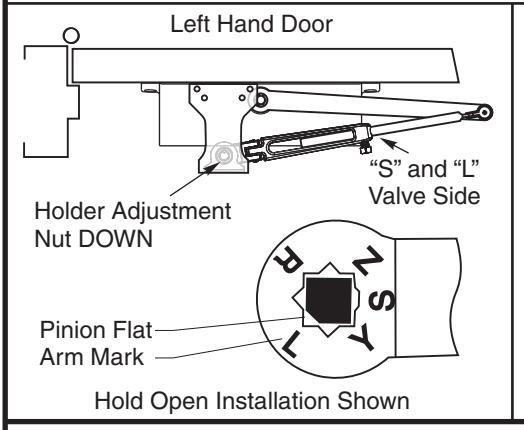

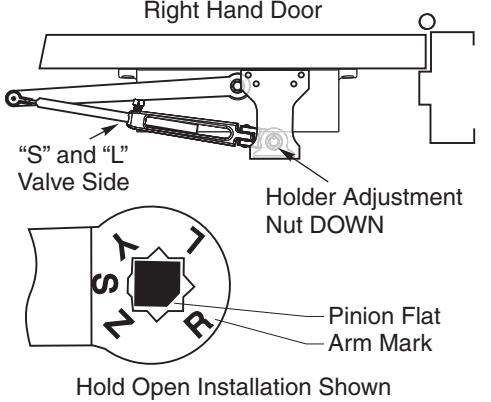

Position of Arm and Pinion Flat

(230.2)

1-1/2 (38)

3/4

(19) 9-1/16

3-1/4 (83)

1/2 (13)

2-1/8 (54)

Fastener	Door or Frame	Drill
#14 type "A" sheet metal screw	wood	7/32" (5.5mm)
1/4-20 machine screw	metal	#7 (.201 dia.) or 5.10mm. drill 1/4"-20 tap
SNB (optional)	hollow-metal	9/32" (7.00mm.) thru 3/8"(9.50mm.) door face opposite to closer
	aluminum or wood	3/8" (9.50mm.) thru
TBGN (optional)	all	9/32"(7.00mm.) thru 3/8"(9.50mm.) diameter x 3/8" (10mm.) deep, door face opposite to closer

(P)1600 and (P)1600H Series Door Closers Parallel Arm Applications with or without 1688 Drop Plate Non Hold Open or Hold Open Arm Individually Sized Units 3 and 4 & Multi-sized Unit 1-6

NORTON RIXSON

TEMPLATE NUMBER REV

4 DATE 7316-1202 01/22
