Norton Rixson 1600 Series Door Closer,P1600,P1600H,Parallel Arm Application with 2022 Flush Transom Bracket,with…_7316-1208
Open the original PDF document
View PDF

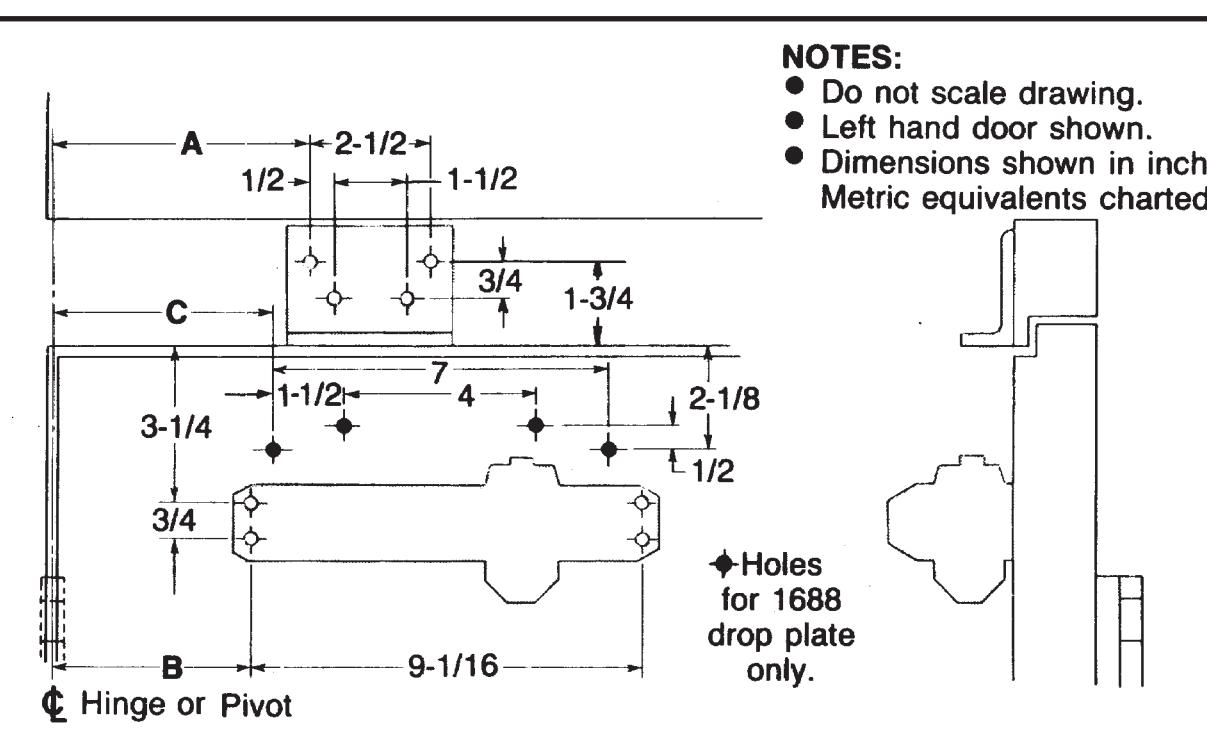

| OPENING | DIM. A | DIM. B | DIM. C |
|---|---|---|---|
| To 100° | 9-3/8 | 7-5/8 | 8-5/8 |
| 100° to 130° | 7-7/8 | 6-1/8 | 7-1/8 |
| Over 130° | 5-7/8 | 4-1/8 | 5-1/8 |
| METRIC CONVERSION | |||||||
|---|---|---|---|---|---|---|---|
| inches | mm. | inches | mm. | inches | mm. | ||
| 1/2 | 12.7 | 4 | 101.6 | 7-1/8 | 181 | ||
| 3/4 | 19.1 | 4-1/8 | 105 | 7-5/8 | 194 | ||
| 1-1/2 | 38.1 | 5-1/8 | 130 | 7-7/8 | 200 | ||
| 1-3/4 | 44 | 5-7/8 | 149 | 8-5/8 | 219 | ||
| 2-1/8 | 54 | 6-1/8 | 156 | 9-1/16 | 230.2 | ||
| 2-1/2 | 63.5 | 7 | 177.8 | 9-3/8 | 238 | ||
| 3-1/4 | 83 | ||||||
| PREPARATION FOR FASTENERS | |||||
|---|---|---|---|---|---|
| FASTENER | DOOR or FRAME | DRILL | |||
| #14 type "A" sheet metal screw | wood | 7/32" (5.5mm) | |||
| 1/4-20 machine screw | metal |
#7 (.201" dia.) or 5.10mm. drill
1/4-20 tap |
|||
|
SNB
(optional) |
hollow-metal |
9/32" (7.00mm.) thru
3/8" (9.50mm.) door face opposite to closer |
|||
| aluminum or wood | 3/8" (9.50mm.) thru | ||||
|
TBGN
(optional) |
all |
9/32" (7.00mm.) thru
3/8" (9.50mm.) diameter x 3/8" (10mm.) deep, door face opposite to closer |
|||
(P)1600 and (P)1600H Series Door Closers Parallel Arm Applications with 2022 Flush Transom Bracket and with or without 1688 Drop Plate Non Hold Open or Hold Open Arm Individually Sized Units 3 and 4 & Multi-sized Unit 1-6
NORTON RIXSON
TEMPLATE NUMBER REV
4 DATE 7316-1208 12/21
Approved 2022-02-25
