Norton Rixson 1600 Series Door Closer,J1600,J1600H,Top Jamb Application with 1688 Drop Plate,Non-Hold Open,Hold …_7316-1160
Open the original PDF document
View PDF

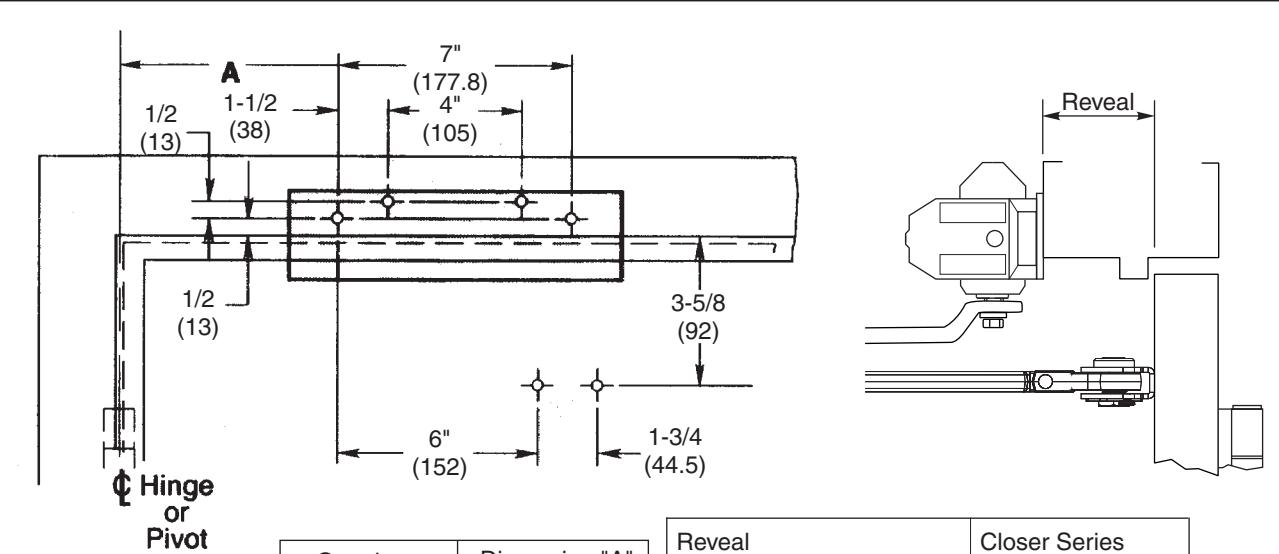

| Opening | Dimension "A" |
|---|---|
| To 100° |
8"
(203) |
| 101° to 120° |
6-1/2"
(165) |
| over 120° |
4"
(105) |
| Reveal | Closer Series |
|---|---|
| 0 to 3" (0 to 76) | 1600 |
| 2-7/8" to 7" (73 to 178) | J1600 |
| 0 to 2-3/4" (0 to 70) | 1600H/1600HFL |
| 2-3/4" to 6-3/4" (70 to 171) | J1600H/J1600HFL |
Notes:
- 1. Do not scale drawing.
- 2. Left hand door shown.
- 3. Dimensions given in inches (millimeters).
- 4. Door swing may be limited by door, frame, wall or hardware conditions.
- Hollow metal doors require channel or box type reinforcement when thru-bolt mount is specified.
- Sleeve nuts and bolts may be required for wood or plastic faced fire door mounting.
- Minimum thickness recommended for reinforcements in hollow metal doors and frames: .1046" (2.66mm) unless otherwise noted.
- 8. Hold open arm door closers without fusible-link release are not permitted to be used on fire doors.

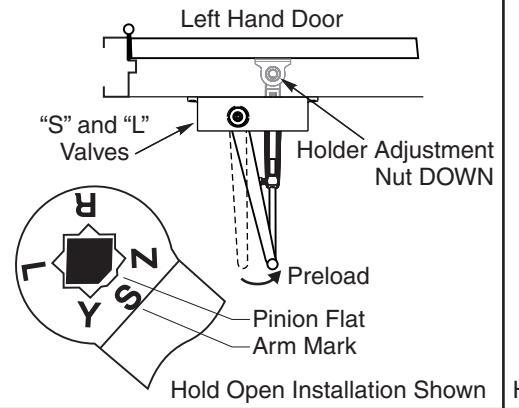

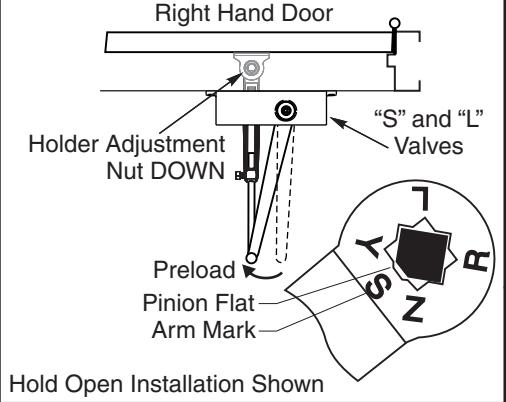

Position of Arm and Pinion Flat
| Fastener | Door or Frame | Drill |
|---|---|---|
| #14 type "A" sheet metal screw | wood | 7/32" (5.5mm) |
| 1/4-20 machine screw | metal |
#7 (.201 dia.) or 5.10mm. drill
1/4"20 tap |
|
SNB
(optional) |
hollow-metal |
9/32" (7.00mm.) thru
3/8"(9.50mm.) door face opposite to closer |
| aluminum or wood | 3/8" (9.50mm.) thru | |
|
TBGN
(optional) |
all |
9/32"(7.00mm.) thru
3/8"(9.50mm.) diameter x 3/8" (10mm.) deep, door face opposite to closer |
(J)1600 and (J)1600H Series Door Closers Top Jamb Application With 1688 Drop Plate Non Hold Open or Hold Open Arm Individually Sized Units 3 and 4 & Multi-size Unit 1-6
ASSA ABLOY
TEMPLATE NUMBER 7316-1160
REV DATE 4 01/22
Approved 2022-02-25
