Norton Rixson 1600 Series Door Closer,J1600,J1600H,Top Jamb Application with 1687 Drop Plate,Non-Hold Open or Ho…_7316-1158

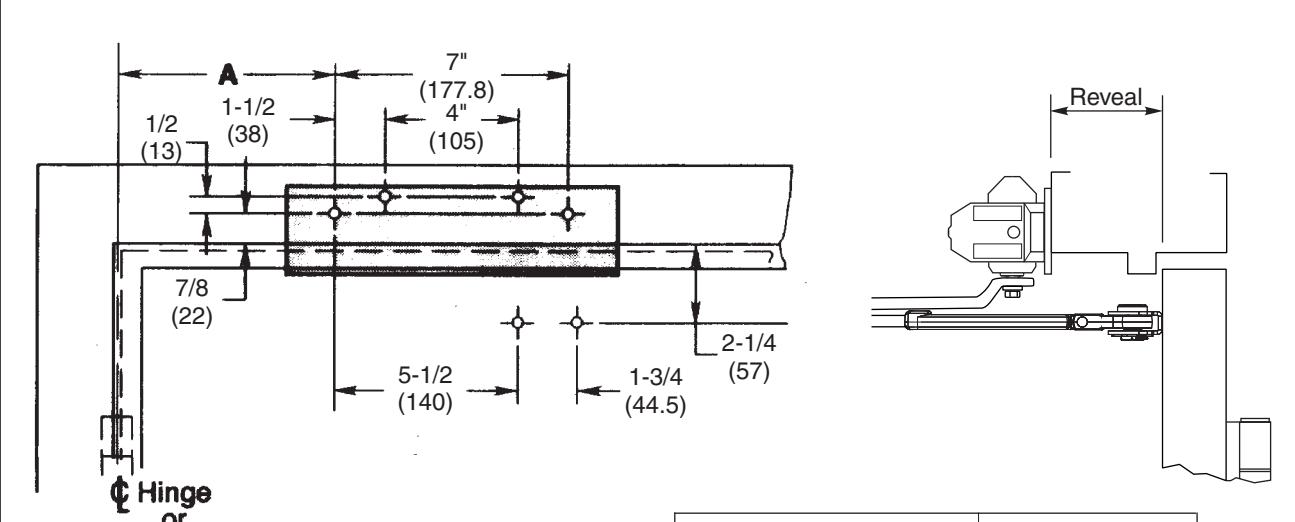

Opening Dimension "A" To 100° \frac{8"}{(203)} 101° to 120° \frac{6-1/2"}{(165)} over 120° \frac{4"}{(105)}

Reveal	Closer Series
0 to 3" (0 to 76)	1600
3" to 7" (76 to 178)	J1600
0 to 2-1/4" (0 to 57)	1600H/1600HFL
2-1/4" to 5" (57 to 127)	J1600H/J1600HFL

Notes:

• 1. Do not scale drawing.
• 2. Left hand door shown.
• 3. Dimensions given in inches (millimeters).
• Door swing may be limited by door, frame, wall or hardware conditions.
• Hollow metal doors require channel or box type reinforcement when thru-bolt mount is specified.
• Sleeve nuts and bolts may be required for wood or plastic faced fire door mounting.
• Minimum thickness recommended for reinforcements in hollow metal doors and frames: .1046" (2.66mm) unless otherwise noted.
• 8. Hold open arm door closers without fusible-link release are not permitted to be used on fire doors.

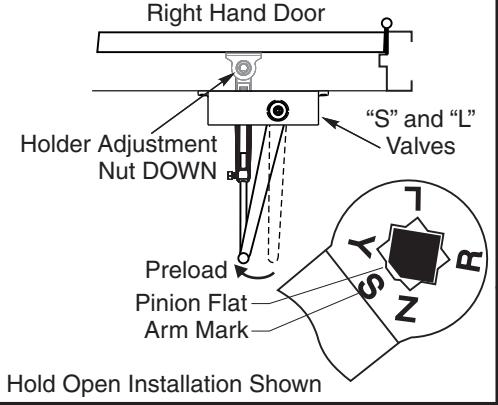

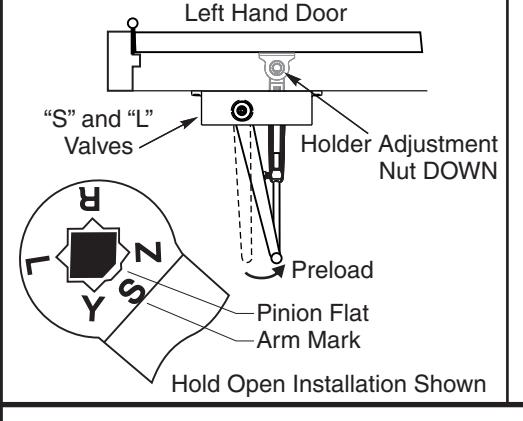

Position of Arm and Pinion Flat

Pivot

Fastener	Door or Frame	Drill
#14 type "A" sheet metal screw	wood	7/32" (5.5mm)
1/4-20 machine screw	metal	#7 (.201 dia.) or 5.10mm. drill 1/4"-20 tap
SNB (optional)	hollow-metal	9/32" (7.00mm.) thru 3/8"(9.50mm.) door face opposite to closer
	aluminum or wood	3/8" (9.50mm.) thru
TBGN (optional)	all	9/32" (7.00mm.) thru 3/8" (9.50mm.) diameter x 3/8" (10mm.) deep, door face opposite to closer

(J)1600 and (J)1600H Series Door Closers Top Jamb Application With 1687 Drop Plate Non Hold Open or Hold Open Arm Individually Sized Units 3 and 4 & Multi-size Unit 1-6

ASSA ABLOY

TEMPLATE NUMBER

REV DATE 4 01/22

7316-1158

Approved 2022-02-25
