Maximum width hinges for this template are 5" (127mm)
| in. | mm. | in. | mm. | in. | mm. | in. | mm. |
|---|---|---|---|---|---|---|---|
| 1/2 | 12.7 | 4 | 101.6 | 7-7/8 | 200 | 9-3/8 | 238 |
| 3/4 | 19.1 | 5-3/4 | 146 | 8 | 203 | 9-3/4 | 248 |
| 1-1/2 | 38.1 | 6-3/8 | 162 | 8-3/8 | 213 | 10-1/8 | 257 |
| 1-5/8 | 41 | 6-3/4 | 171 | 8-1/2 | 216 | 10-1/2 | 267 |
| 1-3/4 | 44 | 7 | 177.8 | 8-5/8 | 219 | 11-1/4 | 286 |
| 2-1/2 | 63.5 | 7-3/8 | 187 | 9-1/16 | 230.2 | ||
| 2-3/4 | 69.9 | 7-5/8 | 194 | 9-1/8 | 232 |

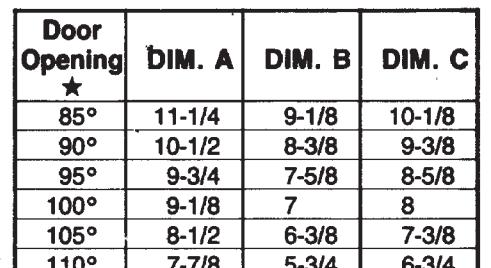

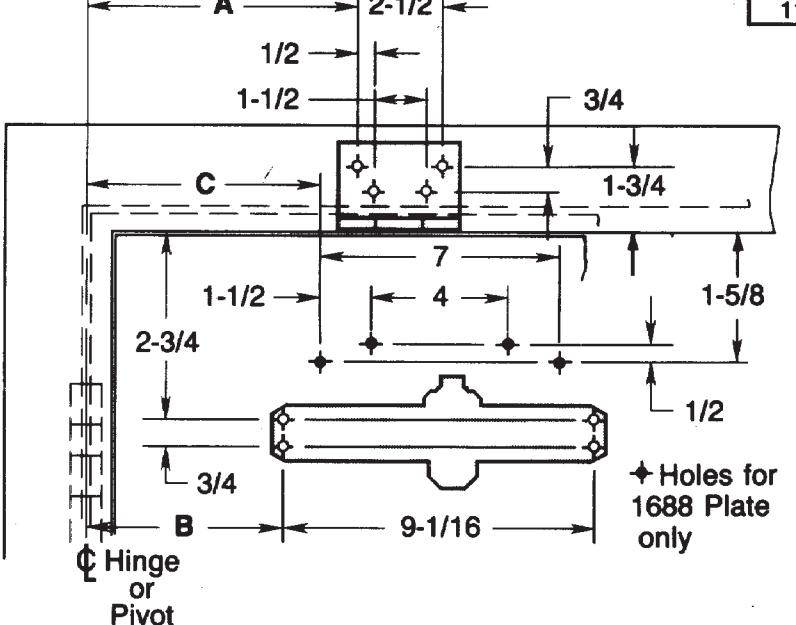

| Top View Typical Installation | ||||||||
|---|---|---|---|---|---|---|---|---|
| Left Hand Door Right Hand Door | ||||||||
| Stop | ١ | |||||||
| Pinion Flat "S" and "L" Valves Pinion Flat | t | |||||||
| Fastener | Frame | Door | Drill |
|---|---|---|---|
| #14 type "A" sheet metal screw | wood | none | 7/32" (5.5mm) |
| 1/4-20 machine screw | metal | none |
#7 (.201 dia.) or 5.10mm. drill
1/4"-20 tap |
|
SNB
(optional) |
none |
hollow
metal |
9/32" (7.00mm.) thru
3/8" (9.50mm.) door face opposite to closer |
| (opaorial) | aluminum or wood | 3/8" (9.50mm.) thru |
® CLP-1600 (BC) Series CloserPlus CPS-1600(BC) Series CloserPlus Spring™ Arm Parallel Arm Application with 2019L Flush Transom Bracket and With or Without 1688 Drop Plate Arm Function - Stop Only or Stop & Hold Open Arm ("T" Suffix)
Power Size: 1-6, 3BC, or 4BC Approved 2022-02-25
TEMPLATE NUMBER REV
DATE
4 7316-2306 12/21
