Norton Rixson 1600 Series Door Closer,1600H,Corner Bracket Application with 1647 Corner Bracket,Non-Hold Open or…_7316-1149

Notes:

• 1. Do not scale drawing.
• 2. Left hand door shown.
• 3. Dimensions given in inches (millimeters).
• 4. Door swing may be limited by door, frame, wall or hardware conditions.
• 5. Hollow metal doors require channel or box type reinforcement when thru-bolt mount is specified.
• 6. Sleeve nuts and bolts may be required for wood or plastic faced fire door mounting.
• 7. Minimum thickness recommended for reinforcements in hollow metal doors and frames: .1046" (2.66mm) unless otherwise noted.
• 8. Hold open arm door closers without fusible-link release are not permitted to be used on fire doors.

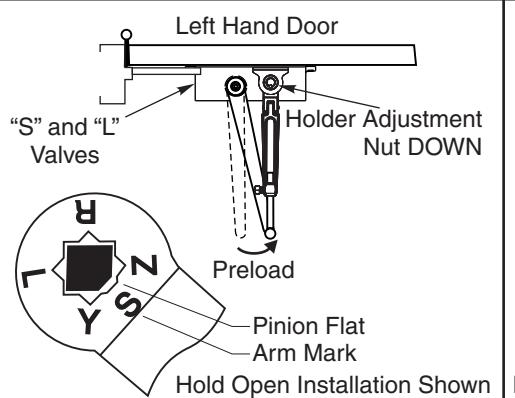

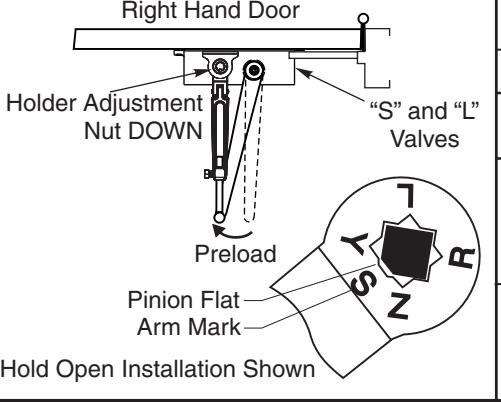

Position of Arm and Pinion Flat

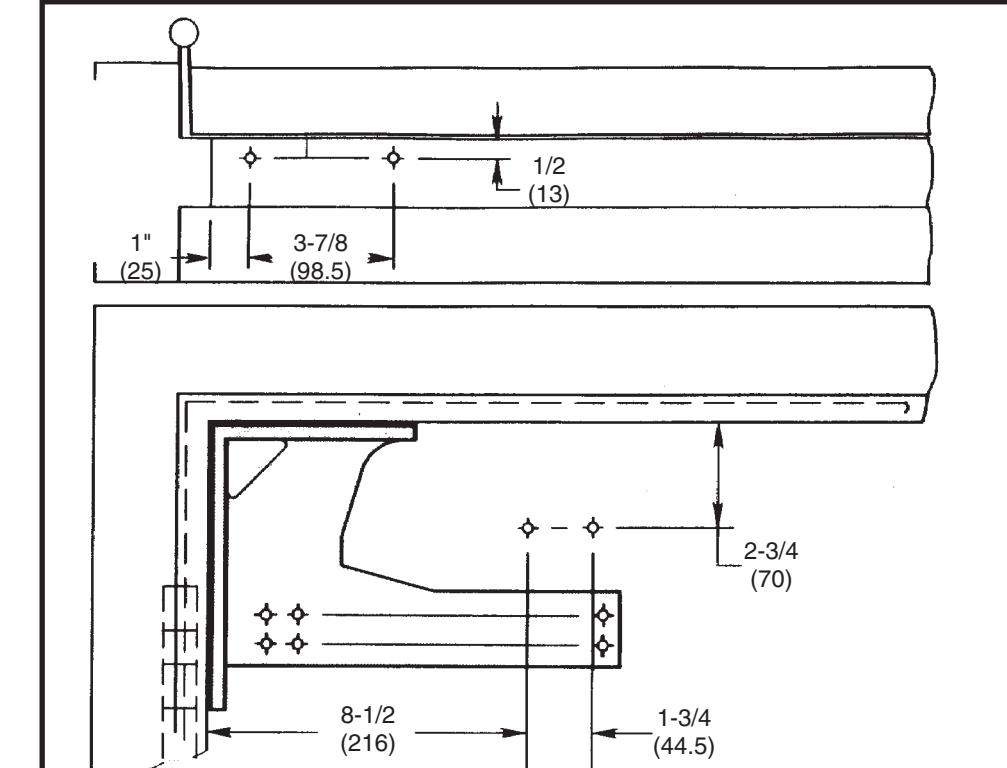

5-15/16 (150.8)

1/2 (13)

1" (25)

Fastener	Door or Frame	Drill
#14 type "A" sheet metal screw	wood	7/32" (5.5mm)
1/4-20 machine screw	metal	#7 (.201 dia.) or 5.10mm. drill 1/4"-20 tap
SNB (optional)	hollow-metal	9/32" (7.00mm.) thru 3/8"(9.50mm.) door face opposite to closer
	aluminum or wood	3/8" (9.50mm.) thru
TBGN (optional)	all	9/32"(7.00mm.) thru 3/8"(9.50mm.) diameter x 3/8" (10mm.) deep, door face opposite to closer

1600 or 1600H Series Door Closers Corner Bracket Application With 1647 Corner Bracket Non Hold Open or Hold Open Arm Individually Sized Units 3 and 4 & Multi-size Unit 1-6

NORTON RIXSON

7316-1149 01/22

TEMPLATE NUMBER REV 4 DATE

Approved 2022-02-25
