1600 Series Non-Handed Door Closer

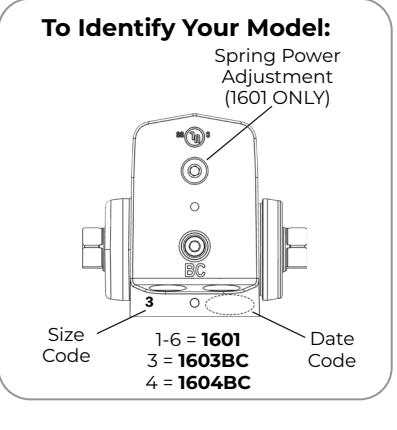

Arm Models 1601, 1603BC, and 1604BC

Installation Instructions

Non-hold Open arm models, adjustable size 1-6 (model 1601 &) and size 3 & 4 (models 1603BC and 1604BC).

/ WARNING

This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm.

For more information go to: www.P65warnings.ca.gov.

READ AND FOLLOW ALL INSTRUCTIONS. SAVE THESE INSTRUCTIONS.

ASSA ABLOY

ATTENTION:

An incorrectly installed or improperly adjusted door closer can cause property damage or personal injury. These installation instructions should be followed to avoid the possibility of misapplication or misadjustment.

For special applications, a separate door and frame preparation template is packed with these instructions. Use this instruction sheet for installation sequence and closer adjustments only.
Doors should be hung on ball bearing or anti-friction hinges.

1600 Series Non-Hold Open Closer

A separate door stop is recommended.
Always consult door/frame manufacturer for fastener compatibility.
Door and frame must be properly reinforced.
Adjust closing time speed between 3 and 7 seconds from 90° to 0°.
These door closers should NOT be installed on exposed side (weather side) of exterior doors.
Dimensions are given in inches (millimeters).

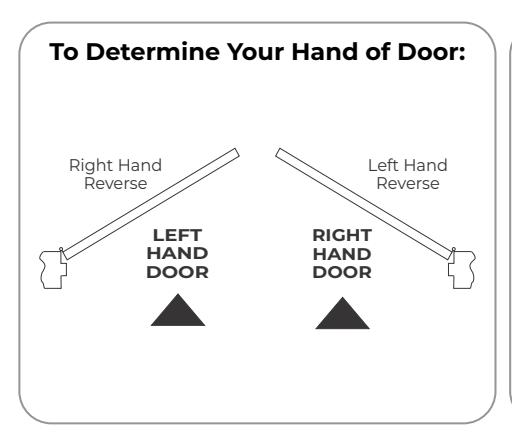

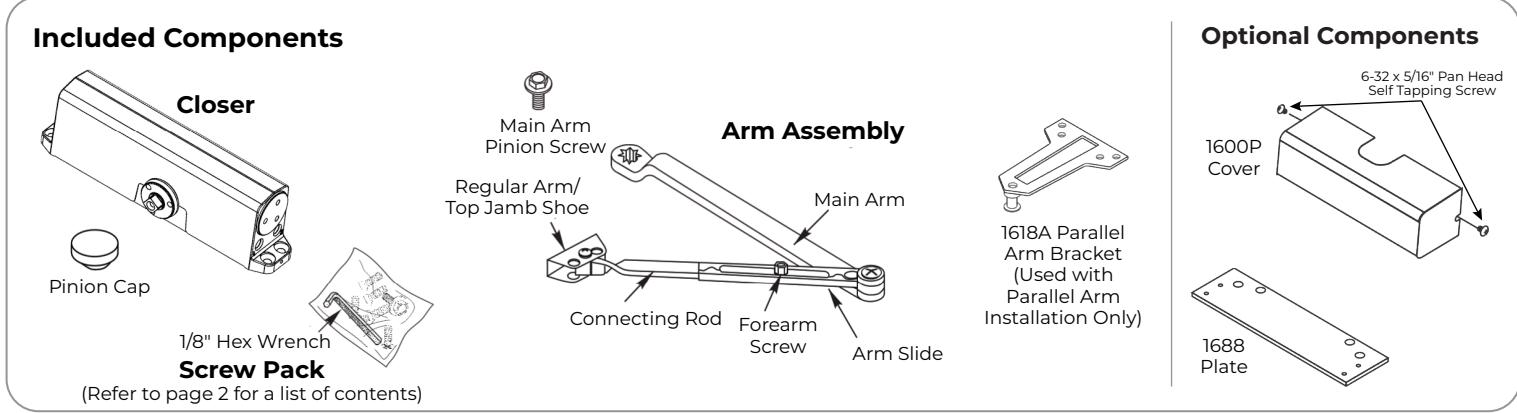

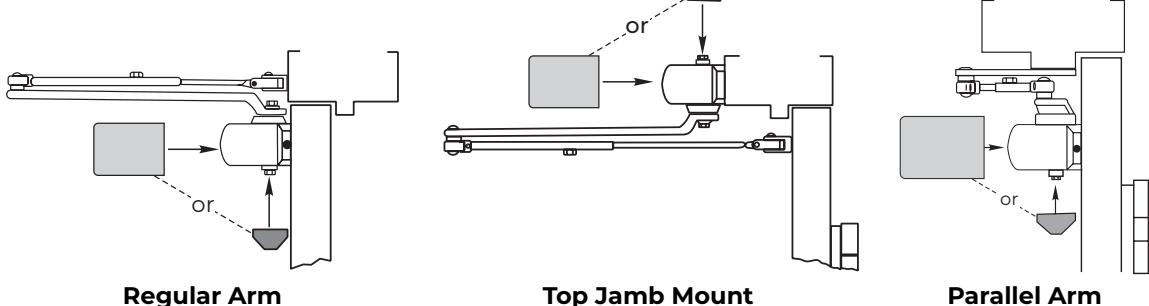

Supplied Hardware

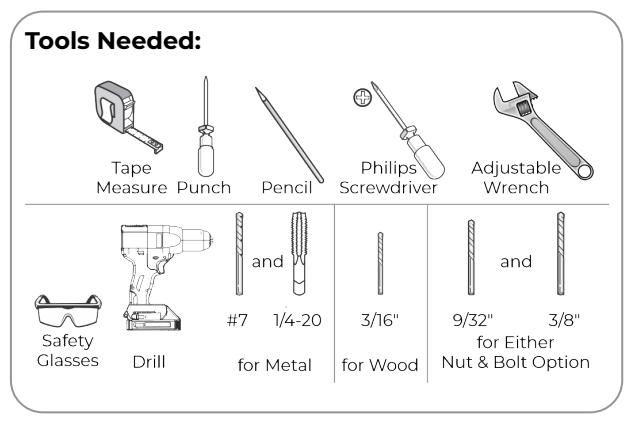

	Mounting Hardware	Door or Frame	Drill
	Closer, PA Bracket: 1/4-14 x 1-1/2 Oval Flat Head Self Drilling Screw	Wood/Metal	3/16" (4.8mm) for wood
]00000000	Closer, PA Bracket: 1/4-20 x 3/4 Oval Flat Head Mach. Screw	Motol	Drill #7 (.201 dia. or 5.1mm) Tap 1/4-20
	Arm Shoe to Jamb or Door: 1/4-20 x 5/8 Round Head Mach. Screw	Metal	Drill #7 (.201 dia. or 5.1mm) Tap 1/4-20
	Arm Shoe to Jamb or Door: 1/4-14 x 1-1/2 Round Head Self Drilling Screw	Wood/Metal	3/16" (4.8mm) for wood
	Closer: Sleeve Nut and Bolt (SNB) (optional)	Hollow Metal	9/32" (7.0mm) thru 3/8" (9.5mm) door face opposite to closer
	with 1/4-20 x 3/4 Oval Flat Head Mach. Screw (recommended)	Aluminum or Wood	3/8" (9.5mm) thru
Decementations	Closer: Thru Bolt and Grommet Nut (TBGN) (optional)	All	9/32" (7.0mm) thru 3/8" (9.5mm) dia. x 3/8" (9.5mm) deep, door face opposite to closer

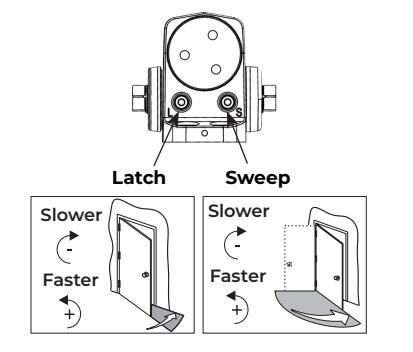

Closer Adjustments

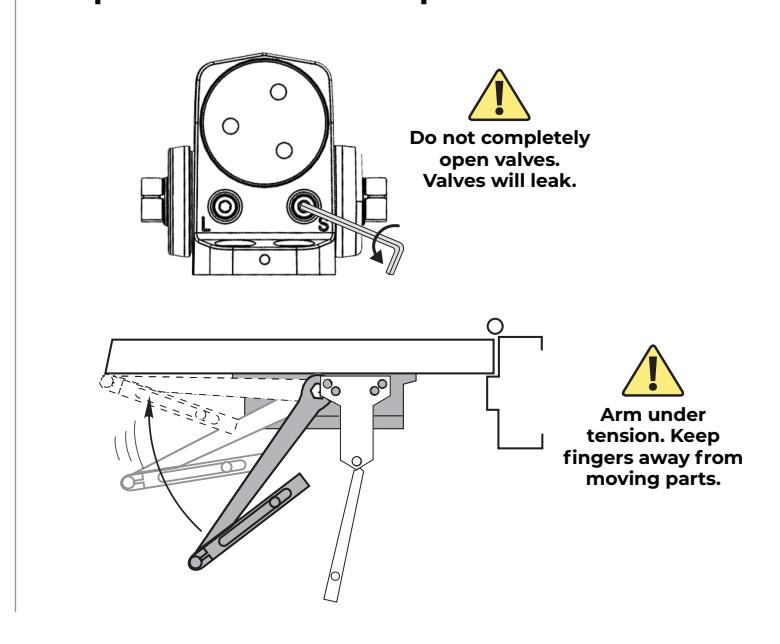

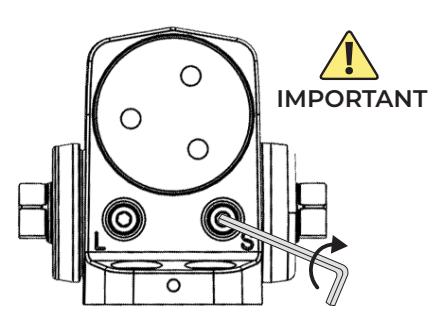

Use provided hex wrench to turn valves. NEVER force valves out of closer. NEVER completely close backcheck valve. Door must be open to adjust spring closing power. Refer to the chart.

Use of a power drill will void the Warranty.

Spring Closing Power			Number of Turns Required
				Maximum Door Size
	Door	Type of Installation	*	34" (0.85M)	36" (0.90M)	40" (1.00M)	44" (1.10M)	48" (1.20M)
1601	Interior	Regular Arm Top Jamb	Full 360° Turns	2	4	6	10	12
	Interior	Parallel Arm		3	5	8	11	14
	Exterior	Regular Arm Top Jamb		3	5	8	11	14
	Exterior	Parallel Arm		5	8	11	16	19
*30 Full (360°) turns maximum available == turns as shipped

Pinion Cap or Cover

Do not over tighten cap or cover screws.

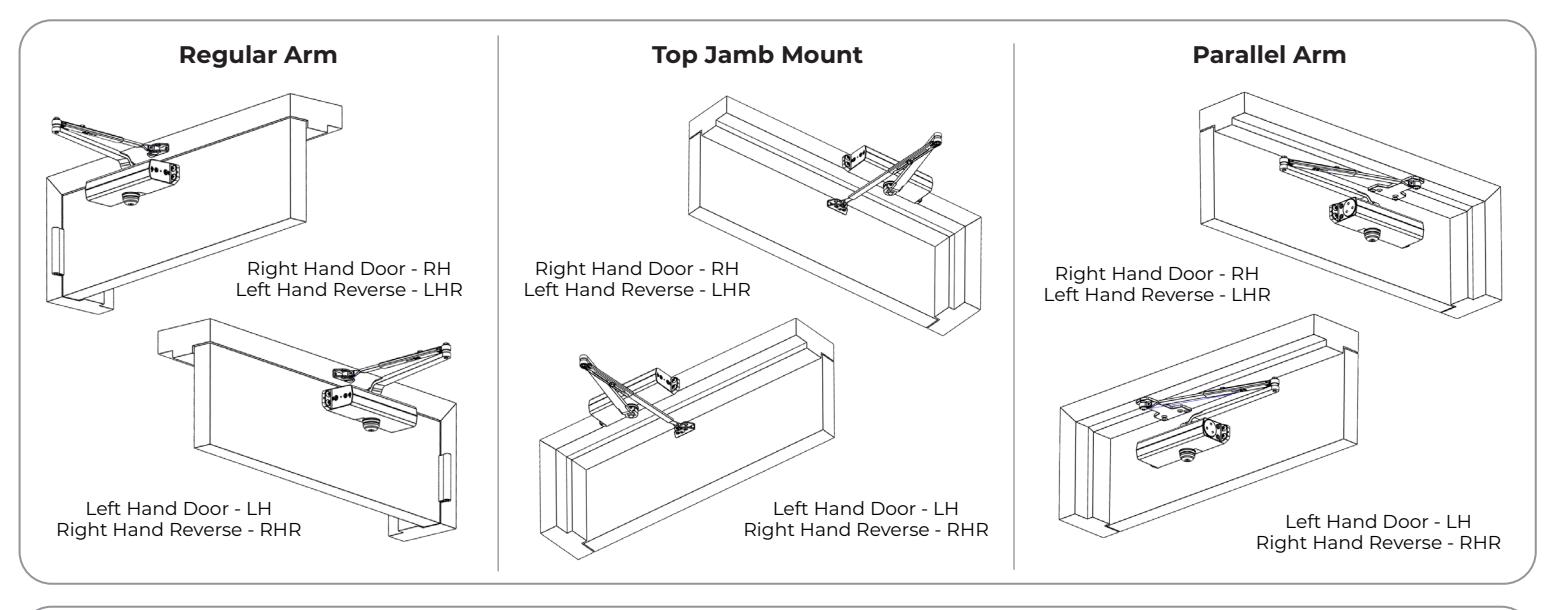

1600 Regular Arm Installation (Right Hand Shown)

1. Prepare door and frame.

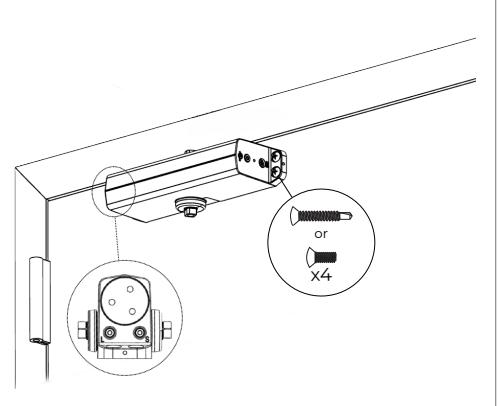

2. Mount closer to door.

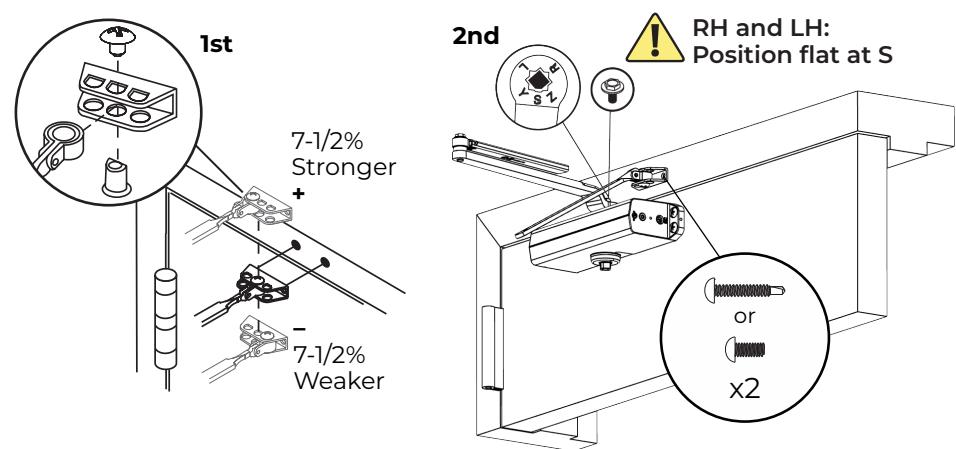

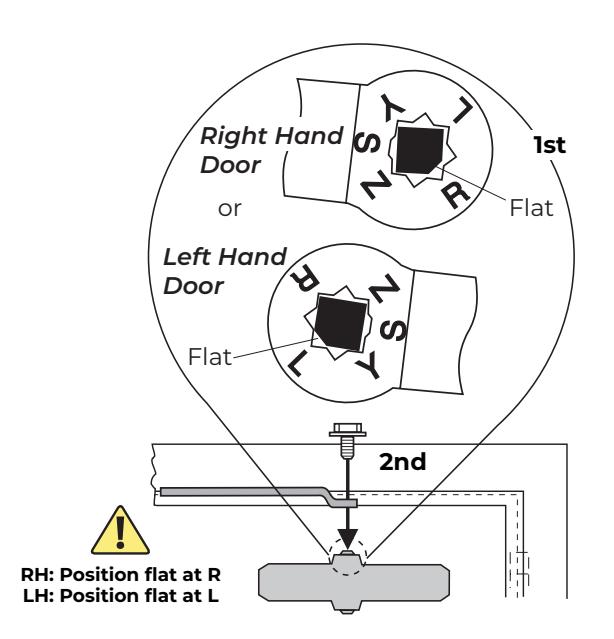

3. Choose arm placement in shoe and install arms.

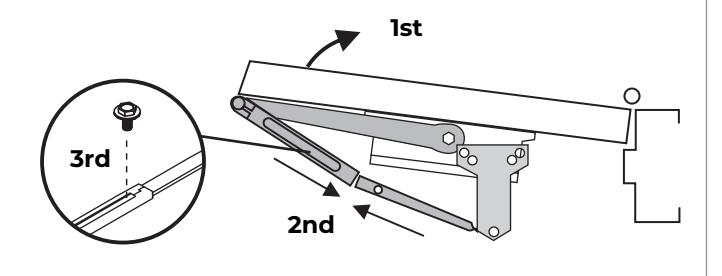

4. Connect arms and install forearm screw.

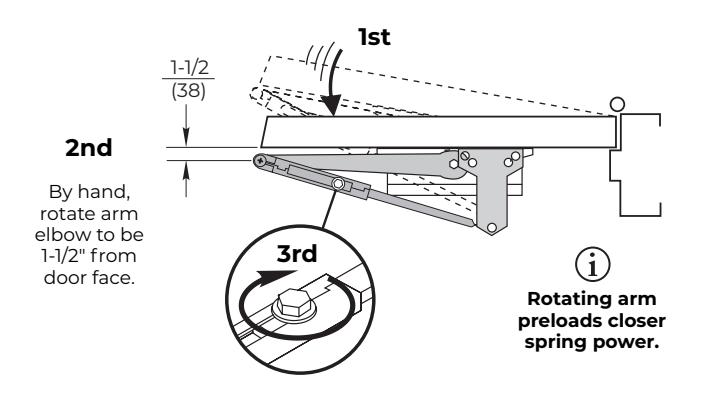

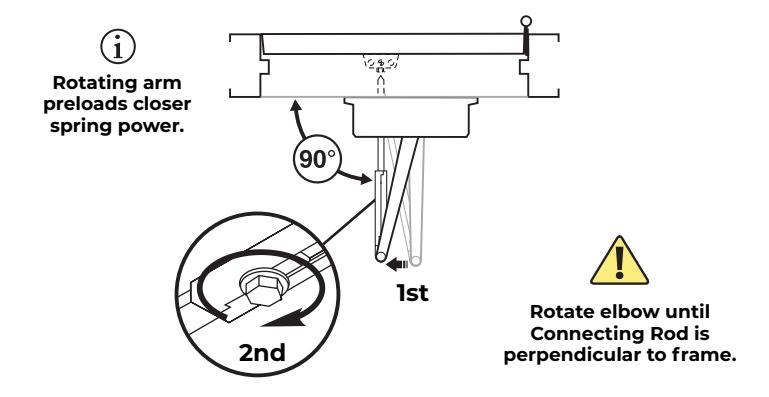

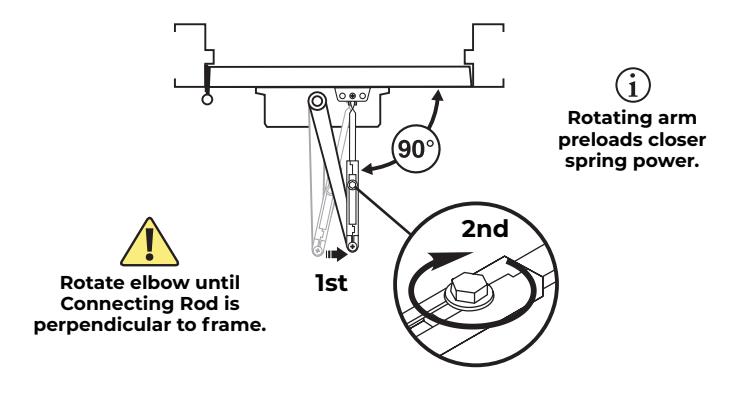

5. Preload spring and tighten forearm screw.

The 1600 Non Hold Open Closer - Regular Arm has now been installed.

Go to page 2 for closer adjustments and decorative cap or cover installation.

Approved 2023-02-23

1600 Top Jamb Arm Installation (Right Hand Shown)

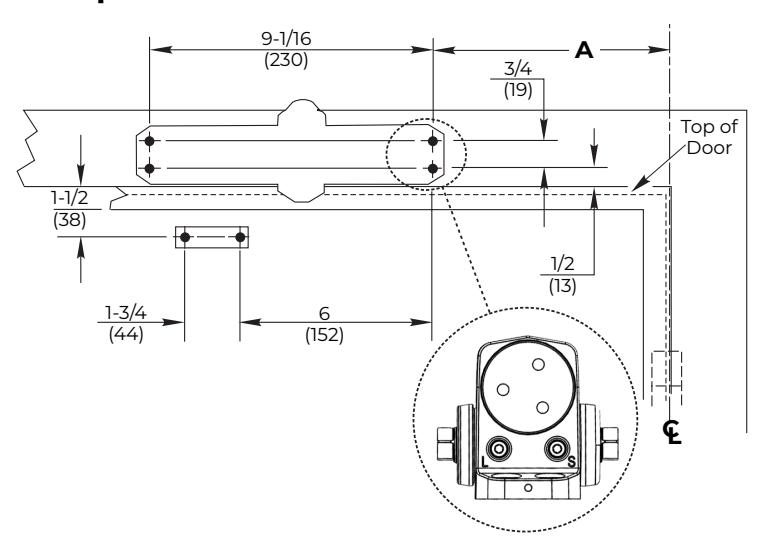

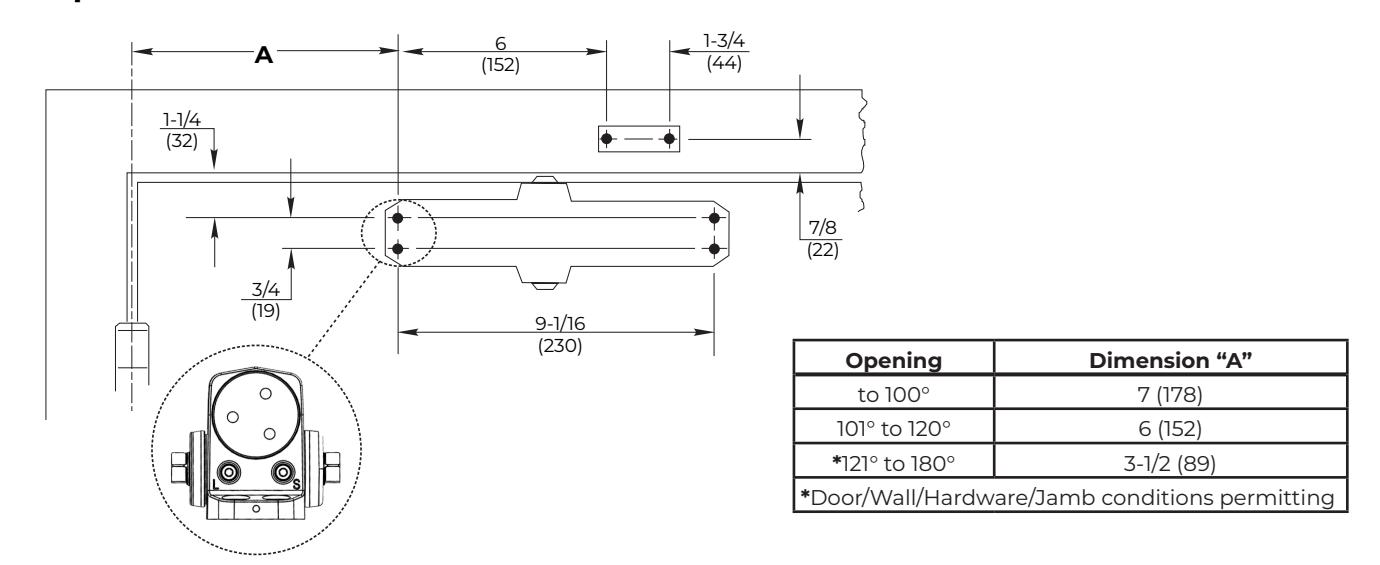

1. Prepare door and frame.

Opening	Dimension "A"
to 100°	7-1/2 (191)
101° to 120°	6 (152)
*121° to 180°	3-1/2 (89)

* Door/Wall/Hardware/Jamb conditions permitting

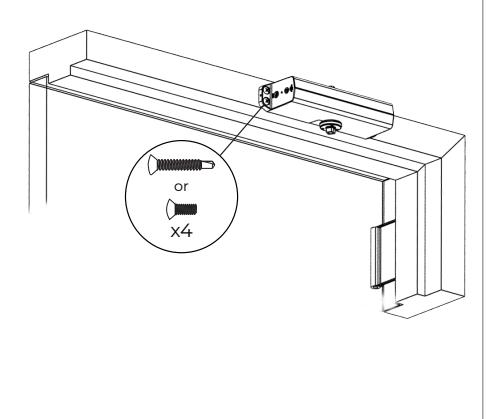

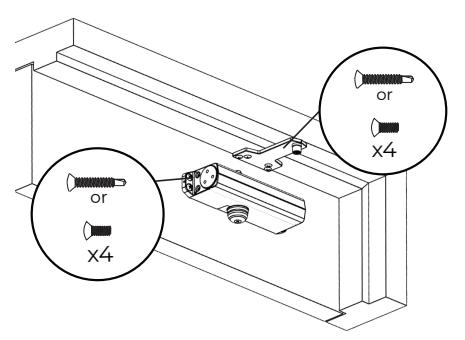

2. Mount closer to frame.

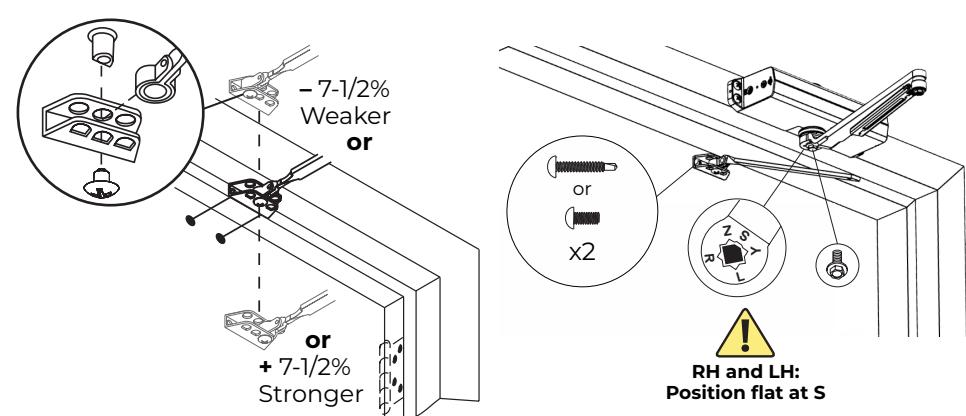

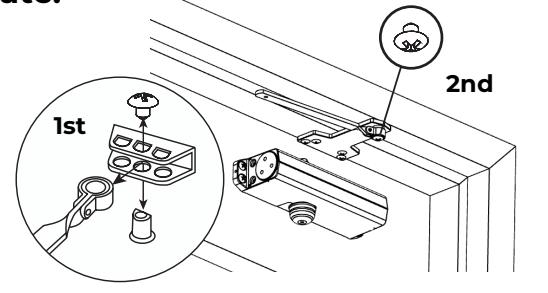

3. Choose arm placement in shoe and install separate arms.

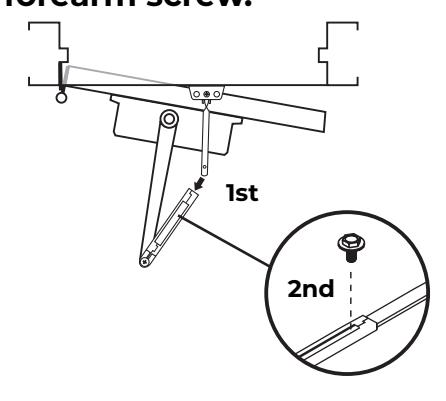

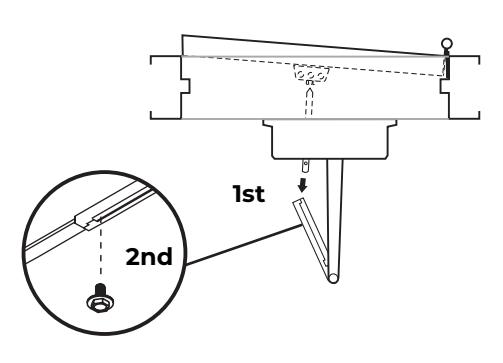

4. Connect arms and install forearm screw.

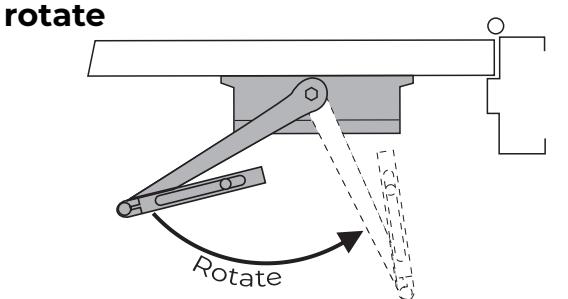

5. Preload spring and tighten forearm screw.

80-9316-2531-020 Rev 5 02/23

The 1600 Non Hold Open Closer - Top Jamb Mount has now been installed.

Go to page 2 for closer adjustments and decorative cap or cover installation.

ASSA ABLOY

1600 Parallel Arm Installation (Right Hand Shown)

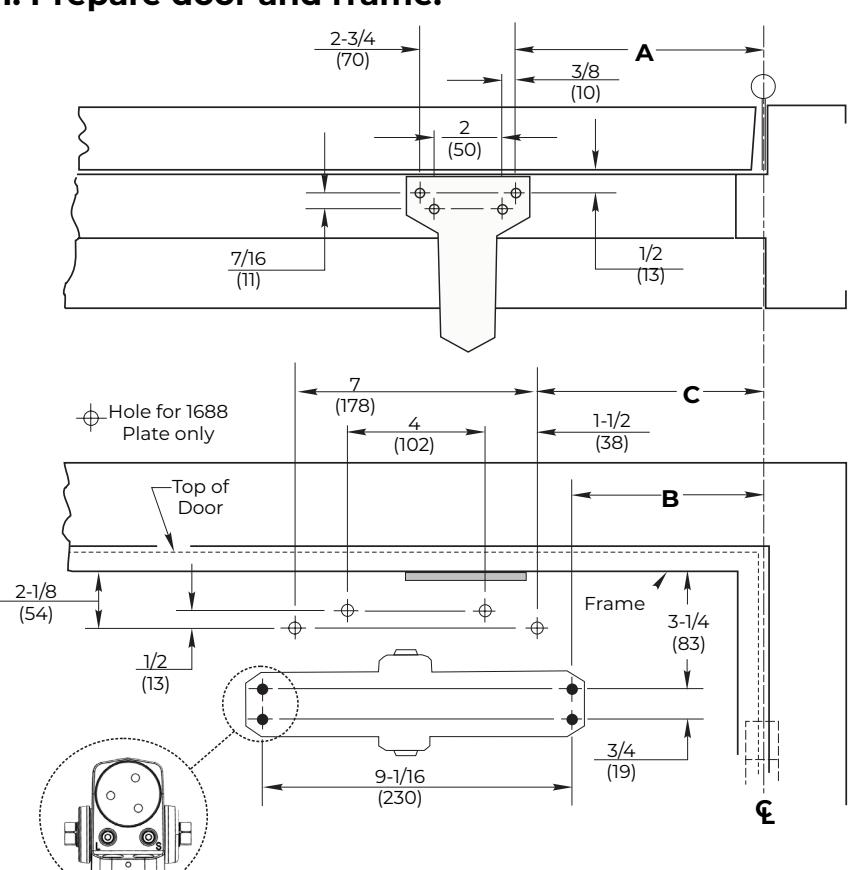

1. Prepare door and frame.

Door Opening	Dimension "A"	Dimension "B"	Dimension "C"
to 100°	9-1/4 (235)	7-5/8 (194)	8-5/8 (219)
101° to 130°	7-3/4 (197)	6-1/8 (156)	7-1/8 (181)
*131° to 180° \| 5-3/4 (146) \| 4-1/8 (105) \| 5-1/8 (130)
*Door/Wall/Hardware/Jamb conditions permitting
