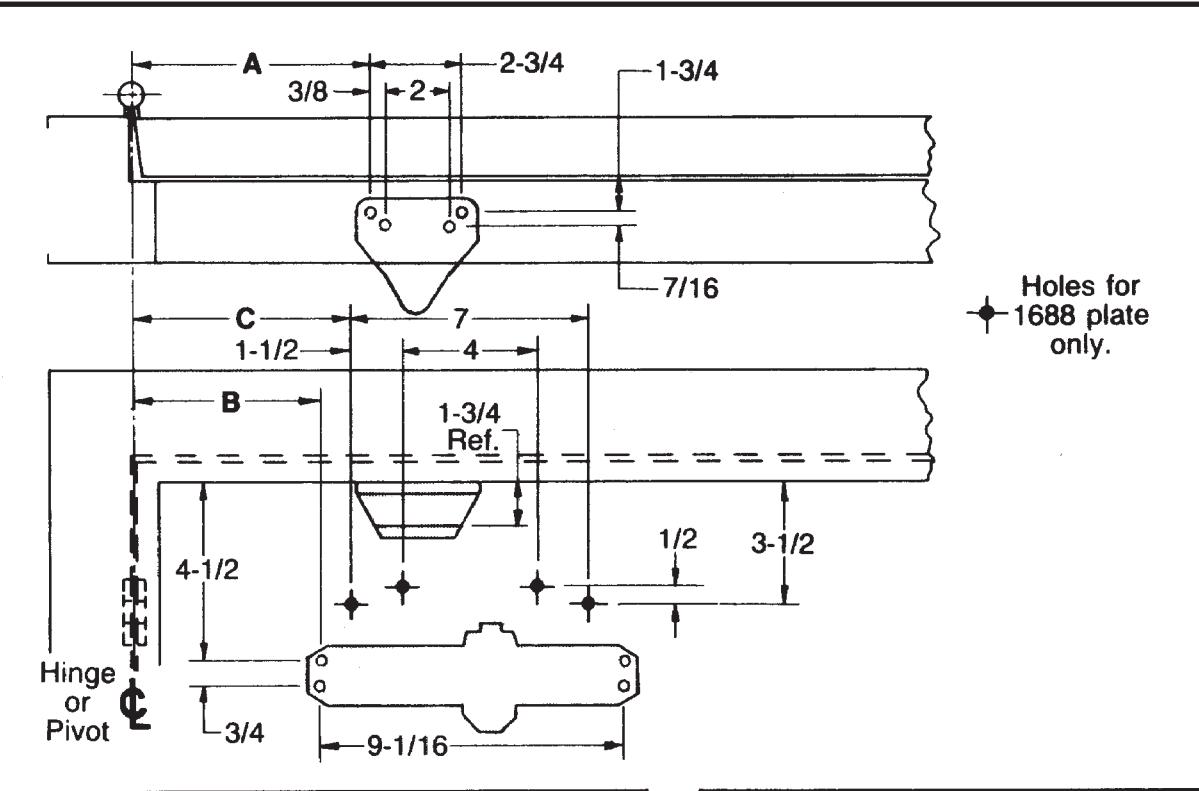

| OPENING | DIM. A | DIM. B | DIM. C |
|---|---|---|---|
| To 100° | 9-1/4 | 7-5/8 | 8-5/8 |
| 100° to 130° | 7-3/4 | 6-1/8 | 7-1/8 |
| Over 130° | 5-3/4 | 4-1/8 | 5-1/8 |
| METRIC CONVERSION | |||||||
|---|---|---|---|---|---|---|---|
| inches | mm. | inches | mm. | inches | mm. | ||
| 3/8 | 9.5 | 2-3/4 | 69.9 | 6-1/8 | 156 | ||
| 7/16 | 11.1 | 3-1/2 | 89 | 7 | 177.8 | ||
| 1/2 | 12.7 | 4 | 101.6 | 7-1/8 | 181 | ||
| 3/4 | 19.1 | 4-1/8 | 105 | 7-5/8 | 194 | ||
| 1-1/2 | 38.1 | 4-1/2 | 114 | 7-3/4 | 197 | ||
| 1-3/4 | 45 | 5-1/8 | 130 | 8-5/8 | 219 | ||
| 2 | 50.8 | 5-3/4 | 146 | 9-1/16 | 230.2 | ||
| 9-1/4 | 235 | ||||||
| PREPARATION FOR FASTENERS | |||||
|---|---|---|---|---|---|
| FASTENER | DOOR or FRAME DRILL | ||||
| #14 type "A" sheet metal screw | wood | 7/32" (5.5mm) | |||
| 1/4-20 machine screw | metal |
#7 (.201" dia.)
or 5.10mm
. drill
1/4-20 tap |
|||
|
SNB
(optional) |
hollow-metal |
9/32" (7.00mm.) thru
3/8" (9.50mm.) door face opposite to closer |
|||
| aluminum or wood | 3/8" (9.50mm.) thru | ||||
| TBGN all (optional) |
9/32" (7.00mm.) thru
3/8" (9.50mm.) diameter x 3/8" (10mm.) deep, door face opposite to closer |
||||
(P)1600 Series Door Closers Parallel Arm Application With 2018S Offset Soffit Plate & With or Without 1688 Drop Plate Non Hold Open Arm Individually Sized Units 3 and 4 & Multi-size Unit 1-6
www.nortondoorcontrols.com
TEMPLATE NUMBER REV
7316-1210
