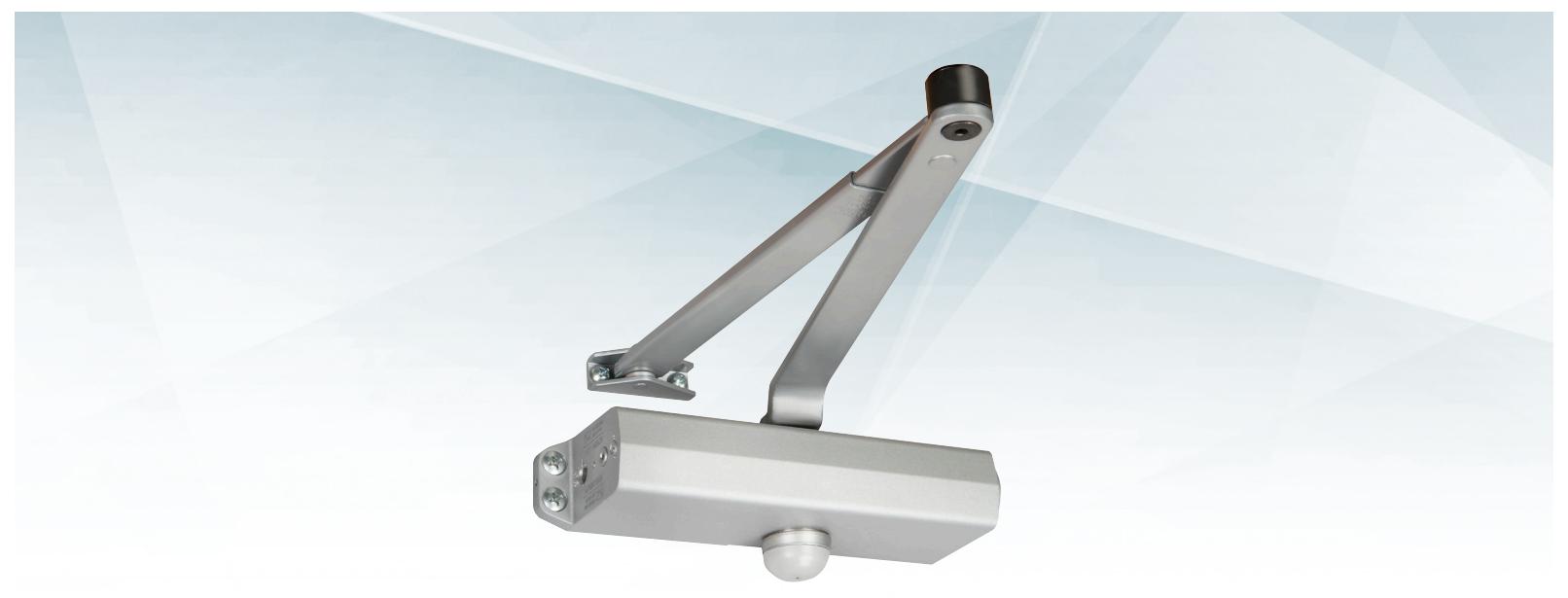

1600 SERIES CUSHION STOP ARM
The 1600 Series cushion stop arm is designed to help protect the door, frame and wall from damage in applications where an auxiliary stop cannot be used and moderate abuse is anticipated. This door closer offers proven quality, performance and reliability unmatched by the competition.
PRODUCT COMPARISON
|
Norton Rixson
1600 |
Dormakaba
7300 / 7400 |
|
|---|---|---|
| Certification and Warranty | ||
| ANSI/BHMA A156.4 | Grade 1 | Grade 1 |
| UL & ULC listed | Yes | Yes |
| Warranty | 25 year | 25 year |
| Extended cycle testing | 25 million | Not advertised |
| End of life recycling program available | Yes | Not advertised |
| Size and Construction | ||
| Construction (body) | Aluminum | Aluminum |
| Mounting hole pattern | 3/4" x 9-1/16" | 3/4" x 10-1/4" |
| Spring size | Fixed size 3, 4; Adjustable 1-6 | Fixed size 3, 4, & 5; Adjustable size 1-4 or 3-6 |
| Closer body (handing) | Non-handed | Non-handed |
| Standard backcheck | Yes | Yes |
| Options | ||
| Plastic cover | Optional | Optional |
| Metal cover option | No | No |
| Slim line cover option | No | Optional |
| Delayed action option | No | Optional |
| Sex nuts & bolts (Tri-Style® pack) | Optional | Optional |
| Finishes | Multiple | Multiple |
|
Norton Rixson
CA1601 Arm |
Dormakaba
7300 / 7400 IS/ISJ Arm |
|
| Arm Features | ||
| Regular | • | • |
| Top jamb | • | • |
| Available for multi-size 1-6 units | Adjustable 1-6 | Adjustable size 1-4 or 3-6 |
| Available for fixed size unit | Size 3, 4 | Size 3, 4, and 5 |
| Main arm construction | Forged | Stamped |
| Integrated cushioning mechanism | • | • |
| Applications (degrees) | 85°, 90°, 95, 100°, 105°, and 110° | 85°, 90°, 95, 100°, 105°, and 110° |
| Cushion arm top jamb reveal | 0" - 3" [0mm - 76mm] | 0" - 3-1/2" [0mm - 89mm] |
| Cushion arm - hold open option | No | • |
Since 1880, Norton Rixson door controls have been an integral part of schools, hospitals and businesses around the globe. When you need products and people that perform at the highest level, rely on Norton Rixson – From Open to Close.
