1600 Series Cushion Stop Non-Handed Door Closer

Arm Models CA1601, CA1603BC, and CA1604BC

Installation Instructions

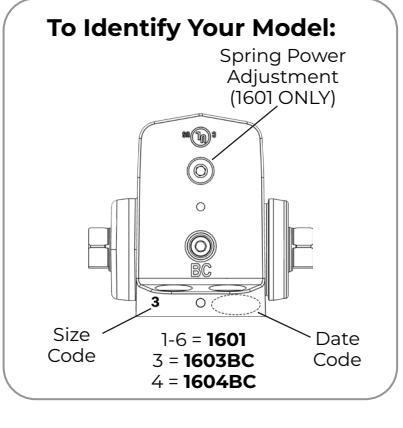

Non-hold Open models, adjustable size 1-6 (CA1601 model &) and size 3 & 4 (CA1603BC and CA1604BC models).

/ WARNING

This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm.

For more information go to: www.P65warnings.ca.gov.

READ AND FOLLOW ALL INSTRUCTIONS. SAVE THESE INSTRUCTIONS.

1600 Series Cushion Stop Non-Handed Door Closer

ATTENTION:

An incorrectly installed or improperly adjusted door closer can cause property damage or personal injury. These installation instructions should be followed to avoid the possibility of misapplication or misadjustment.

• y For special applications, a separate door and frame preparation template is packed with these instructions. Use this instruction sheet for installation sequence and closer adjustments only.
• y Doors should be hung on ball bearing or anti-friction hinges.

• y Door and frame must be properly reinforced.
• y Always consult door/frame manufacturer for fastener compatibility.
• y Adjust closing time speed between 4 and 7 seconds from 90° to 0°. Use of door by handicapped, elderly or small children may require greater closing time.
• y These door closers should NOT be installed on exposed side (weather side) of exterior doors.
• y Dimensions are given in inches (millimeters).

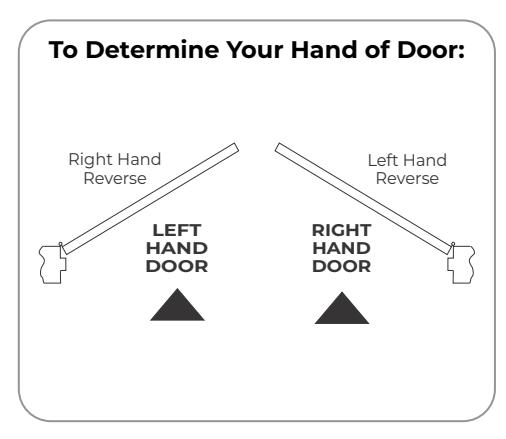

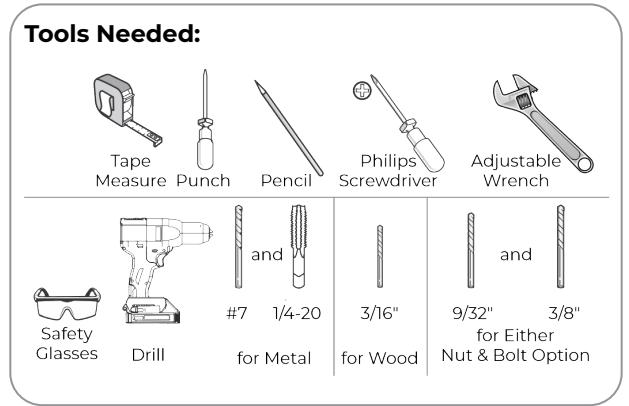

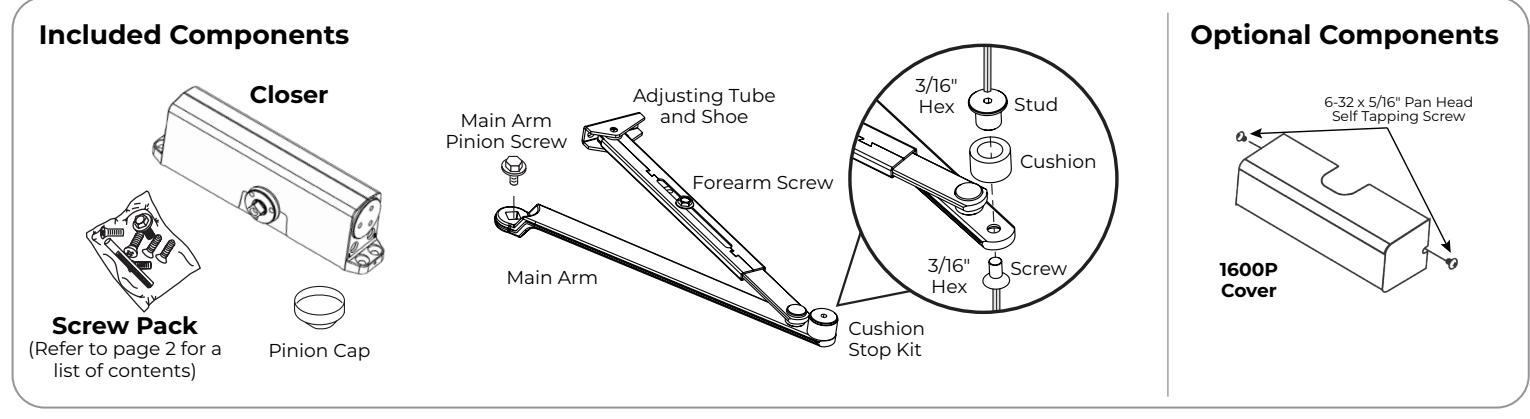

Supplied Hardware

Mounting Hardware	Door or Frame	Drill
Closer, PA Bracket: 1/4-14 x 1-1/2 Oval Flat Head Self Drilling Screw	Wood/Metal	3/16" (4.8mm) for wood
Closer, PA Bracket: 1/4-20 x 3/4 Oval Flat Head Mach. Screw		Drill #7 (.201 dia. or 5.10mm) Tap 1/4-20
Arm Shoe to Jamb or Door: 1/4-20 x 5/8 Round Head Mach. Screw	Metal
Arm Shoe to Jamb or Door: 1/4-14 x 1-1/2 Round Head Self Drilling Screw	Wood/Metal	3/16" (4.8mm) for wood
Closer: Sleeve Nut and Bolt (SNB)	Hollow Metal	9/32" (7.0mm) thru 3/8" (9.5mm) door face opposite to closer
with 1/4-20 x 3/4 Oval Flat Head Mach. Screw (recommended)	Aluminum or Wood	3/8" (9.5mm) thru
Closer: Thru Bolt and Grommet Nut (TBGN) (optional)	All	9/32" (7.0mm) thru 3/8" (9.5mm) dia. x 3/8" (9.5mm) deep, door face opposite to closer

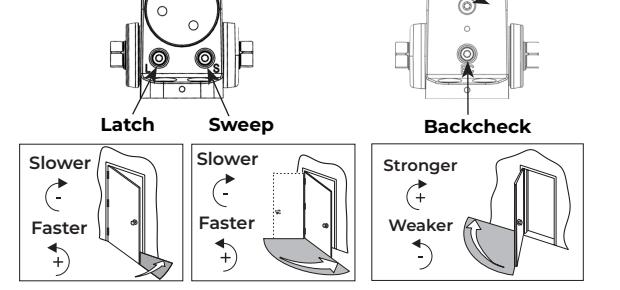

Closer Adjustments

Use provided hex wrench to turn valves. NEVER force valves out of closer. NEVER completely close backcheck valve. Door must be open to adjust spring closing power. Refer to the chart.

Power Adjustment Chart
				Maximum Door Size
	Door	Type of Inst.	*	34" (0.85M)	36" (0.90M)	40" (1.00M)	44" (1.10M)	48" (1.20M)
CA1601	INT	Regular Arm Top Jamb	Full 360° Turns	2	4	6	10	12
	EXT	Regular Arm Top Jamb		3	5	8	11	14
*30 Full (360°) turns maximum available = turns as shipped

1600 Series Cushion Stop Non-Handed Door Closer

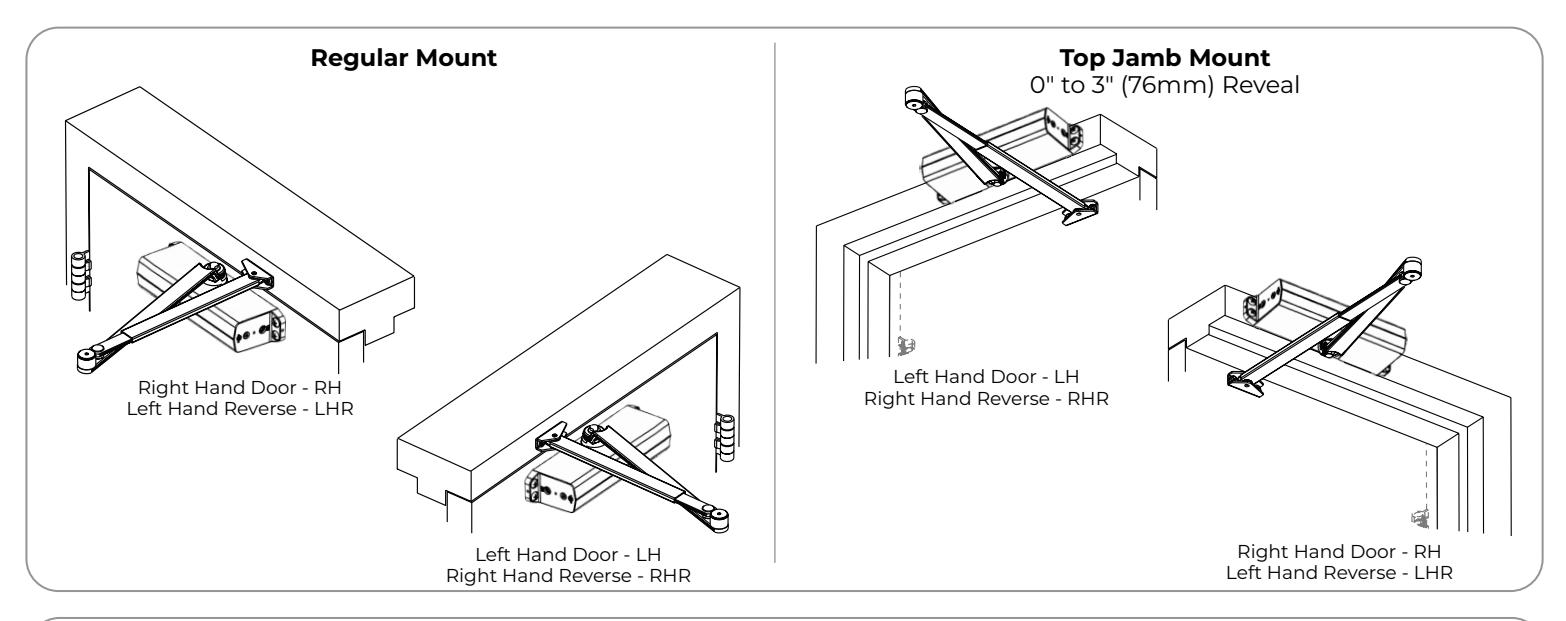

CA1600 Regular Mount Installation (Right Hand Shown)

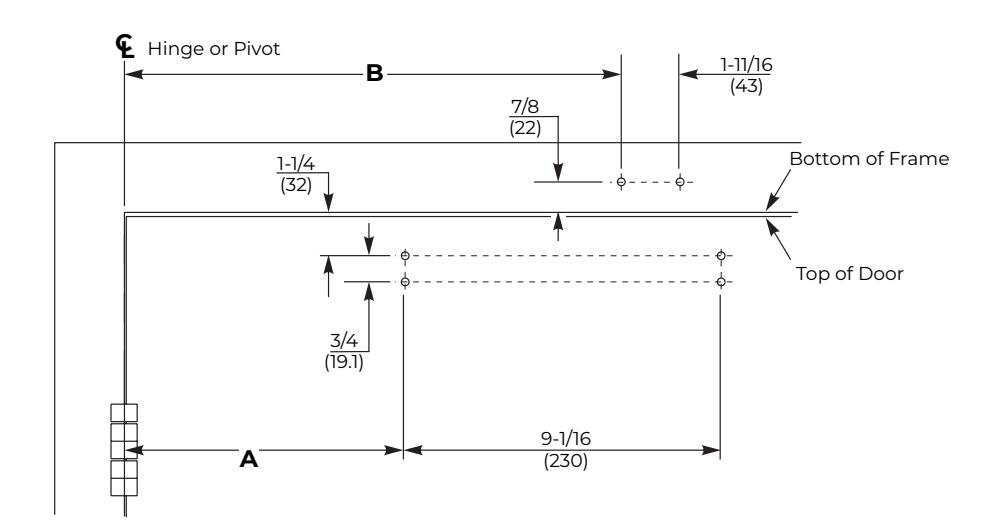

1. Prepare door and frame.

Hold Open	A	B
Up to 85°	8-3/4 (222)	14-3/4 (375)
85° - 90°	8-1/4 (210)	14-1/4 (362)
90° - 95°	7-3/4 (197)	13-3/4 (349)
95° - 100°	7-1/4 (184)	13-1/4 (337)
100° - 105°	6-3/4 (171)	12-3/4 (324)
105° - 110°	6-3/8 (162)	12-3/8 (314)

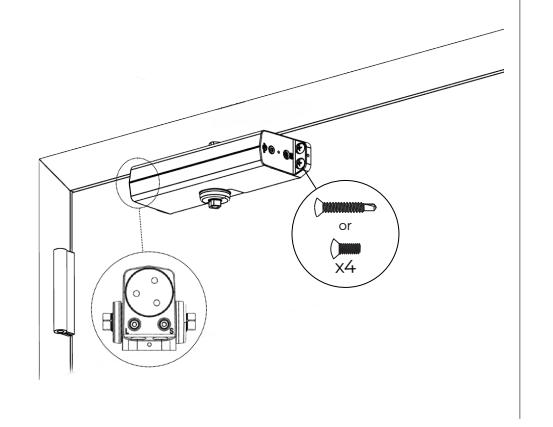

2. Mount closer to door.

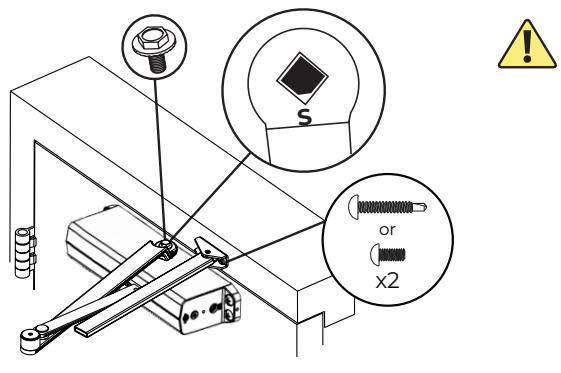

3. Install separate arms.

RH and LH: Position flat at S

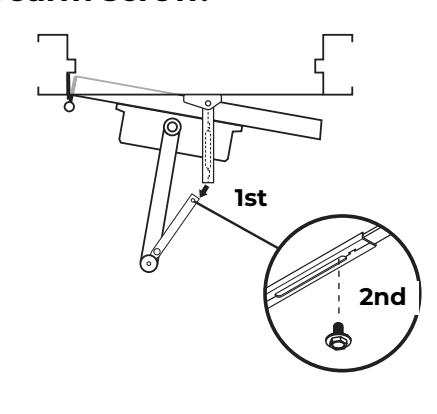

4. Connect arms and install forearm screw.

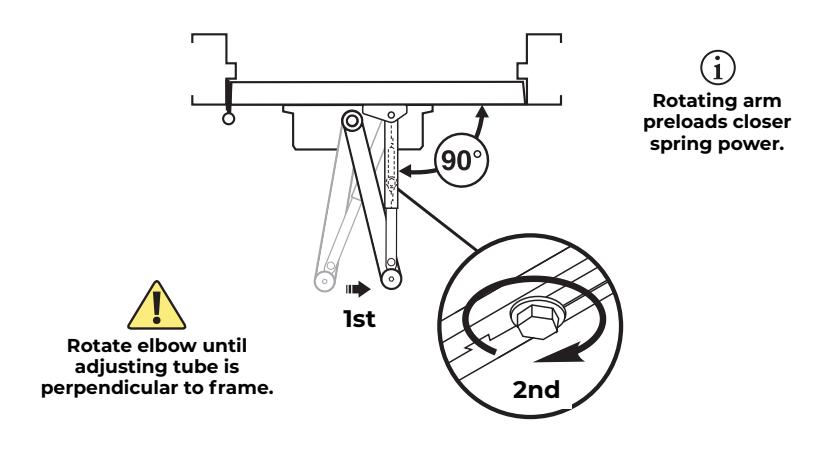

5. Preload spring and tighten forearm screw.

The CA1600 Non Hold Open Closer - Regular Arm has now been installed.

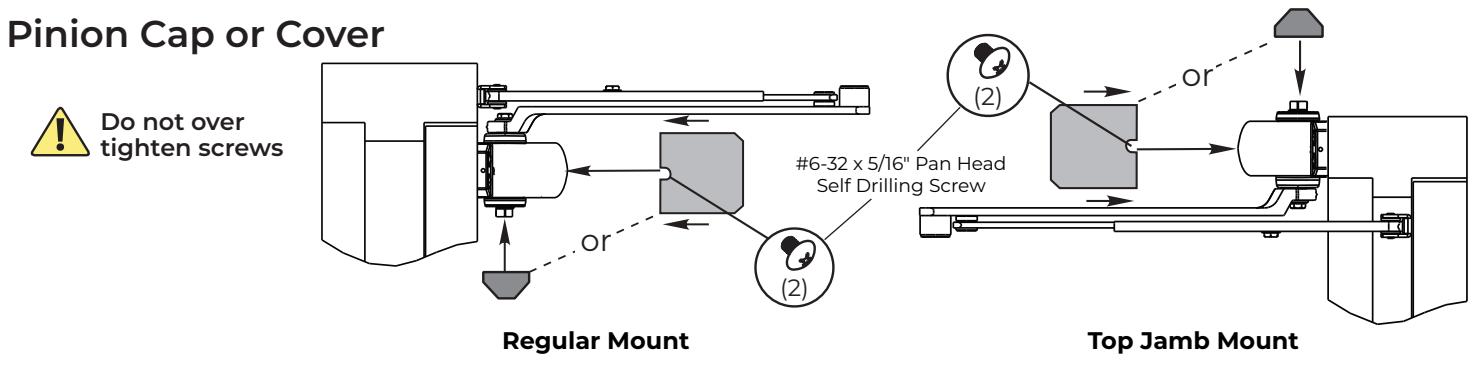

Go to page 2 for closer adjustments and decorative cap or cover installation.

3

ASSA ABLOY

CA1600 Top Jamb Mount Installation (Right Hand Shown)

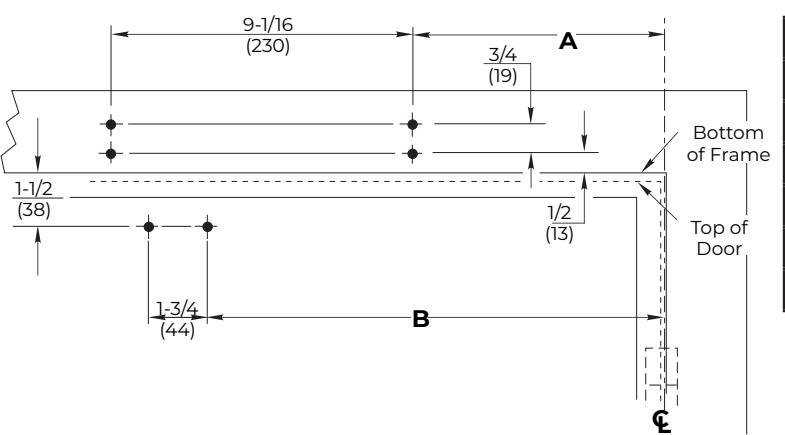

1. Prepare door and frame.

	_
Hold Open	Α	В
Up to 85°	8-1/8 (206)	14-1/4 (362)
85° - 90°	7-5/8 (194)	13-3/4 (349)
90° - 95°	7 (178)	12-7/8 (327)
95° - 100°	6-1/2 (165)	12-3/8 (314)
100° - 105°	6 (152)	11-7/8 (302)
105° - 110°	5-1/2 (140)	11-5/8 (295)
	. ,

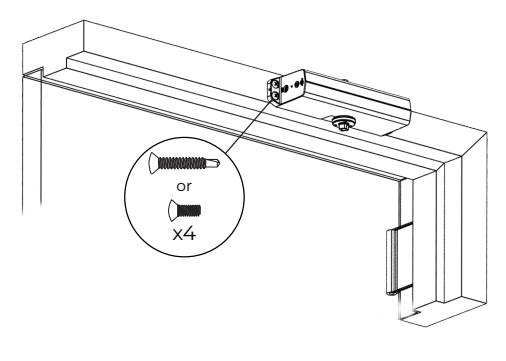

2. Mount closer to door.

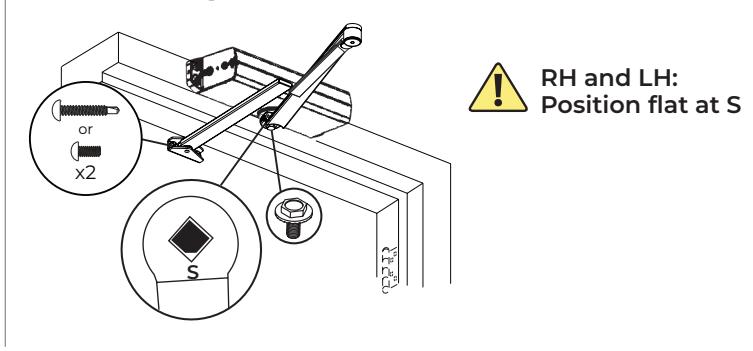

3. Install separate arms.

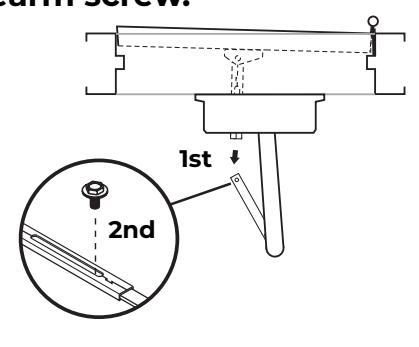

4. Connect arms and install forearm screw.

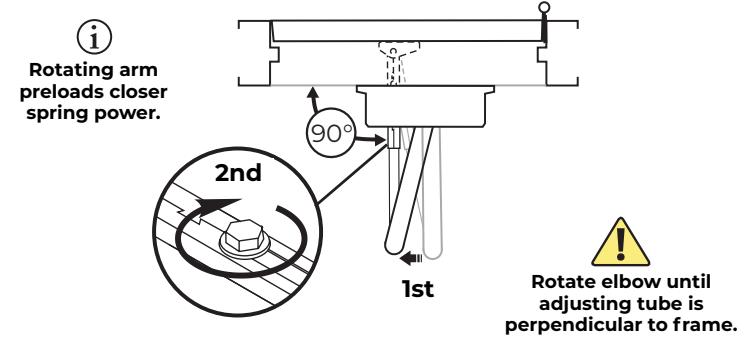

5. Preload spring and tighten forearm screw.

The CA1600 Non Hold Open Closer - Top Jamb Mount has now been installed.

• Go to page 2 for closer adjustments and decorative cap or cover installation.

Technical Product Support: Monroe, NC 28112 USA Phone: 877.974.2255 ext: 2
