147 x 1-1/2" Pivot Set

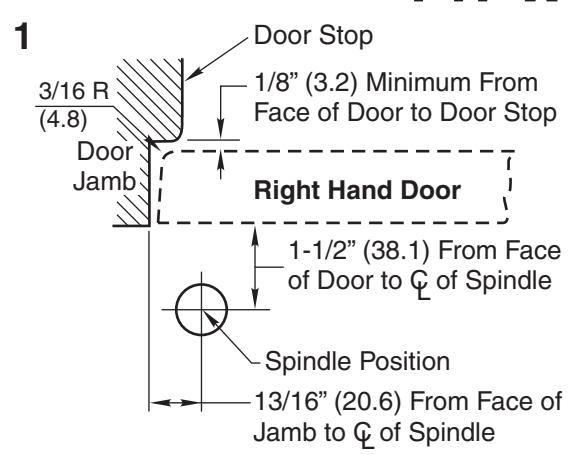

1. Install Pivot

• A. Measure 13/16" (20.6) out from door jamb.
• B. Allow 1/8" (3.2) min. clearance from door stop to door face. Measure door thickness. Add 1-1/2" (38.1).
• C. Where lines meet determines center line of closer.

2. Set Pivot Set

• A. Prepare floor to receive floor portion. SET ANCHORS PROVIDED SECURELY IN FLOOR.
• B. Floor portion must be level. Level in both directions per illustration. Important:
• C. Floor portion should be parallel with center line of door.
• D. Insert pivot stud in floor portion.

Stud Level in Both

Directions

Floor Portion

3. Install Top Pivot & Bottom Arm

• A. Install top pivot in door per template.
• B. Install top pivot in frame per template.
• C. Install arm in door per template.
• D. Center line of pivot should line up with center line of spindle. Use plumb line as illustrated.
• E. If side jamb pivot is used, see required template.

3 IMPORTANT:

Pivot

2

Use plumb line to make sure that center line of top pivot pin lines up with center line of closer spindle.

Arm Cap Screw Arm Cap

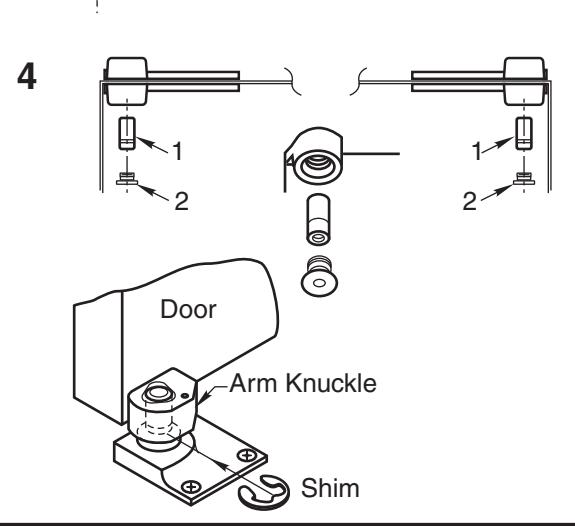

4. Hang Door

• A. Set door on pivot set spindle.
• B. Push Item 1 "top pivot pin" into place. Attach "cap" Item 2. CAP MUST BE TIGHTENED SECURELY.
• C. See Installation Instructions for M19/M190 x 1-1/2 Offset Intermediate Pivot.
• D. If door drags at floor (or threshold, if used) loosen arm locking screw and raise door to desired clearance and insert one or more 1/16" (1.6) shims. Retighten arm locking screw securely.
• E. Put arm cap on arm and secure tightly with cap screw furnished.

How To Determine Hand of Door LH RH

Face a door swinging open away from you. If it opens to the right, it is right hand. If it opens to the left, it is left hand.

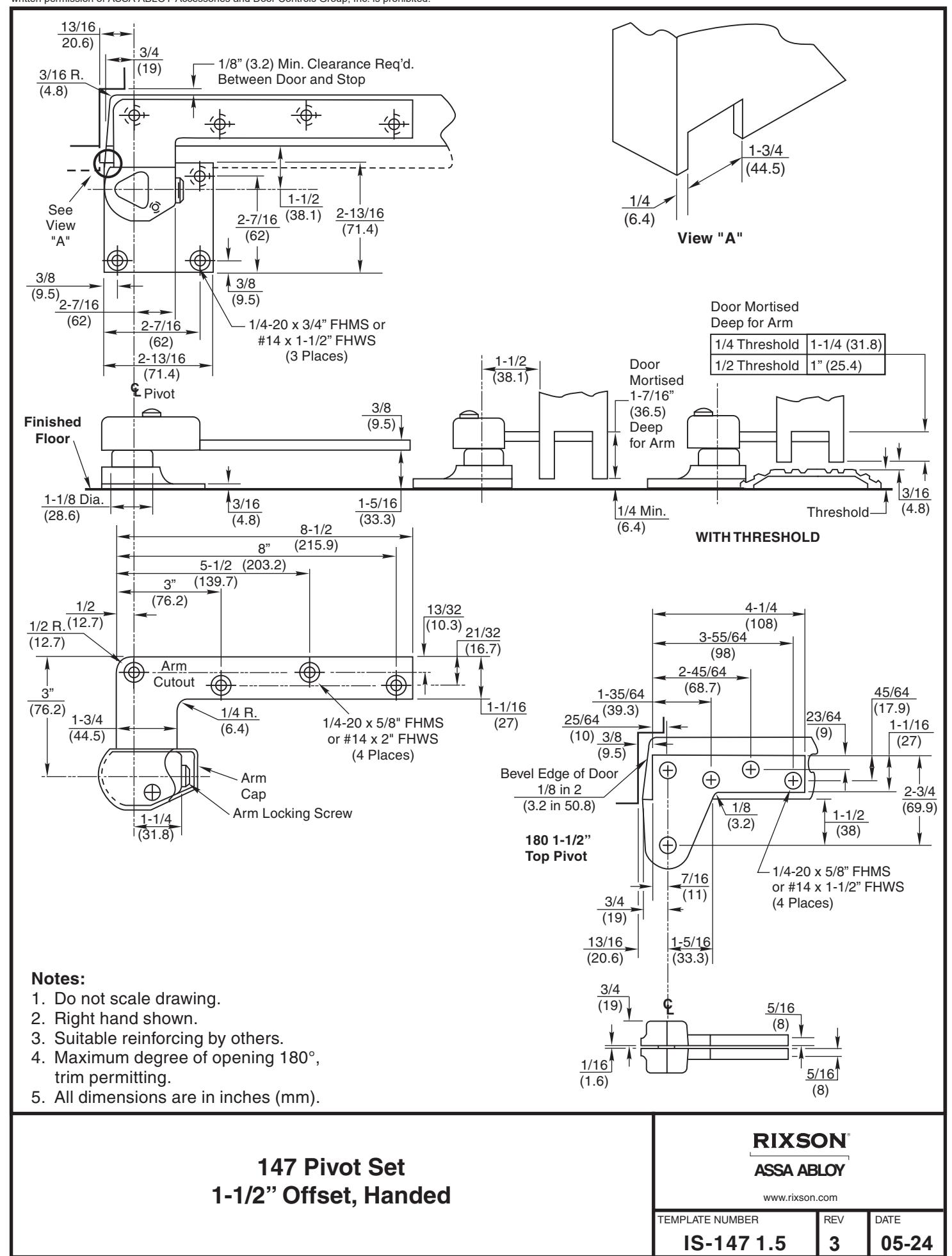

147 Pivot Set 1-1/2" Offset, Handed

ASSA ABLOY RIXSON ®

www.rixson.com

TEMPLATE NUMBER DATE IS-147 1.5

REV 3

05-24
