Norton Rixson 127 Series Floor Closer, 3, 4 Offset Template_OS10110

Open the original PDF document

View PDF

Notes:

  • 1. Do not scale drawing.
  • 2. Minimum backset or reveal of door is 1-5/8".
  • 3. All dimensions given in inches.

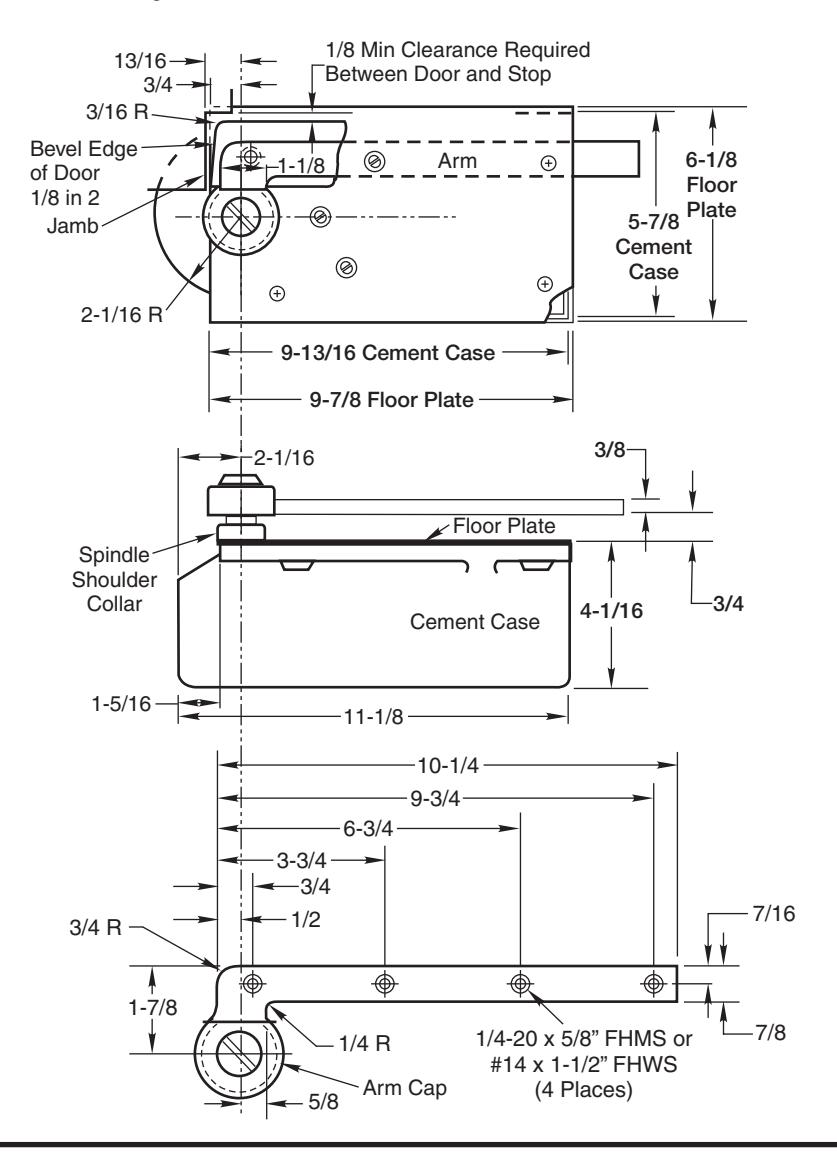

127 Floor Closer 3/4" Offset

RIXSON

ASSA ABLOY

TEMPLATE NUMBER OS10110

Surface of Finished Floor

DATE

12/21
