117 X 1-1/2 Pivot Set

Determine Hand of Door LH RH

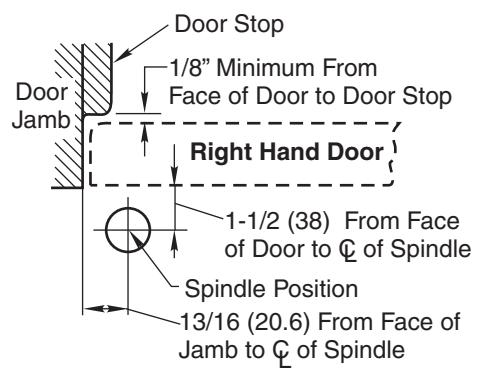

1 . LOCATE PIVOT

• A. Measure 13/16 (20.6) from door jamb.
• B. Allow 1/8 (3.2) minimum clearance from door stop to door face. Measure door thickness; add 3/4 (19).
• C. Where lines meet determines centerline of pivot.

2 . SET PIVOT SET

• A. Prepare floor to receive Floor Portion. Set anchors provided securely in floor.

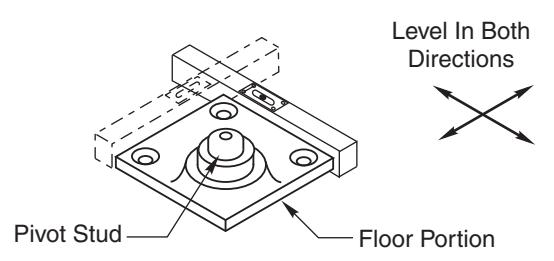

• B. IMPORTANT: Floor Portions must be level. Level in both directions per illustration.
• C. Floor Portion should be parallel with face of door.

3 . INSTALL TOP PIVOT AND PIVOT ARM.

• A. Install top pivot in door per template.
• B. Install top pivot in frame per template.
• C. Install arm in door per template.

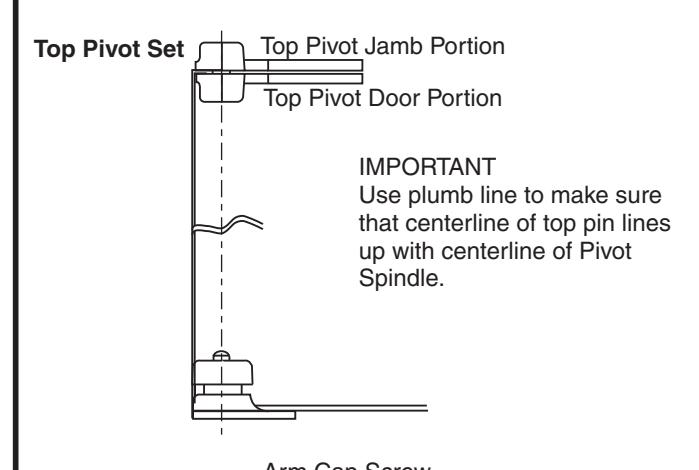

• D. Centerline of top pivot should line up with centerline of spindle.
• E. If side jamb pivot is used, see required template, T-M19-1-1/2.

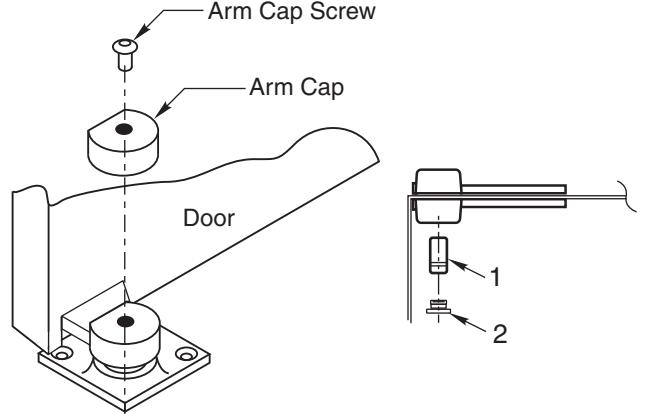

4 . HANG DOOR

• A. Set door on Floor Portion.
• B. . Push top pivot pin (1) up into place and replace cap (2).
• C. Put arm cap on arm and secure tightly with screw furnished.

Do Not Scale Drawing

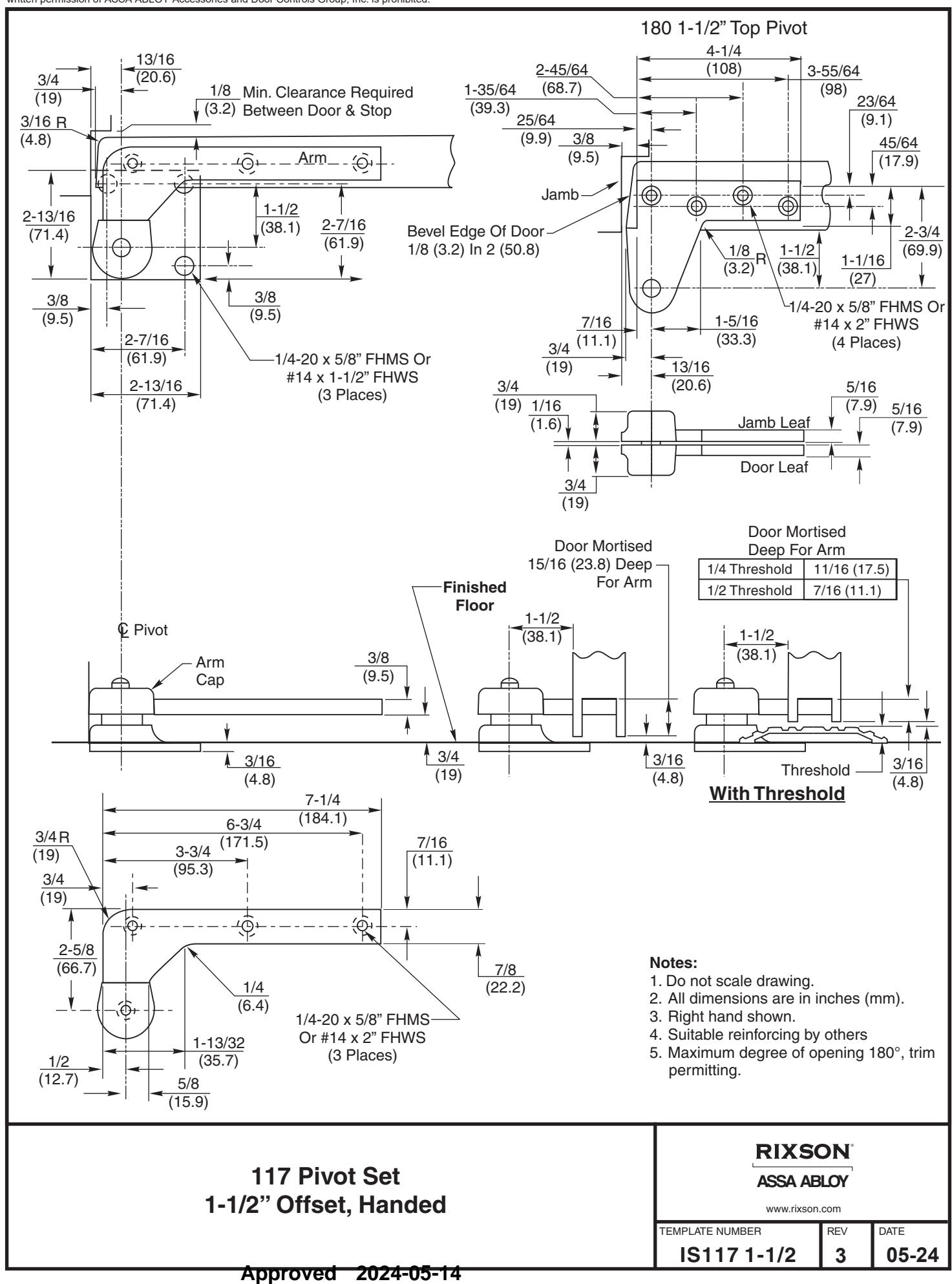

117 Pivot Set 1-1/2" Offset, Handed

ASSA ABLOY RIXSON ®

www.rixson.com

TEMPLATE NUMBER DATE

IS117 1-1/2

07-09

Approved 2024-05-14
