117-1/4 Pivot Set

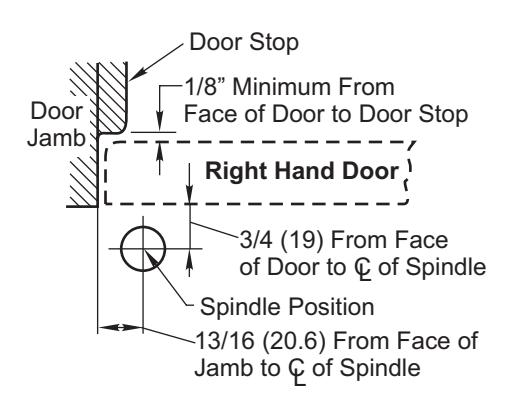

1 . LOCATE PIVOT

• A. Measure 13/16 (20.6) from door jamb.
• B. Allow 1/8 (3.2) minimum clearance from door stop to door face. Measure door thickness; add 3/4 (19).
• C. Where lines meet determines centerline of pivot.

2 . SET PIVOT SET (117-1/4)

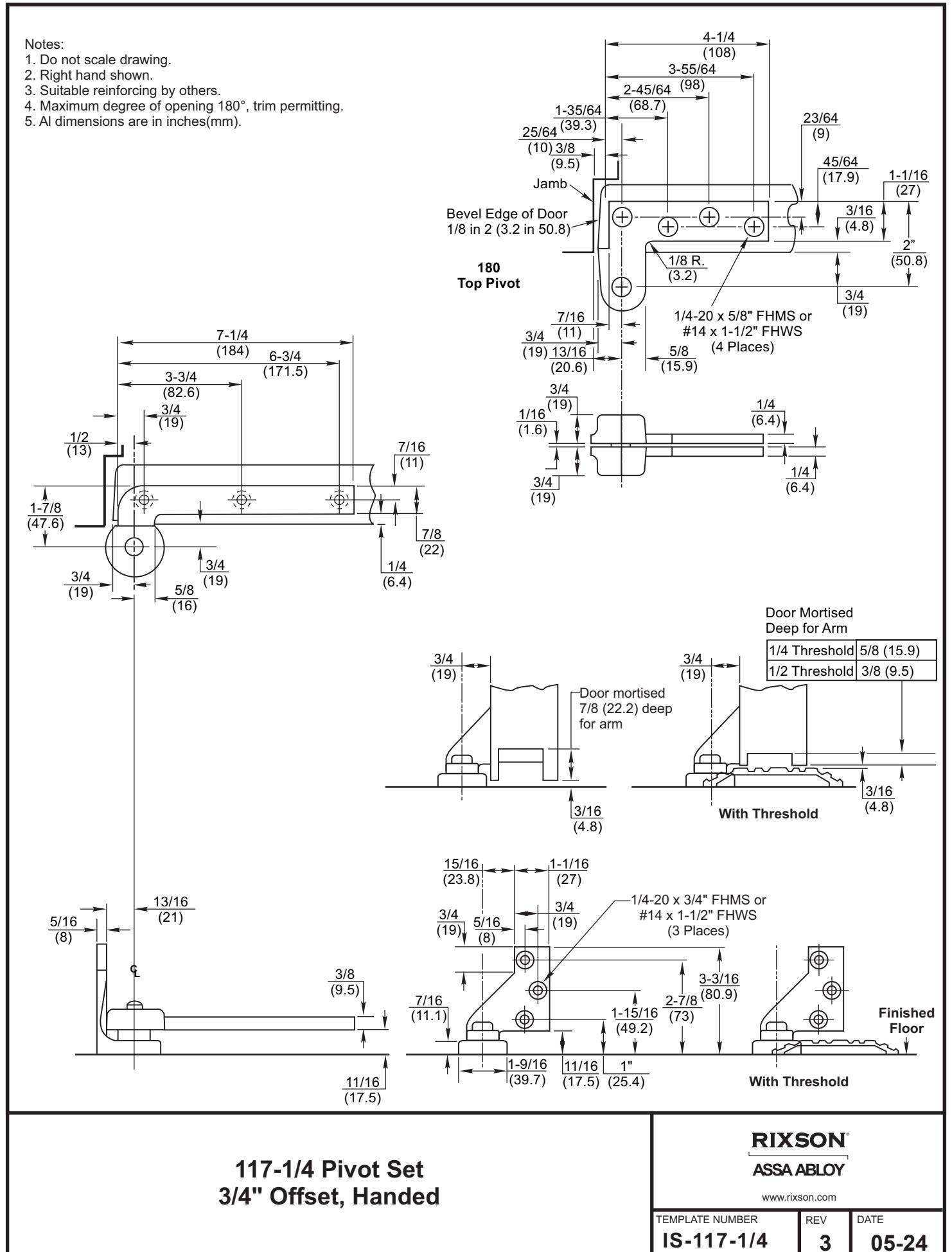

• A. Mortise jamb to receive jamb leaf as shown on reverse side.

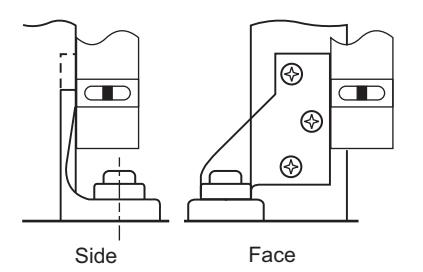

• B. IMPORTANT: Pivot end of jamb leaf must be level. Place levels per illustration.

3 . INSTALL TOP PIVOT AND PIVOT ARM.

• A. Install top pivot in door per template.
• B. Install top pivot in frame per template.
• C. Install arm in door per template.

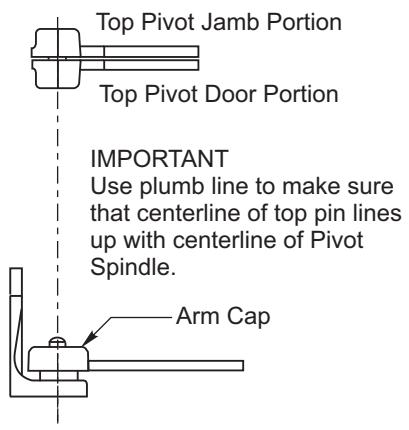

• D. Centerline of top pivot should line up with centerline of spindle.
• E. If side jamb pivot is used, see required template M19.

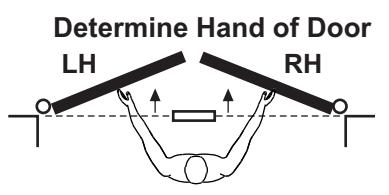

Right Hand installation

4 . HANG DOOR

• A. Set door on Floor Portion.
• B. Push top pivot pin (1) up into place and replace cap (2).
• C. Put arm cap on arm and secure tightly with screw furnished.

Do Not Scale Drawing

117-1/4 Pivot Set 3/4" Offset, Handed

ASSA ABLOY RIXSON ®

www.rixson.com

TEMPLATE NUMBER DATE IS-117-1/4

05-24 REV 3
