Special Top Pivot 102 x 180 Top Pivot x 1-1/2" Offset

RIXSON

ASSA ABLOY

TEMPLATE NUMBER TP40070

DATE 12/23

Approved 2023-12-15

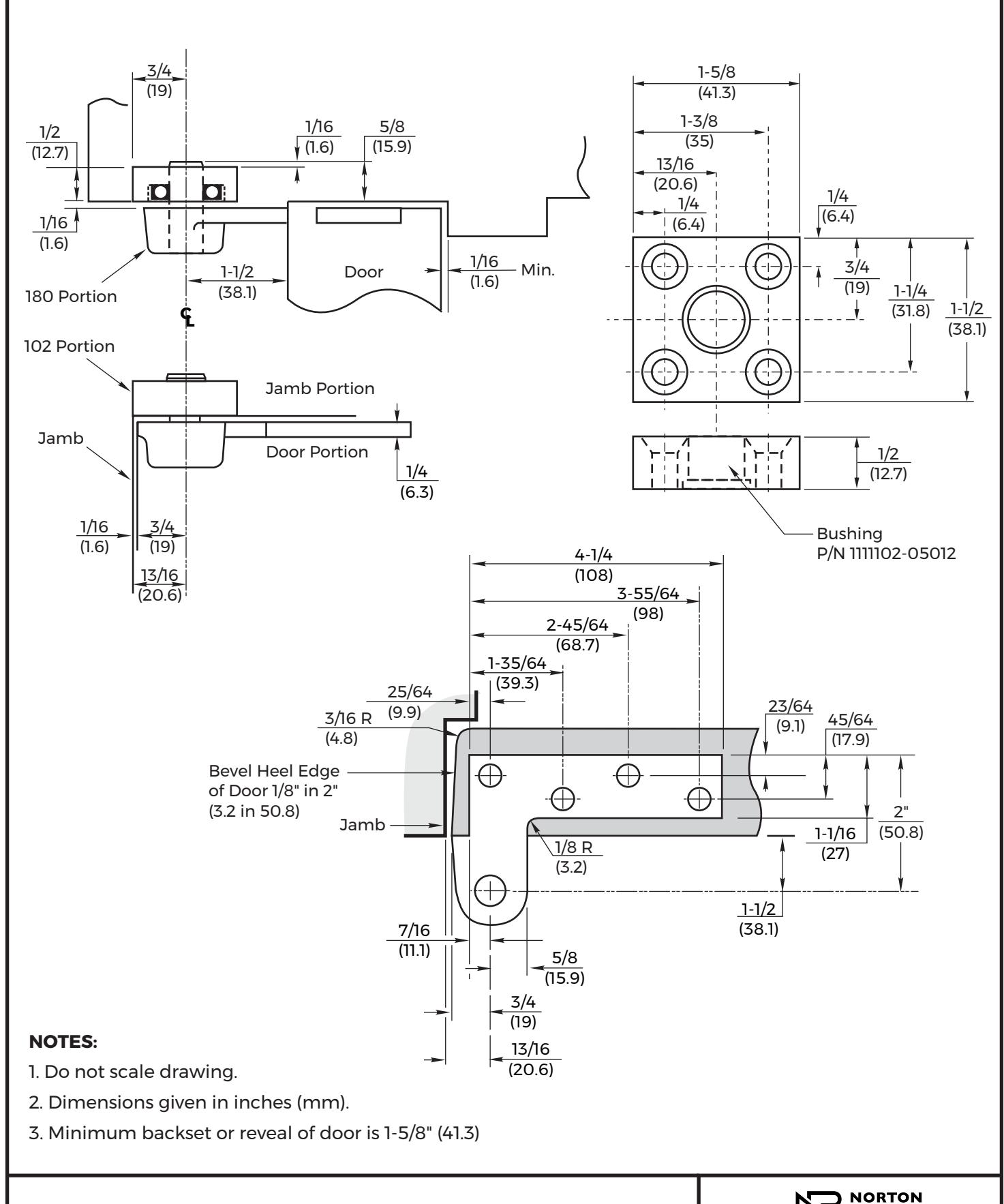

102 x 180 Top Pivot

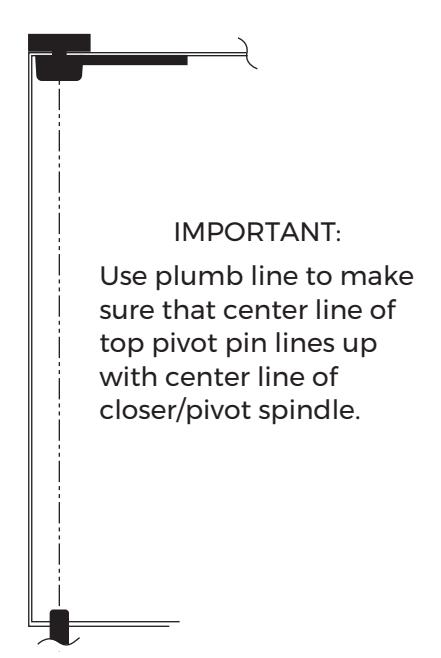

Location

Door Stop 1/8" Minimum From Face of Door to Door Stop Door Jamb 13/16 R Right Hand Door 1-1/2" From Face of Door to C of Spindle Spindle Position 13/16" From Face of Jamb to C of Spindle

Attachment

• 1. Attach door leaf of top pivot to door.
• 2. Attach jamb leaf of top pivot to frame.
• 3. If side jamb pivot is used, see required template for instructions.

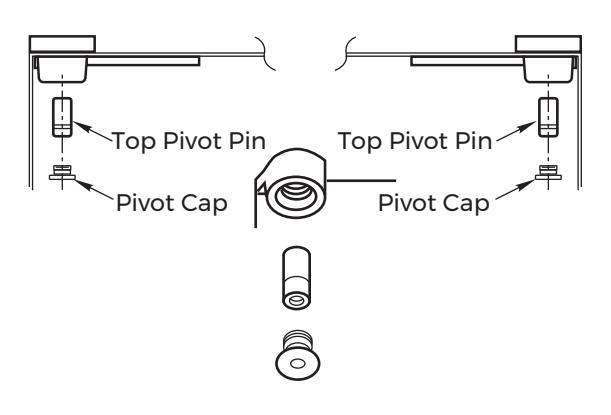

• 4. Push top pivot pin into place. Tighten set screw.
• 5. Attach pivot cap. CAP MUST BE TIGHTENED SECURELY.

How To Determine Hand of Door

Face a door swinging open away from you. If it opens to the right, it is right hand. If it opens to the left, it is left hand.

Special Top Pivot 102 x 180 Top Pivot x 1-1/2" Offset

NORTON RIXSON ASSA ABLOY

TEMPLATE NUMBER REV

TP40070 3 12/23

Approved 2023-12-15
