Norton ®

Installation Instructions

ASSA ABLOY

An Incorrectly installed or improperly adjusted door closer can cause property damage or personal injury. These installation instructions should be followed to avoid the possibility of misapplication or misadjustment.

"DA" suffix (Delayed Action) is an optional feature.

NOTE: For special applications a separate door and frame preparation template is packed with these instructions. Use this instruction sheet for installation sequence and closer adjustments only.

• Doors should be hung on ball bearing or anti-friction hinges.
• A separate door stop is recommended.
• Door and frame must be properly reinforced.
• Always adjust spring power before adjusting control.
• Adjust closing time speed between 3 and 7 seconds from 90° to 0°. Greater closing times may be required for elderly or handicapped.
• These door closers should NOT be installed on the exposed side (weather side) of exterior doors.

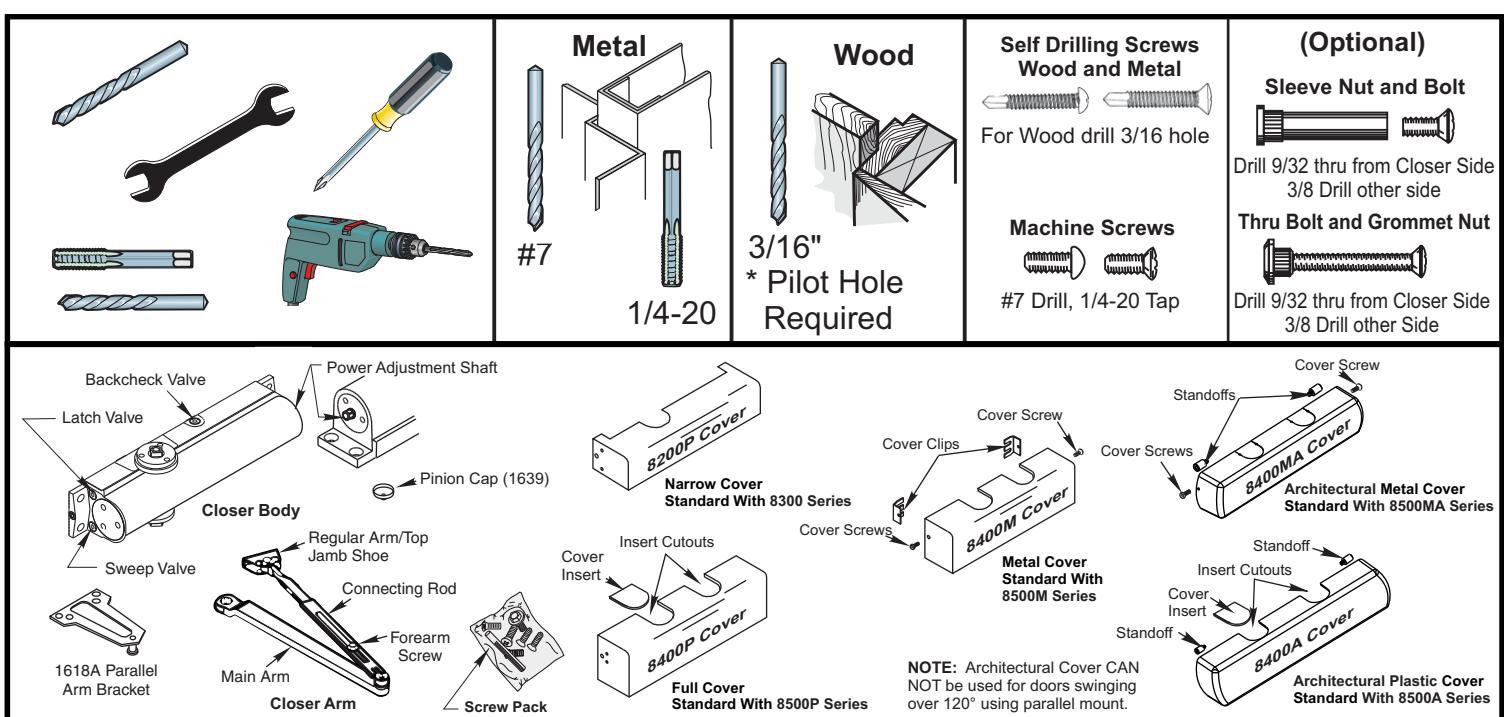

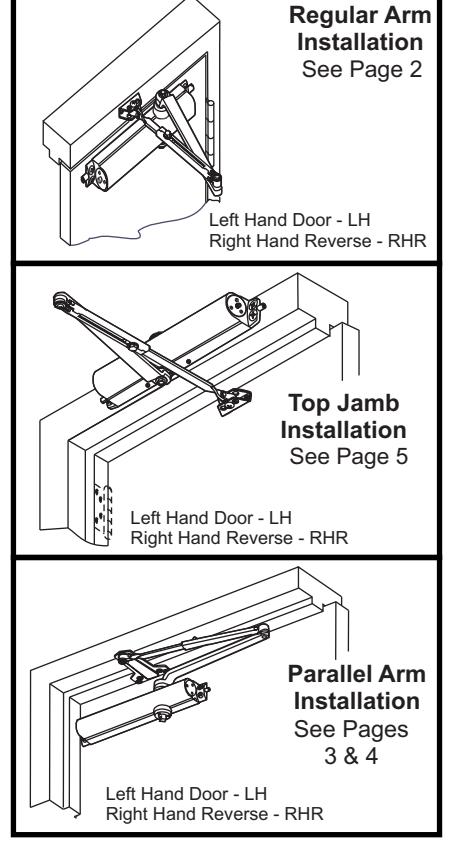

8000 Series Tri-Style

Non Handed Door Closer Non Hold Open Models

Sized (Sizes 2,3,4,5,6) 8100 8300 8500

Adjustable (Sizes 1 thru 6) 8301

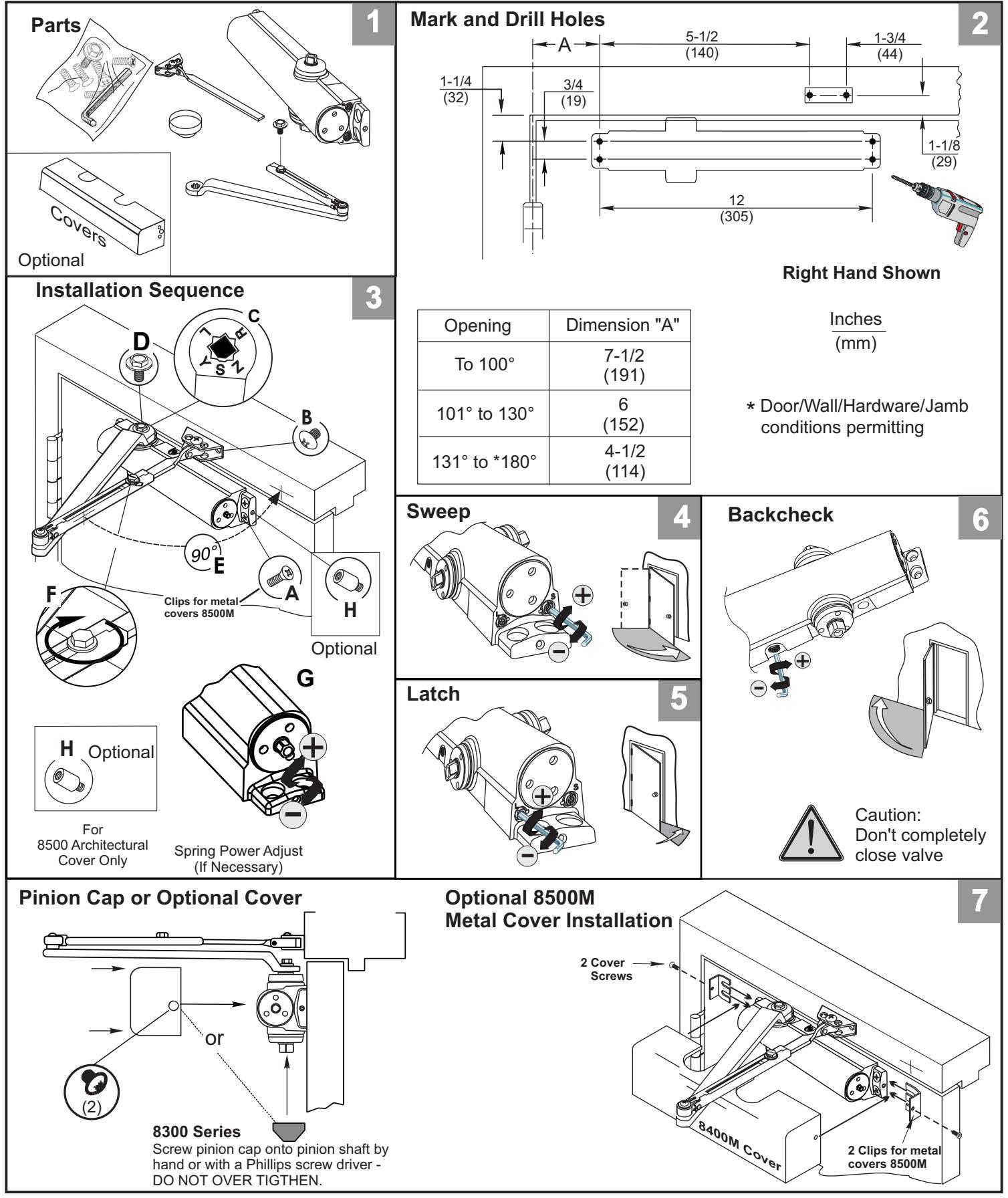

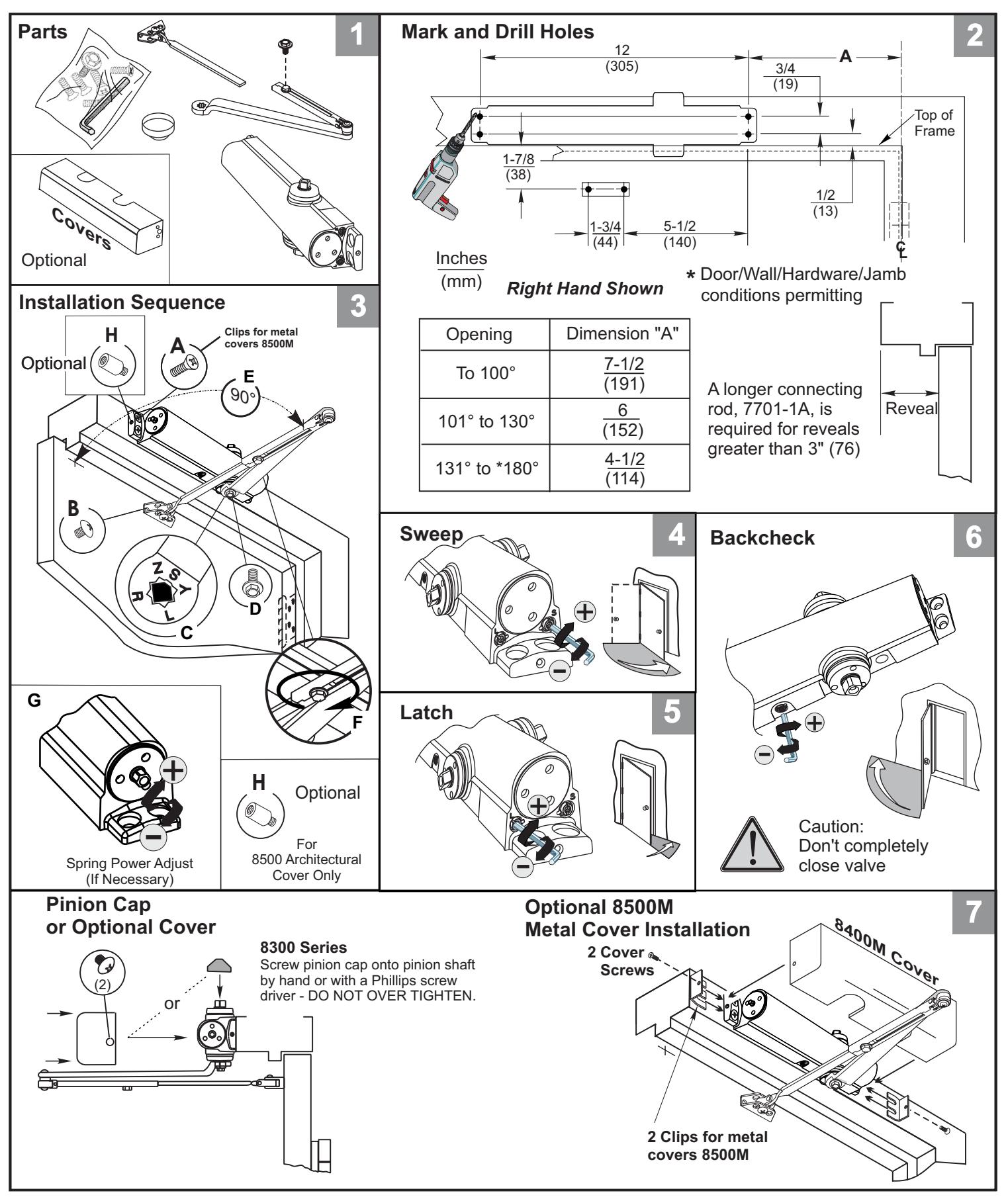

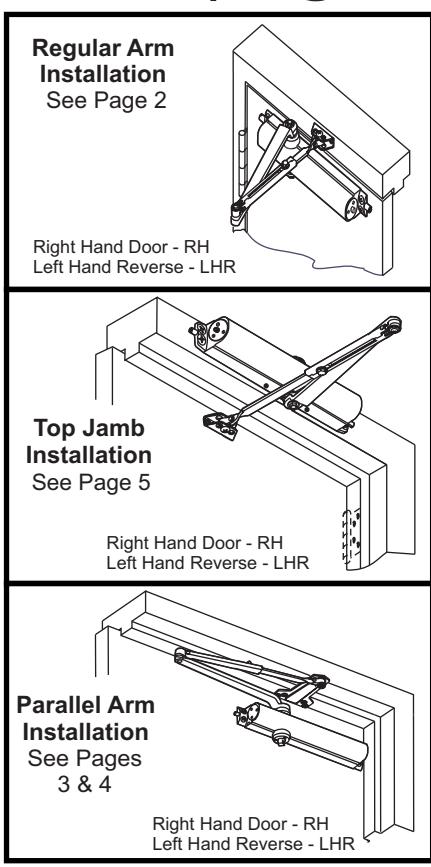

Non Hold Open Door Closers — Regular Arm

Norton ^®

ASSA ABLOY

Norton ^®

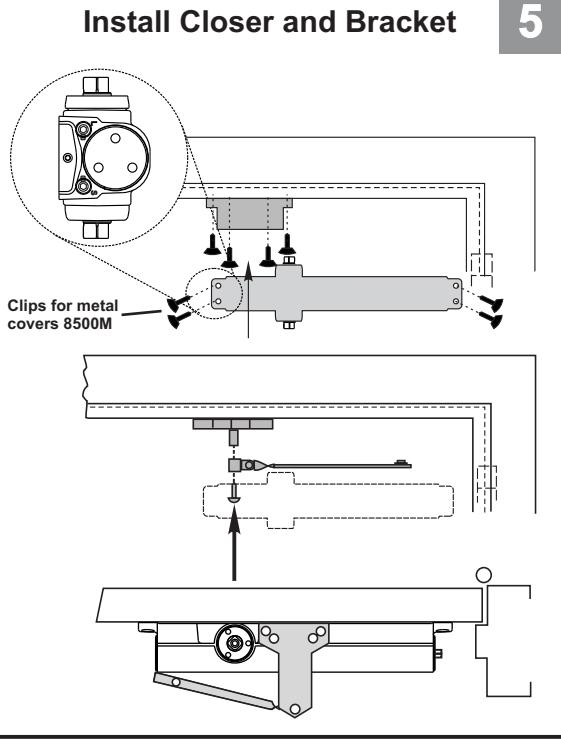

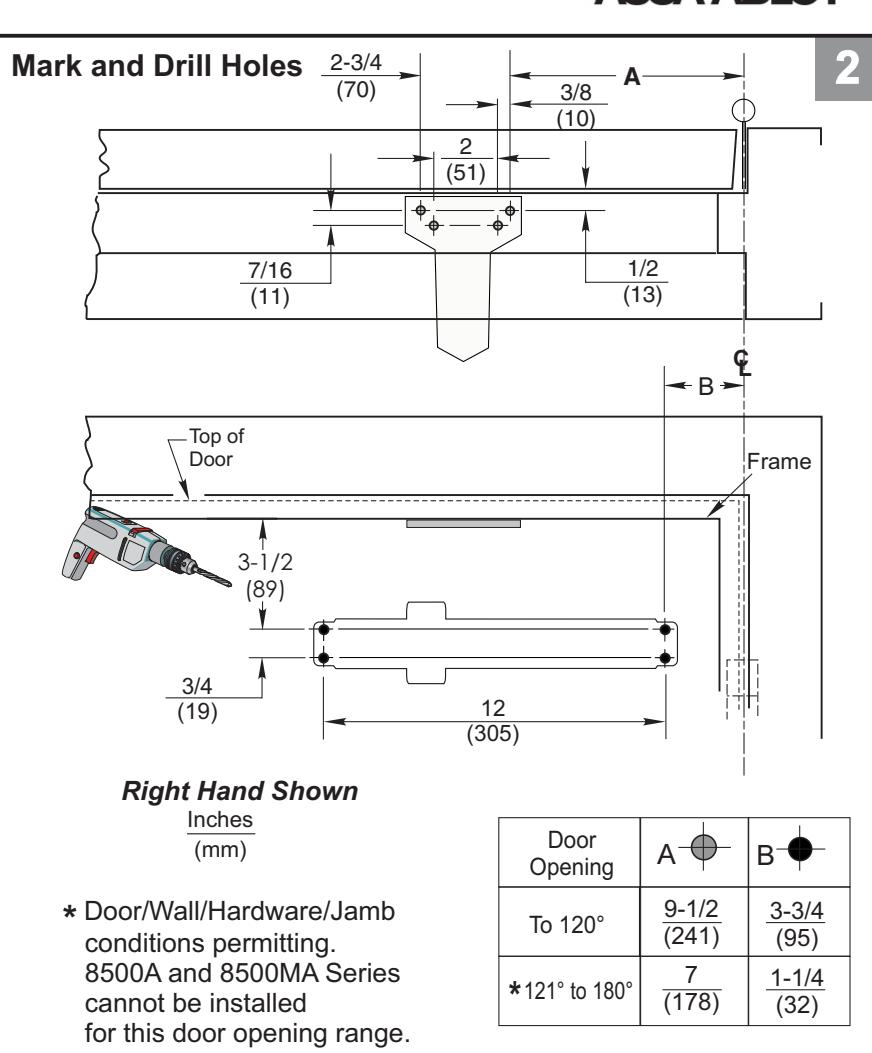

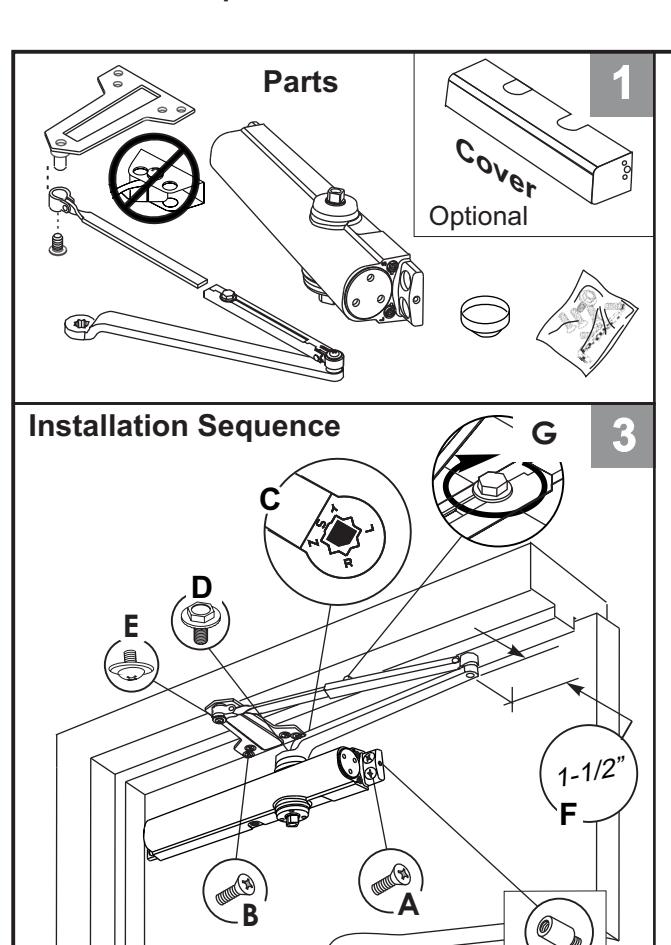

Non Hold Open Door Closers — Top Jamb Arm

ASSA ABLOY

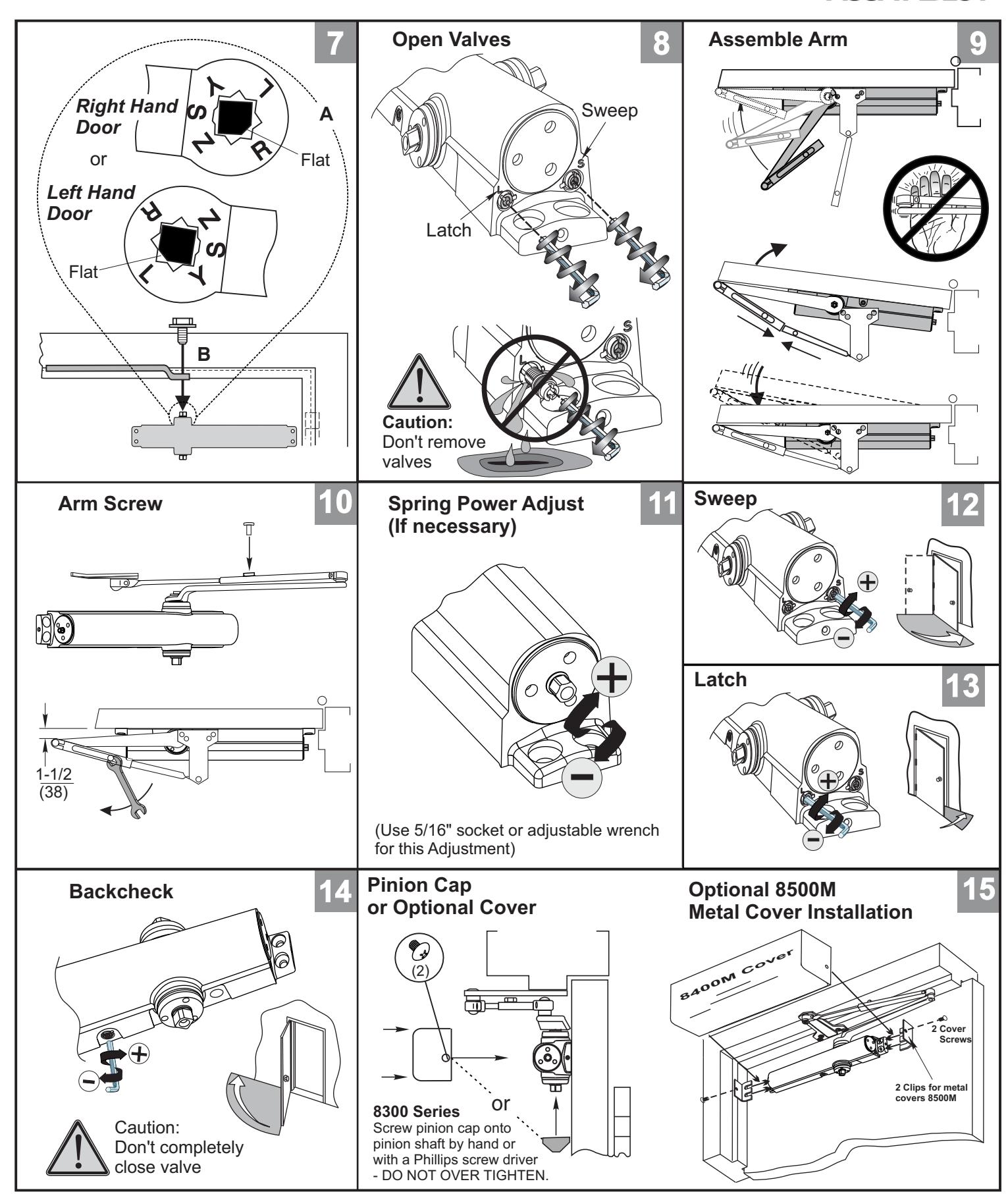

Non Hold Open Door Closers — Parallel Arm

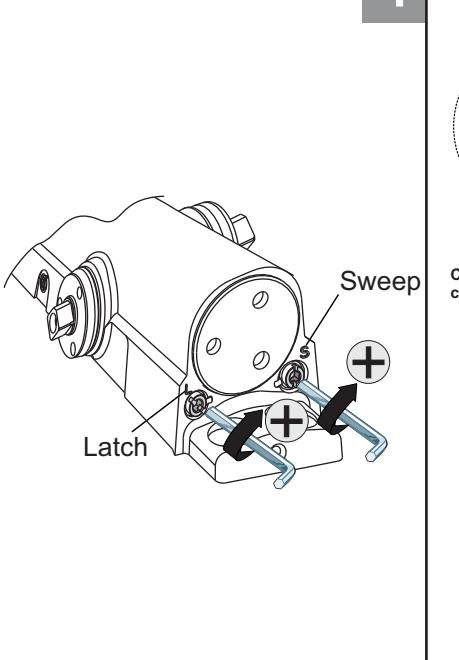

Close Valves

Optional

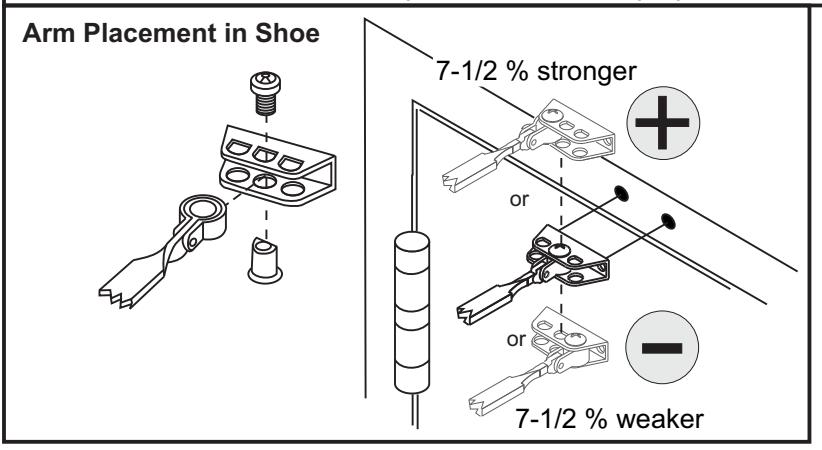

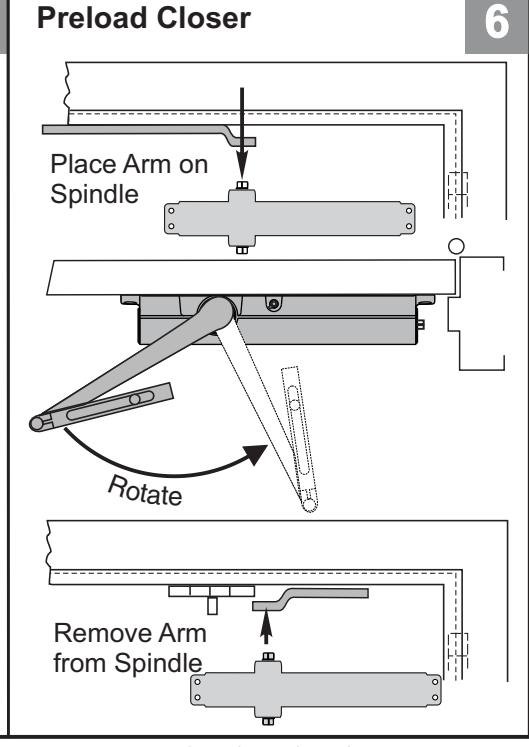

Non Hold Open Door Closers — Parallel Arm

ASSA ABLOY

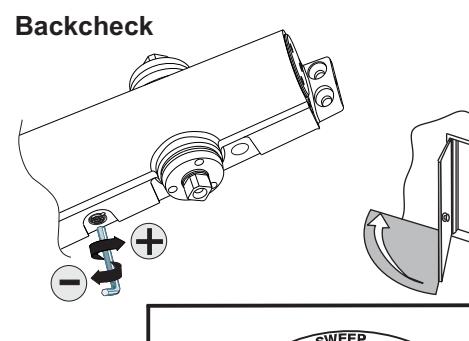

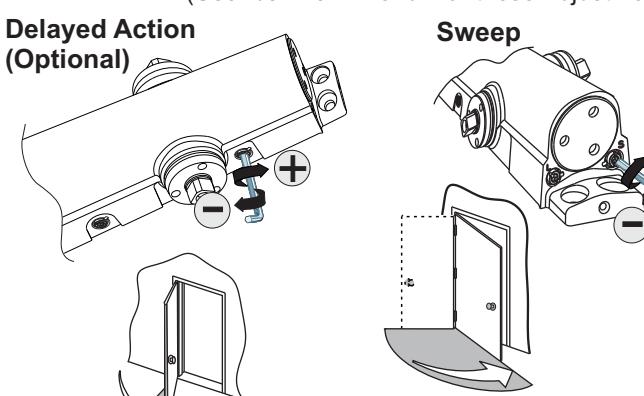

(Use 1/8" Hex Wrench for these Adjustments)

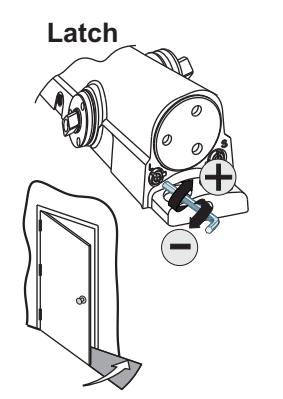

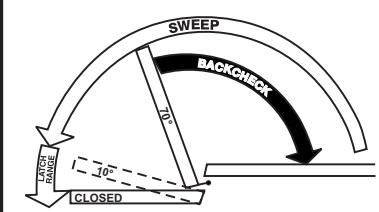

Adjust Closing Speed Time to between 3 to 7 seconds from 90°. Use of the door by handicapped, elderly or small children may require greater closing time.

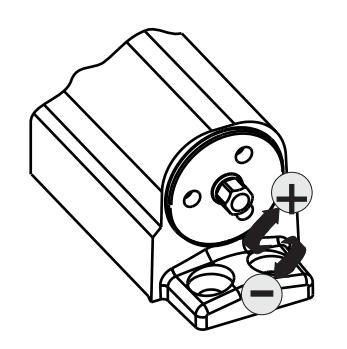

Spring Power Adjust

(Use 5/16" Socket or Adjustable Wrench for this Adjustment)

	(8301 & 8501 Only)				Number of Turns Required
		DOOR	TYPE OF INST.	*	MAXIMUM DOOR SIZE
					32" (0.85M)	36" (0.90M)	42" (1.00M)	48" (1.20M)
8100/8300/8500	00	INTERIOR	Regular Arm Top Jamb	TURNS OF OWER NT WRENC	5	8	11	13
	30/85		Parallel Arm		7	10	13	16
	00/83	TERIOR	Regular Arm Top Jamb		7	10	13	16
	8		Parallel Arm		a	12	15	18

*20 FULL (360°) TURNS MAXIMUM AVAILABLE Closer is shipped set at mid range setting = 10 turns

The closing force for series 8301 & 8501 door closers is adjustable from a size 1 to a size 6, as outlined in ANSI Standard A156.4. When these series of door closers are installed and adjusted to conform to ADA reduced opening force requirements (5 lbs max.) for interior doors, they may not have adequate closing force to reliably close and latch the door. Power adjustments charted on this page are recommended where possible, to ensure proper door control.

By law the Americans with Disabilities Act (ADA) may require that door closer installation comply with accessability guidelines.

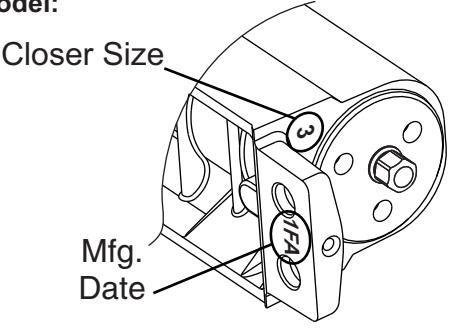

To identify your model:

Blank = 8301/8501

2 = 8302/8502

3 = 8303/85034 = 8304/8504

5 = 8305/8505

6 = 8306/8506
