Norton 8000 Series Door Closer UNI-8300 UNI-8301 UNI-8500 UNI-8501 Unitrol Parallel Arm with or without 8148 Drop Plate with or without 6190 Bracket Template
Open the original PDF document
View PDF
| Preparation for Fasteners | |||||||
|---|---|---|---|---|---|---|---|
| Fasteners | Application | Door or Frame | Drill Sizes | ||||
| Sex nuts and bolts |
Closer
Drop Plate |
Hollow Metal |
9/32" (7.00mm) through
3/8" (9.50mm) door face opposite to closer |
||||
|
Alluminum
or Wood |
3/8" (9.50mm) through | ||||||
|
#14 x 1-1/4" (32mm)
type "A" S.M. screws |
Soffit plate
6190 Bracket |
Wood | 3/16" (4.30mm) | ||||
| 1/4-20 machine screw | Ī | Metal | drill: #7 (.201") tap: 1/4-20 | ||||
| Through bolts and grommet nuts | Optional | All | 9/32" (7.00mm) through 3/8" (9.50mm) dia. x 3/8" (10mm) deep, door face opposite to closer | ||||
|
Door Opening
Angle |
Dimensions | |||||
|---|---|---|---|---|---|---|
|
Hold
Open |
Dead
Stop |
Butts and
Offset Pivots |
Center Pivots | |||
| * | · | Α | В | Α | В | |
| 85° | 90° | 9-3/4 | 15-1/8 | 10-1/8 | 15-1/2 | |
| 90° | 95° | 8-7/8 | 14-1/4 | 9-3/8 | 14-3/4 | |
| 95° | 100° | 8-1/4 | 13-5/8 | 8-5/8 | 14 | |
| 100° | 105° | 7-5/8 | 13 | 8-1/8 | 13-1/2 | |
| 105° | 110° | 7-1/8 | 12-1/2 | 7-5/8 | 13 | |
| 110° | 115° | 6-3/4 | 12-1/8 | 7-1/8 | 12-1/2 | |
| inches | mm. | inches | mm. | inches | mm. |
|---|---|---|---|---|---|
| 5/16 | 8 | 7-1/8 | 181 | 12-1/2 | 317.5 |
| 3/8 | 9.5 | 7-5/8 | 193.5 | 13 | 330 |
| 7/16 | 11 | 8-1/8 | 206 | 13-1/2 | 343 |
| 3/4 | 19 | 8-1/4 | 209.5 | 13-5/8 | 346 |
| 1-1/8 | 28.5 | 8-5/8 | 219 | 14 | 355.5 |
| 1-1/4 | 31.5 | 8-7/8 | 225.5 | 14-1/4 | 362 |
| 2 | 51 | 9-3/8 | 238 | 14-3/4 | 374.5 |
| 2-3/4 | 70 | 9-3/4 | 247.5 | 15-1/8 | 384 |
| 3 | 76 | 10-1/8 | 257 | 15-1/2 | 393.5 |
| 4 | 101.5 | 12 | 3 05 | ||
| 6-3/4 | 171.5 | 12-1/8 | 308 |

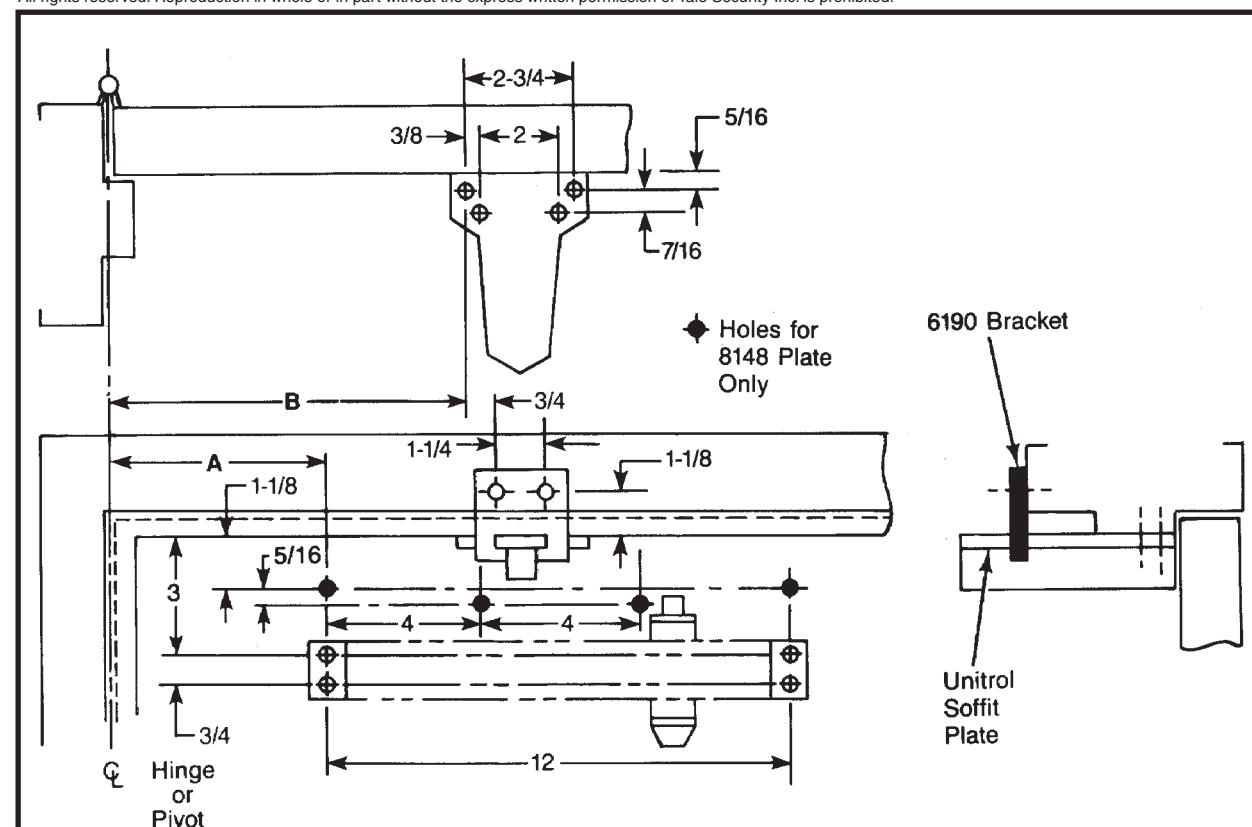

Unitrol Standard Application Series UNI-8300, UNI-8301, UNI-8500, UNI-8501 Doors 42" - 48" (1.05-1.20m) Wide
® Parallel Arm Installation Template Stop Only or Hold Open Unitrol Backcheck or Delayed Action Door Closer With or Without 8148 Drop Plate With or Without 6190 Bracket
www.nortondoorcontrols.com
7380-1353 TEMPLATE NUMBER DATE
09-08
