Norton 8000 Series Door Closer UNI-8300 UNI-8301 UNI-8500 UNI-8501 Unitrol Parallel Arm with or without 8148 Drop Plate Door widths 28-32 Non-Hold Open or Hold Open Template
Open the original PDF document
View PDF
| Preparation for Fasteners | |||||||
|---|---|---|---|---|---|---|---|
| Fasteners | Application | Door or Frame | Drill Sizes | ||||
| Sex nuts and bolts |
Closer
Drop Plate |
Hollow Metal |
9/32" (7.00mm) through
3/8" (9.50mm) door face opposite to closer |
||||
| l | Alluminum or Wood | 3/8" (9.50mm) through | |||||
|
#14 x 1-1/4" (32mm)
type "A" S.M. screws |
Soffit plate
6190 Bracket |
Wood | 3/16" (4.30mm) | ||||
| 1/4-20 machine screw | Metal | drill: #7 (.201") tap: 1/4-20 | |||||
| Through bolts and grommet nuts | Optional | All |
9/32" (7.00mm) through
3/8" (9.50mm) dia. x 3/8" (10mm) deep, door face opposite to closer |
||||
|
Door Opening
Angle |
Dimensions | ||||||
|---|---|---|---|---|---|---|---|
|
Hold
Open |
Dead
Stop |
Butts and
Offset Pivots |
Center Pivots | ||||
| * | Α | В | Α | В | |||
| 85° | 90° | 5-1/8 | 10-3/8 | 5-3/4 | 11 | ||
| 90° | 95° | 4-1/2 | 9-3/4 | 5-1/8 | 10-3/8 | ||
| 95° | 100° | 4 | 9-1/4 | 4-5/8 | 9-7/8 | ||
| 100° | 105° | 3-5/8 | 8-7/8 | 4-1/4 | 9-1/2 | ||
| 105° | 110° | 3-1/4 | 8-1/2 | 3-7/8 | 9-1/8 | ||
| 110° | 115° | 2-7/8 | 8-1/8 | 3-5/8 | 8-7/8 | ||
| inches | mm. | inches | mm. | inches | mm. |
|---|---|---|---|---|---|
| 5/16 | 8 | 3-1/4 | 82.5 | 8-1/2 | 216 |
| 3/8 | 9.5 | 3-5/8 | 92 | 8-7/8 | 225.5 |
| 7/16 | 11 | 3-7/8 | 98.5 | 9-1/8 | 232 |
| 3/4 | 19 | 4 | 101.5 | 9-1/4 | 235 |
| 1-1/8 | 28.5 | 4-1/4 | 108 | 9-1/2 | 241.5 |
| 1-1/4 | 31.5 | 4-1/2 | 114 | 9-3/4 | 247.5 |
| 2 | 51 | 4-5/8 | 117.5 | 9-7/8 | 251 |
| 2-3/4 | 70 | 5-1/8 | 130 | 10-3/8 | 263.5 |
| 2-7/8 | 73 | 5-3/4 | 146 | 11 | 279.5 |
| 3 | 76 | 8-1/8 | 206 | 12 | 305 |

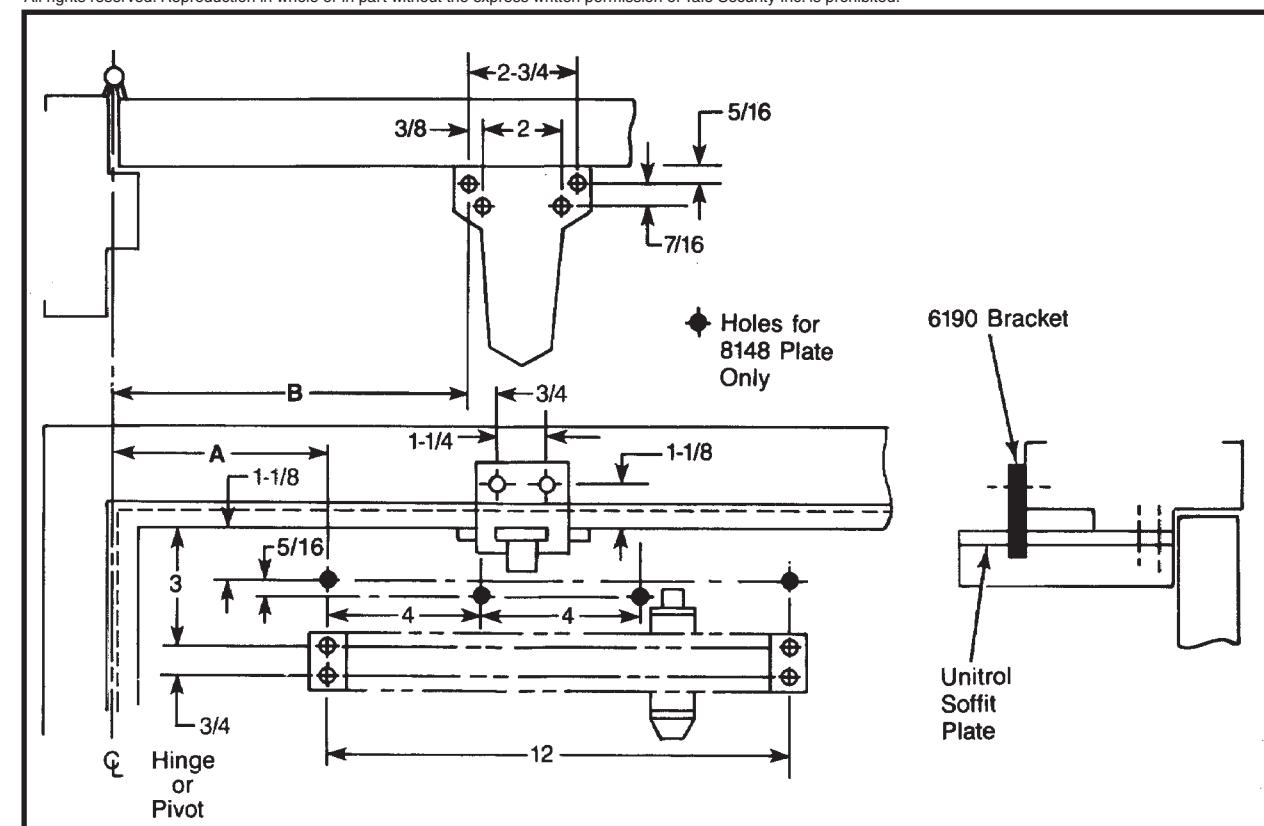

Unitrol Standard Application Series UNI-8300, UNI-8301, UNI-8500, UNI-8501 Doors 28" - 32" (0.70-0.80m) Wide
® Parallel Arm Installation Template Stop Only or Hold Open Unitrol Backcheck or Delayed Action Door Closer With or Without 8148 Drop Plate
www.nortondoorcontrols.com
TEMPLATE NUMBER DATE
7380-1351
09-08
