Installation Instructions
An Incorrectly installed or improperly adjusted door closer can cause property damage or personal injury. These installation instructions should be followed to avoid the possibility of misapplication or misadjustment.
8000 Series Non Handed Door Closer Non Hold Open Models
Regular Arm Installation Adjustable (Sizes 1 thru 6)
S8101 S8301 S8501

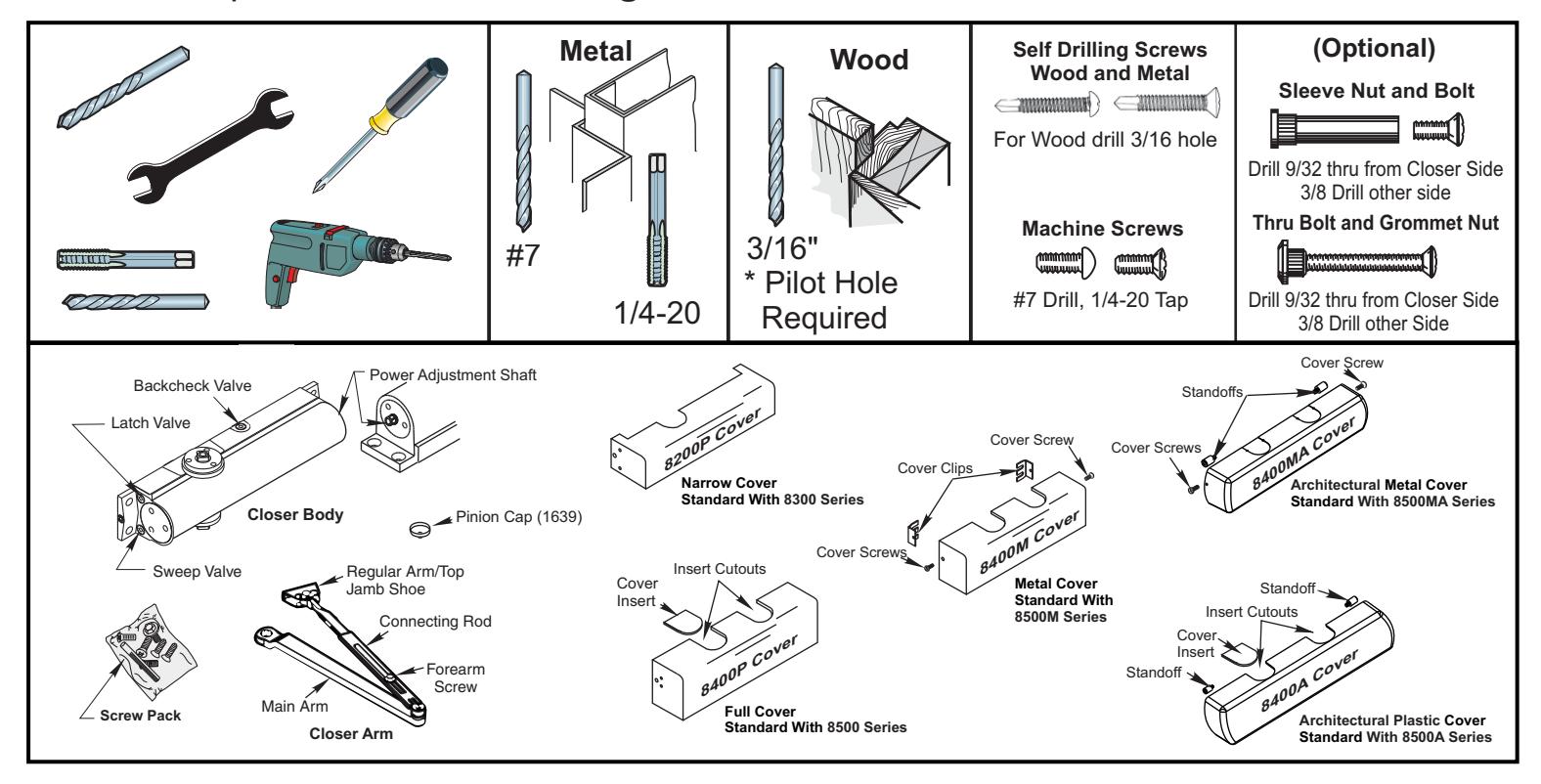

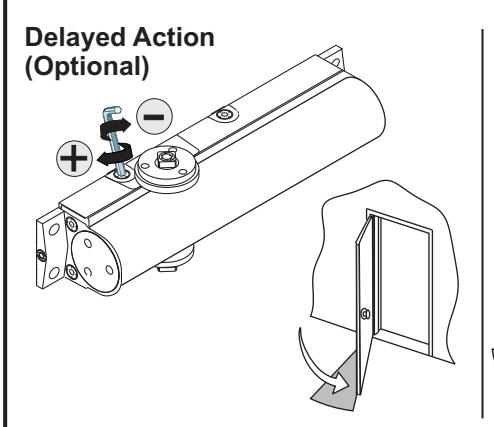

- "DA" suffix (Delayed Action) is an optional feature.

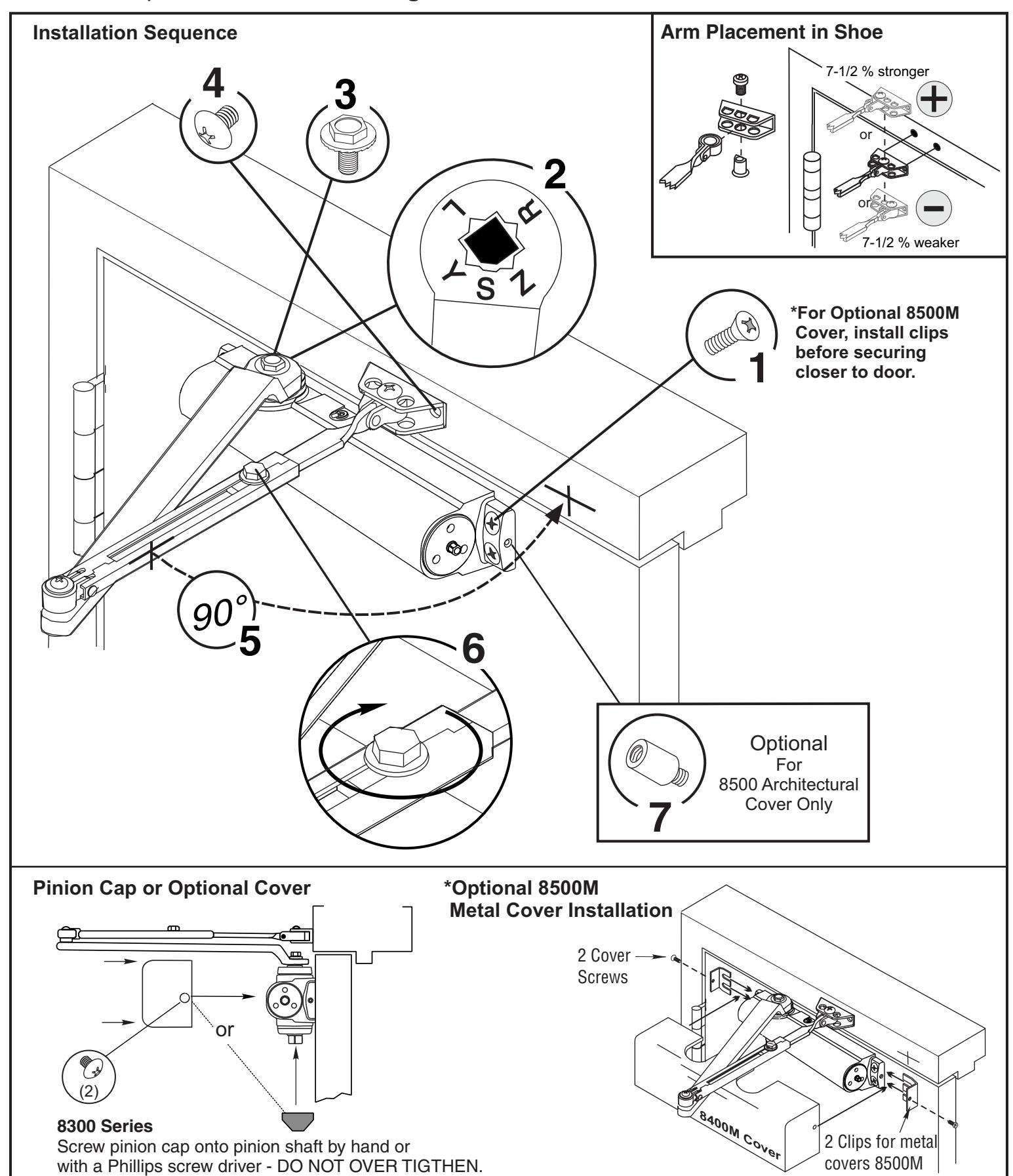

- NOTE: For special applications a separate door and frame preparation template is packed with these instructions. Use this instruction sheet for installation sequence and closer adjustments only.
- Doors should be hung on ball bearing or anti-friction hinges.
- A separate door stop is recommended.
- Door and frame must be properly reinforced.
- Always adjust spring power before adjusting control valves.
- Adjust closing time speed between 3 and 7 seconds from 90° to 0°. Greater closing times may be required for elderly or handicapped.
- These door closers should NOT be installed on the exposed side (weather side) of exterior doors.
8000 Series
Non Hold Open Door Closers — Regular Arm
ASSA ABLOY

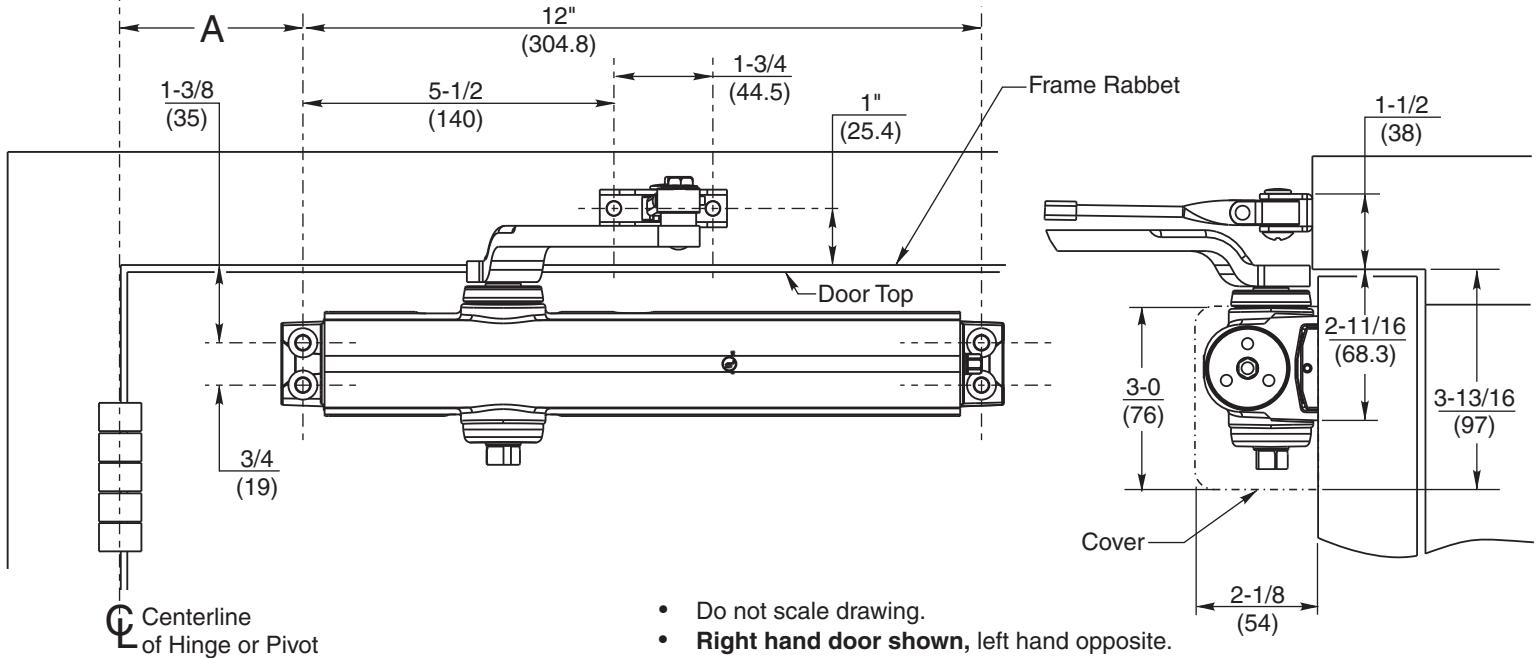

Mark and Drill Holes
This template for use with standard butt hinges or 3/4 offset pivots. For all other hardware, please consult factory for template.
| Dimension "A" | ||||
|---|---|---|---|---|
| Opening | Inches | mm | ||
| To 100° | 7-1/2 | 191 | ||
| 100° to 130° | 6 | 152 | ||
| 131° to 180°* | 4-1/2 | 114 | ||
*Door/Frame/Hardware/Wall conditions permitting.

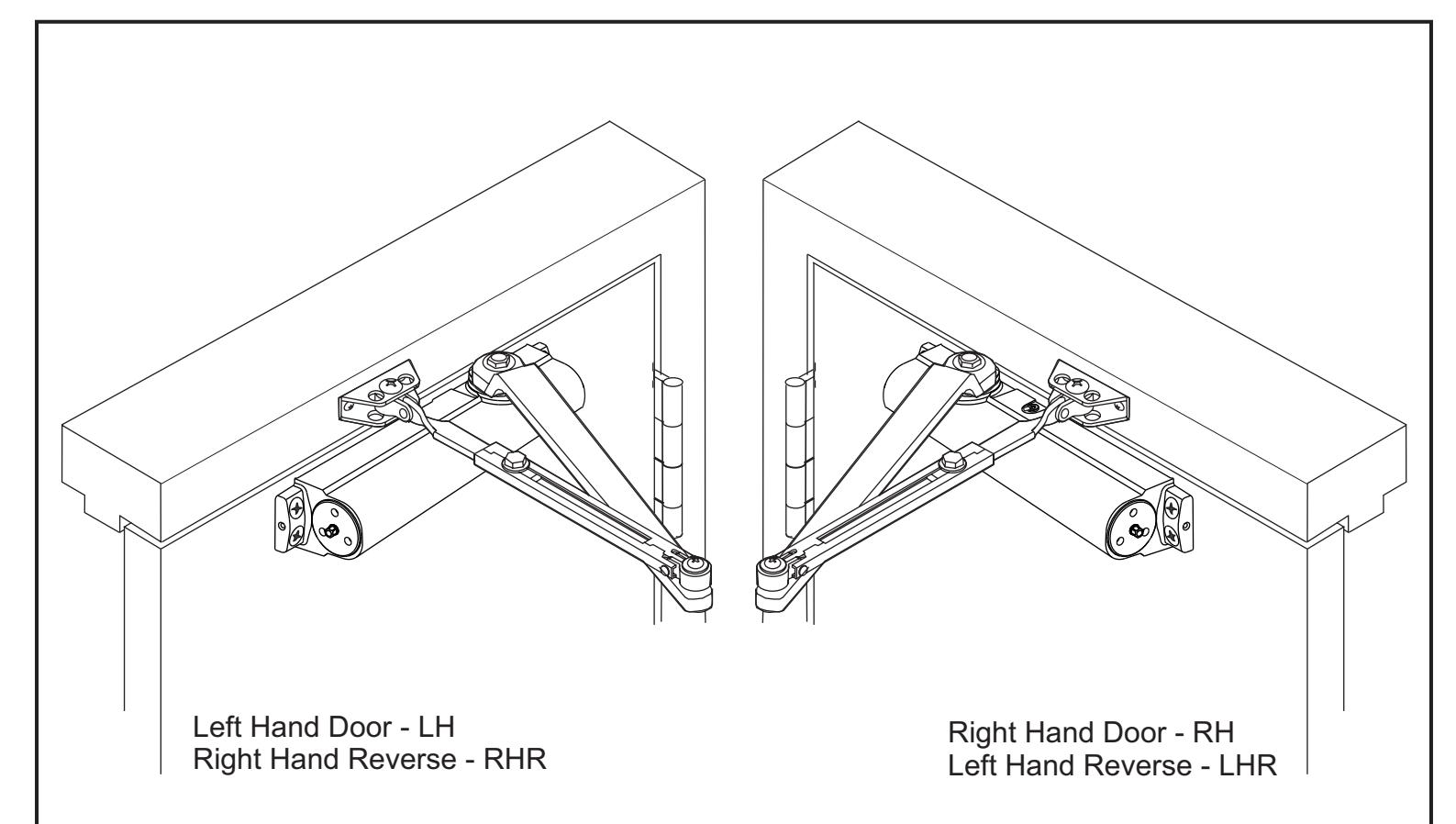

- Right hand door shown, left hand opposite.
- Dimensions are in inches / (mm)
- Hollow metal door require channel or box type reinforcement when through bolt mount is specified.
- Sex bolts required for wood or plastic faced fire door mounting.
- Minimum thickness recommended for reinforcements in hollow metal doors and frames: .146" (2.66mm) unless otherwise specified.
8000 Series
Non Hold Open Door Closers — Regular Arm ASSA ABLOY

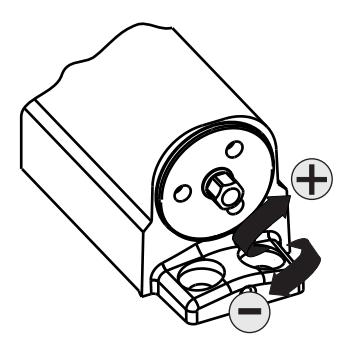

Spring Power Adjust
(Use 5/16" Socket or Adjustable Wrench for this Adjustment)
The closing force for series 8101, 8301 & 8501 door closers is adjustable from a size 1 to a size 6, as outlined in ANSI Standard A156.4. When these series of door closers are installed and adjusted to conform to ADA reduced opening force requirements (5 lbs max.) for interior doors, they may not have adequate closing force to reliably close and latch the door. Power adjustments charted on this page are recommended where possible, to ensure proper door control.
|
Adjustment Chart
Regular Arm S8101/S8301/S8501 |
Number of Turns Required | |||||
|---|---|---|---|---|---|---|
| DOOR | * | MAXIMUM DOOR SIZE | ||||
|
32"
(0.85M) |
36"
(0.90M) |
42"
(1.00M) |
48"
(1.20M) |
|||
| INTERIOR |
FULL 360° TURNS
OF 5/16 POWER ADJUSTMENT WRENCH |
5 | 8 | 11 | 13 | |
| EXTERIOR | 7 | 10 | 13 | 16 | ||
*20 FULL (360°) TURNS MAXIMUM AVAILABLE Closer is shipped set at mid range setting = 10 turns
By law the Americans with Disabilities Act (ADA) may require that door closer installation comply with accessability guidelines.

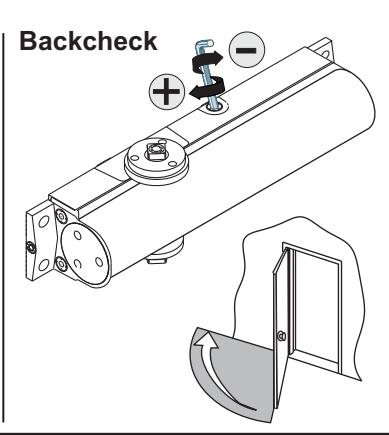

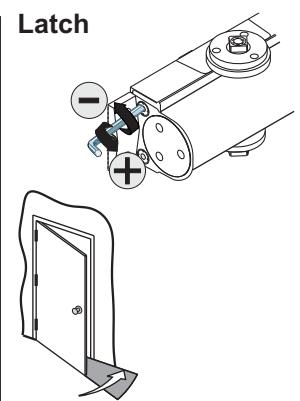

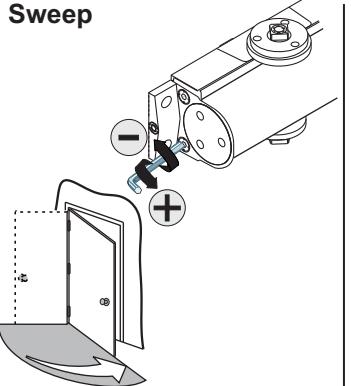

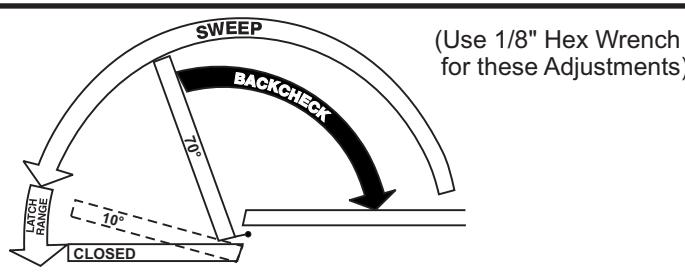

Adjust Closing Speed Time to between 3 to 7 seconds from 90°. Use of the door by handicapped, elderly or small children may require greater closing time.
for these Adjustments)

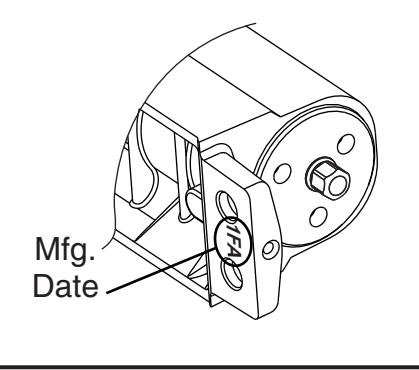

To Identify Date Code:
ASSA ABLOY
3000 Highway 74 East • Monroe, NC 28112 Tel: (877)-974-2255 • Fax: (800)-338-0965 www.nortondoorcontrols.com
