Norton 8000 Series Door Closer Parallel Rigid Arm with or without 8148 8158 8548 Drop Plate Non-Hold Open or Hold Open Template
Open the original PDF document
View PDF
| Opening | Dim. "A" |
Dim. "B"
3-3/4 (95) |
||
|---|---|---|---|---|
| To 120° | 9-1/2 (241) | |||
| Over 120°* | 7 (178) | 1-1/4 (32) | ||
| D | UUI I | Abei ill | As a | O IO | W- | COIN | 10 | Petitili | wng. |
|---|---|---|---|---|---|---|---|---|---|
| • • • • |
- |
| Close | Closer Size "1" Power Setting | |||||
|---|---|---|---|---|---|---|
| Max. Do | or Width | **Power | ||||
| interior | Exterior |
Adjustment
Required |
||||
| 3' 0" | 3 turns | |||||
| 3' 6" | 3′ 0″ | 4 turns | ||||
| 4' 6" | 3' 6" | 7 turns | ||||
| 5' 0" | 4' 0" | 9 turns | ||||
| Maxi | mum | 13 turns | ||||
NOTES:
- 1. Do not scale drawing.
- 2. Left hand door shown.
- 3. Dimensions are in inches.
- 4. Hollow-metal doors require channel or boxtype reinforcement when thru-bolt mount is specified.
- 5. Sex-bolts required for wood or plastic faced fire-door mounting.
- 6. Minimum thickness recommended for reinforcements in hollow-metal doors and frames: .0146" (2.66mm) unless otherwise noted.
- 7. Hold Open function "T" Suffix, is not permitted in a fire-door assembly.
- 8. Maximum width hinges for this template are 5" (127mm)

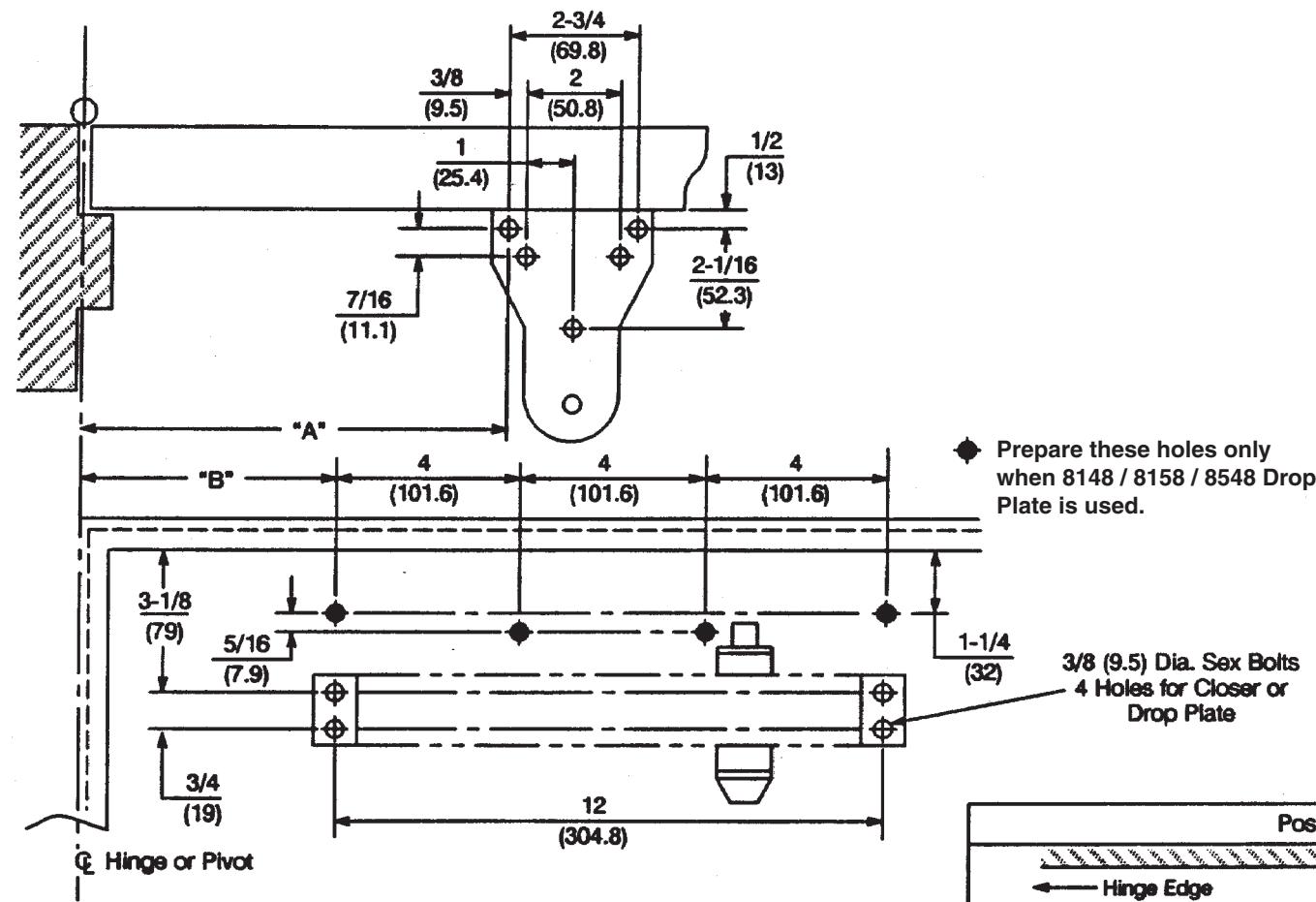

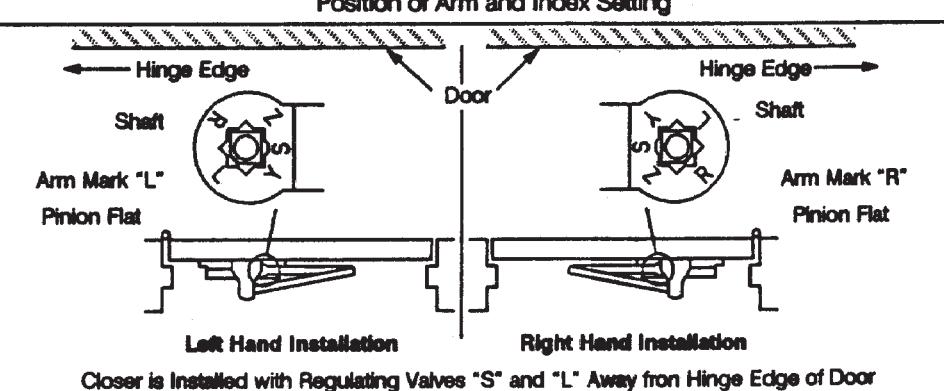

PR8000 Series Non Hold Open or PR8000H Series Hold Open Parallel Arm Application With or Without 8148 / 8158 / 8548 Drop Plate Closer Series PR8100, PR8300 & PR8500 Power Sizes 1, 2, 3, 4, 5, or 6
www.nortondoorcontrols.com
7380-0251 TEMPLATE NUMBER DATE
09-08
