Norton 8000 Series Door Closer PS8340ST PS8540ST PS8340STH PS8540STH Slide Track Push Side Non-Hold Open or Hold Open Template

CL

Hin ge

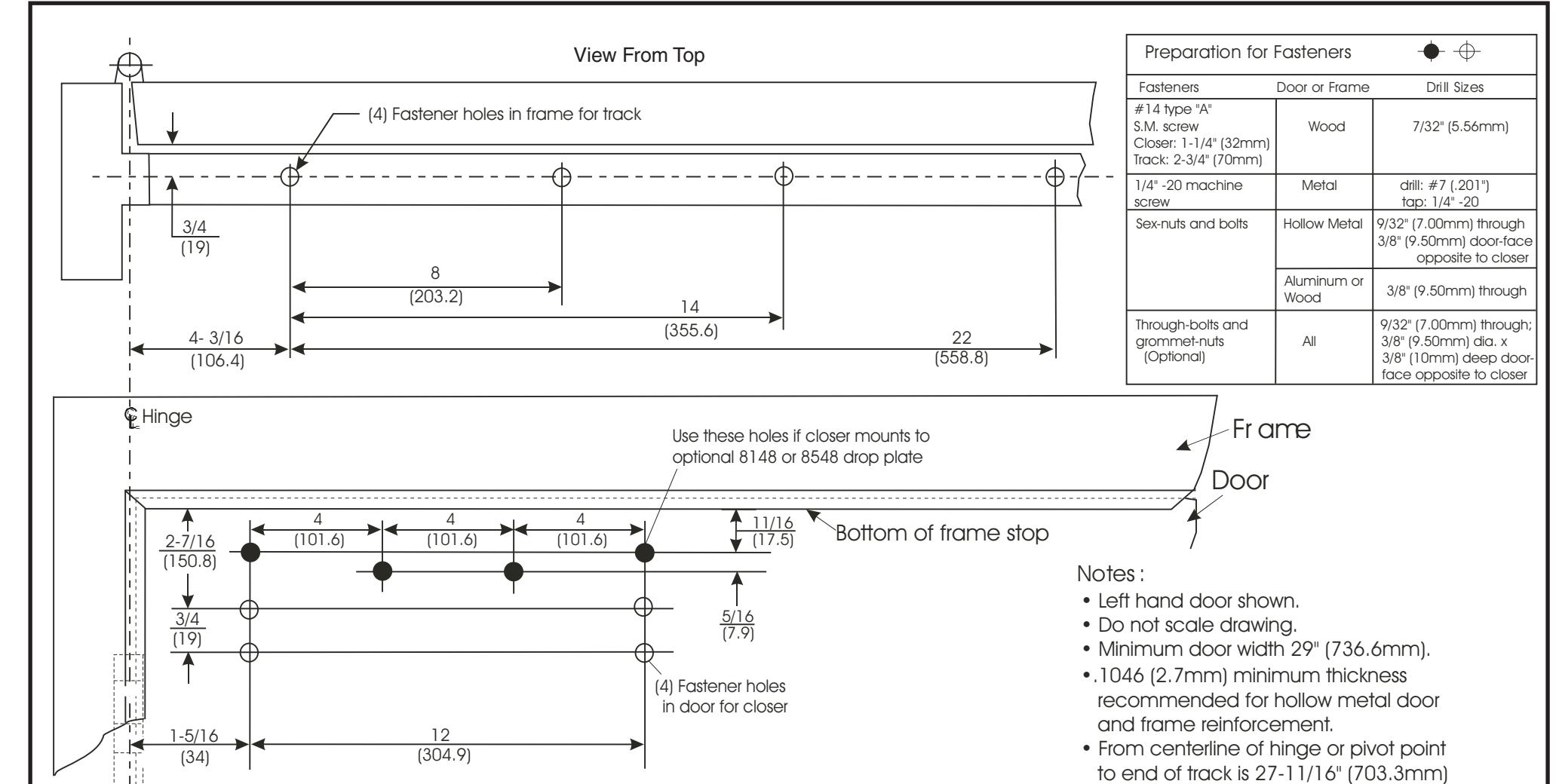

PS8340ST, PS8540ST Series Non Hold Open Door Closer PS8340STH, PS8540STH Series Hold Open Door Closer Push (Stop) Side Slide Track Application Closer Sizes 1, 4, 5, or 6

inches (mm)

www.nortondoorcontrols.com

TEMPLATE NUMBER DATE

Maximum door opening: 120°.

conditions permitting.

Dimensions are given in

Use of auxilary door stop may be required, to prevent damage to door, frame, or hinges,

7380-1520

09-08
