Norton 8000 Series Door Closer P8000H Parallel Arm with or without 8148 Drop Plate Hold Open Template
Open the original PDF document
View PDF
| Opening | Dimension "A" | Dimension "B" | ||
|---|---|---|---|---|
| inches | mm. | inches | mm. | |
| To 120° | 9-1/2 | 241 | 3-3/4 | 95 |
| Over 120° | 7 | 178 | 1-1/4 | 32 |

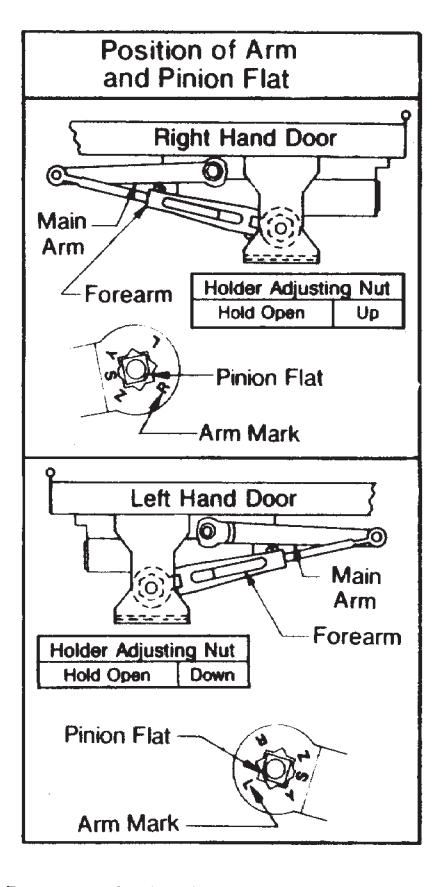

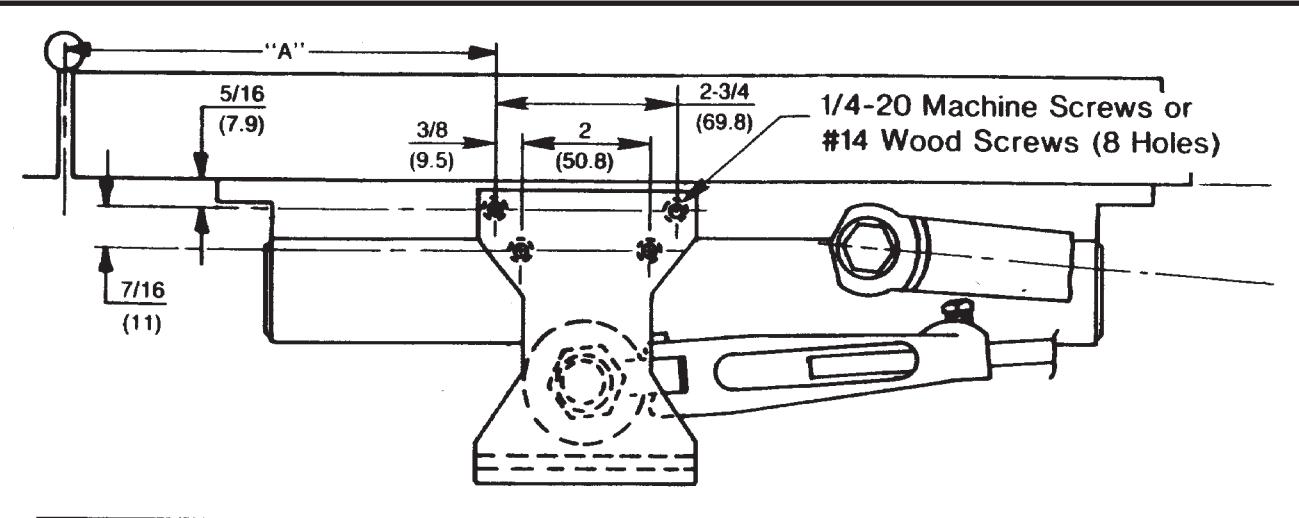

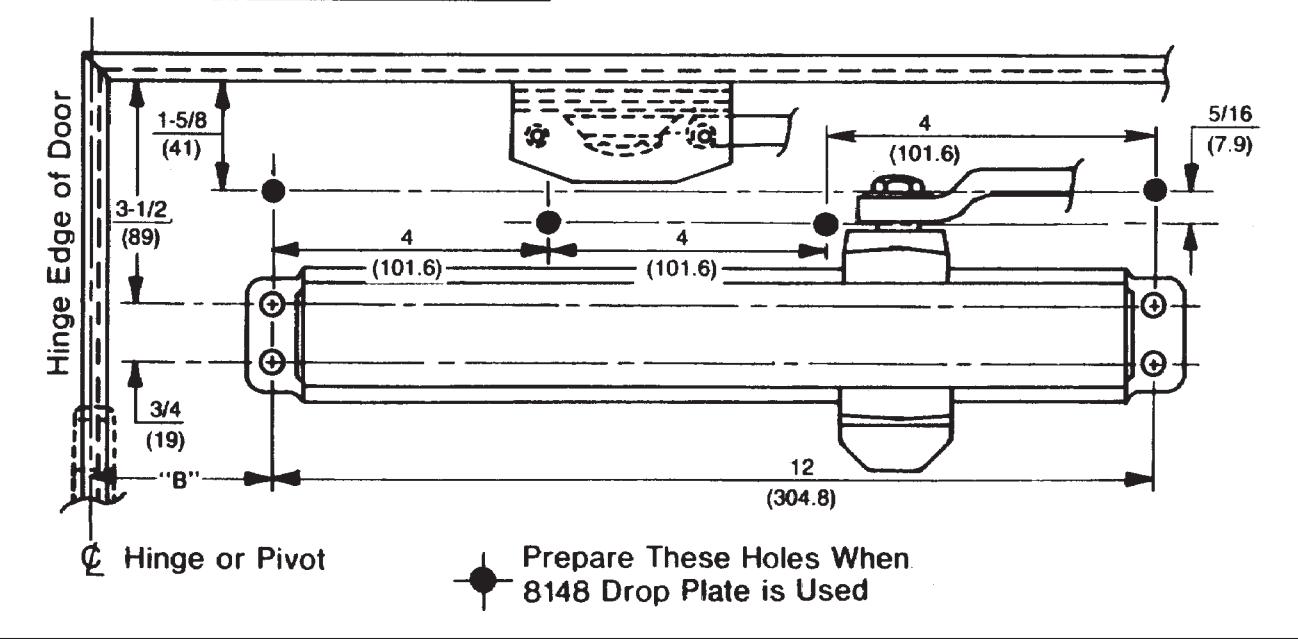

P8000H Series Door Closers Parallel Hold Open With or Without 8148 Drop Plate P8100H, P8300H, and P8500H Sizes 1 thru 6
www.nortondoorcontrols.com
TEMPLATE NUMBER DATE
7380-0211
09-08
