Norton 8000 Series Door Closer P8000 Parallel Arm with or without 8148 Drop Plate Non-Hold Open Template

Open the original PDF document

Do not scale drawing.

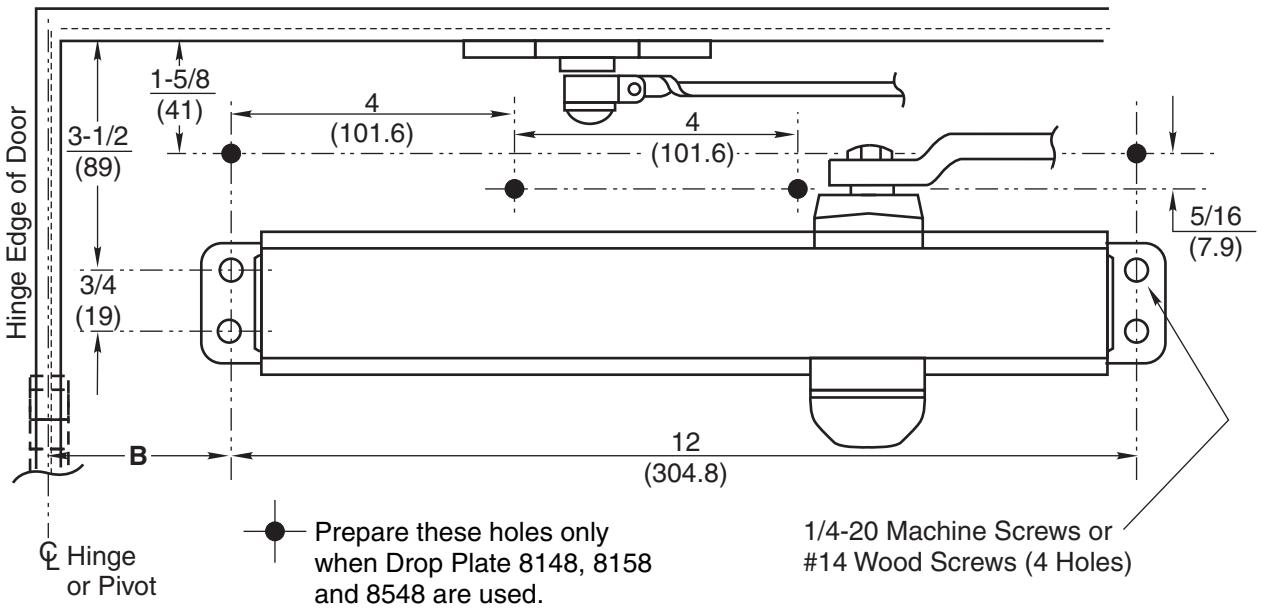

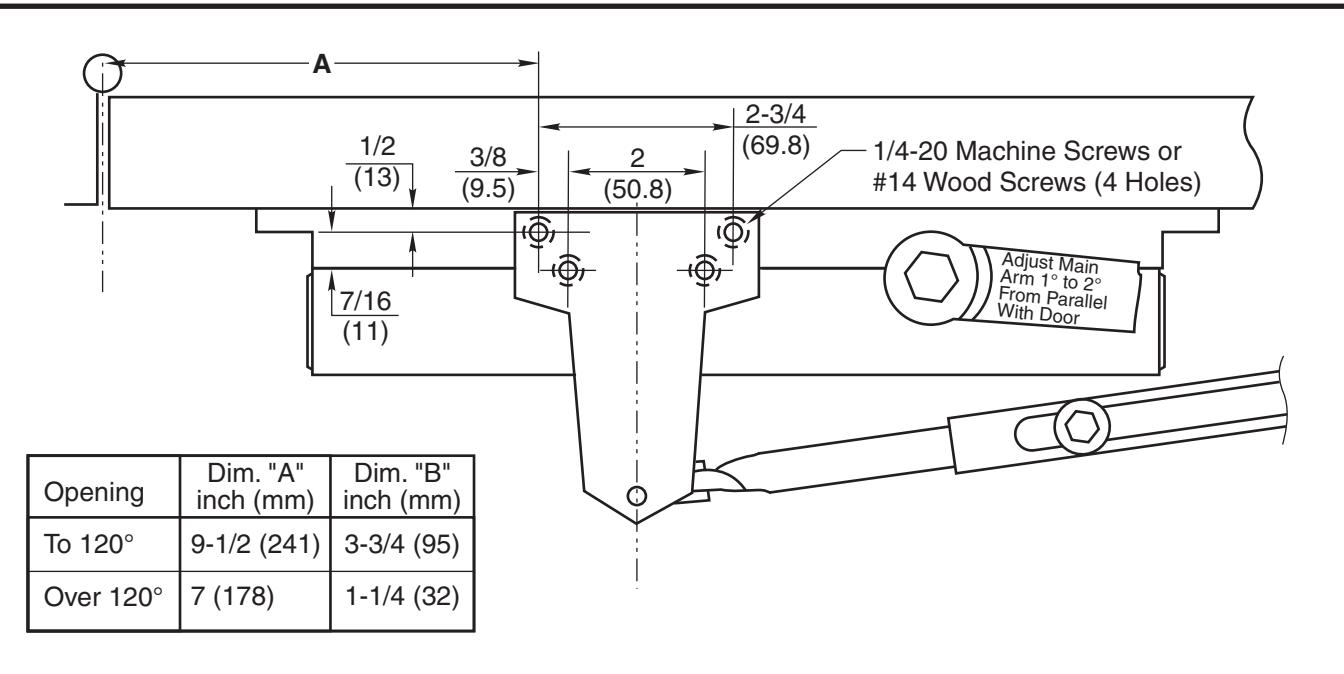

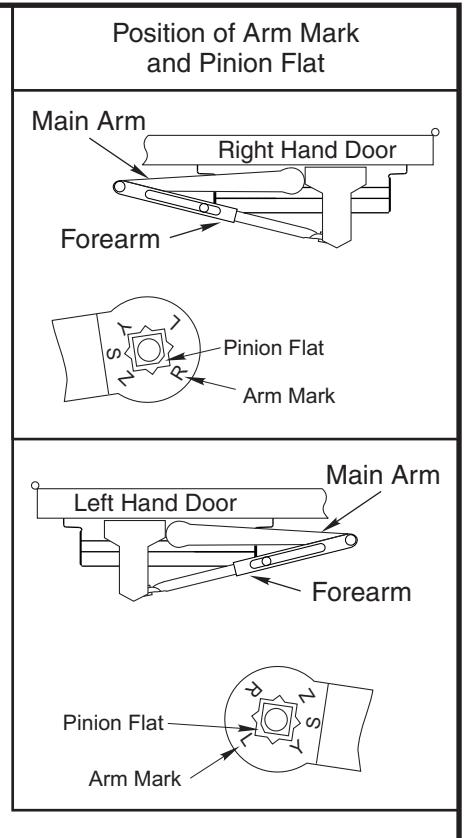

· Left hand door shown.
Dimensions are in inches (mm).
Hollow metal doors require channel or box type reinforcement when thru bolt mount is specified.
Sex bolt required for wood or plastic faced fire door mounting.
Minimum thickness recommended for reinforcements in hollow metal doors and frames: .1046 (2.66mm) unless otherwise noted.

www.nortondoorcontrols.com

TEMPLATE NUMBER 7380-0201

09-08
