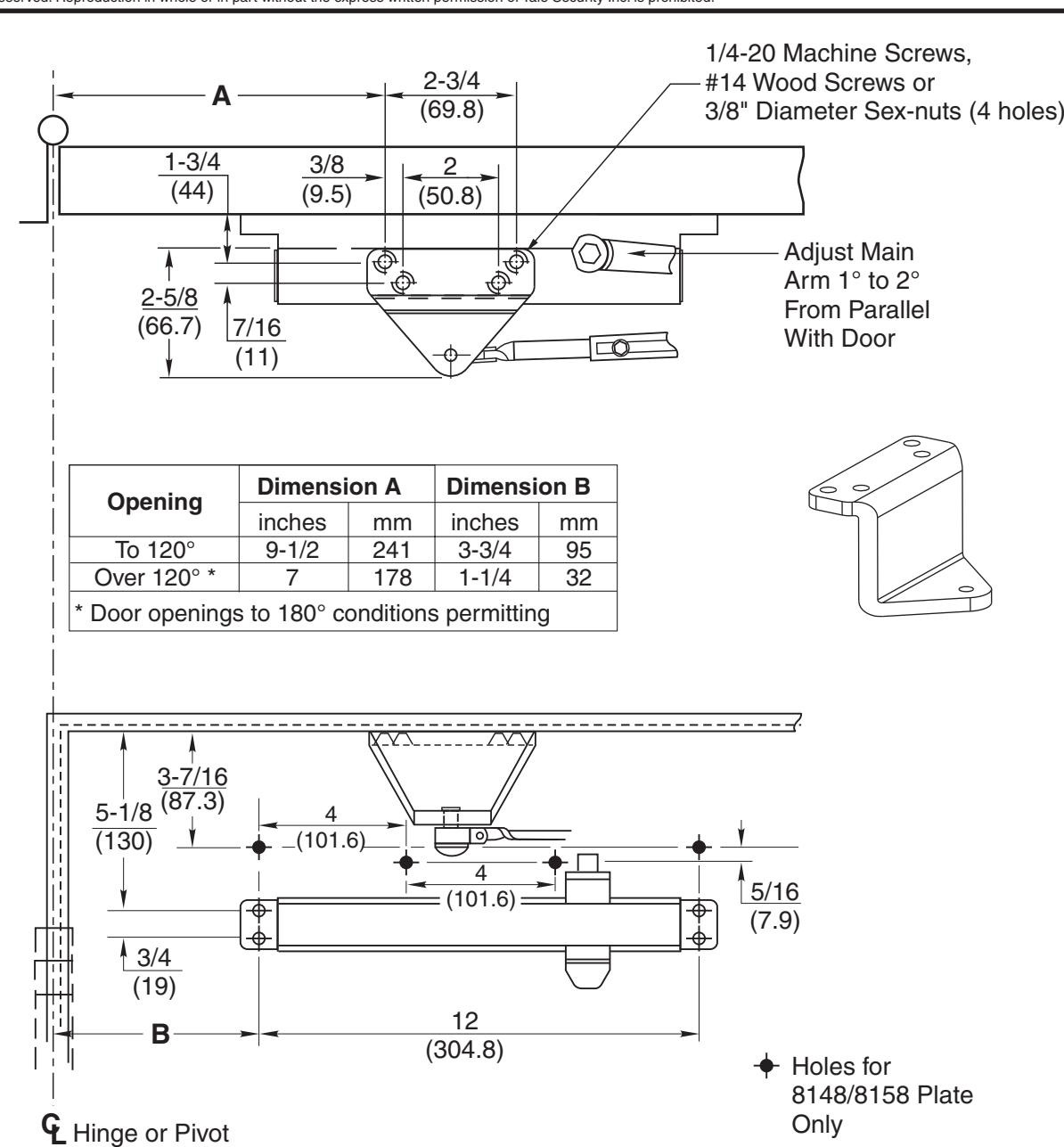

Norton 8000 Series Door Closer P8000 Parallel Arm with Offset Plate with SP2018S Special Bracket with or without 8148 8158 Drop Plate Non-Hold Open Template

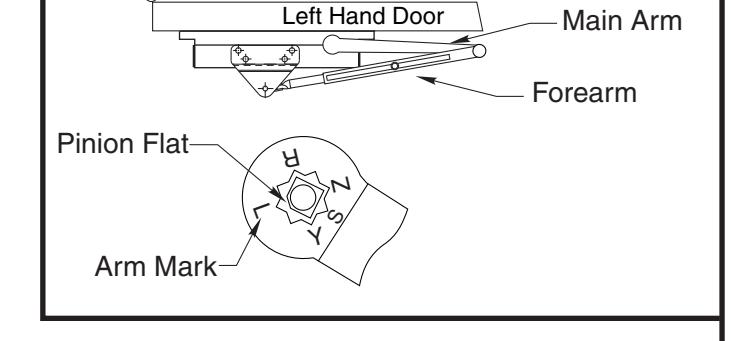

Position of Arm Mark and Pinion Flat Right Hand Door Main Arm Forearm

Notes:

• Do not scale drawing.
• Left hand door shown.
• Dimensions are in inches (mm).
• Hollow-metal doors require channel or box-type reinforcement when thru-bolt mount is specified.
• Sex-bolts may be required for wood or plastic faced fire-door mounting.
• Minimum thickness recommended for reinforcements in hollow-metal doors and frames: .1046" (2.66mm) unless otherwise noted.

P8000 Series Door Closer With SP2018S Special Bracket And With Or Without 8148/8158 Drop Plate Parallel Non Hold Open Arm With Offset Plate Application Series P8100, P8300, And P8500 Door Closer Size 1(Multi-size 1 Thru 6) Or Individually Sized 2, 3, 4, 5 Or 6

TEMPLATE NUMBER DATE

www.nortondoorcontrols.com

7380-0215 09-08
