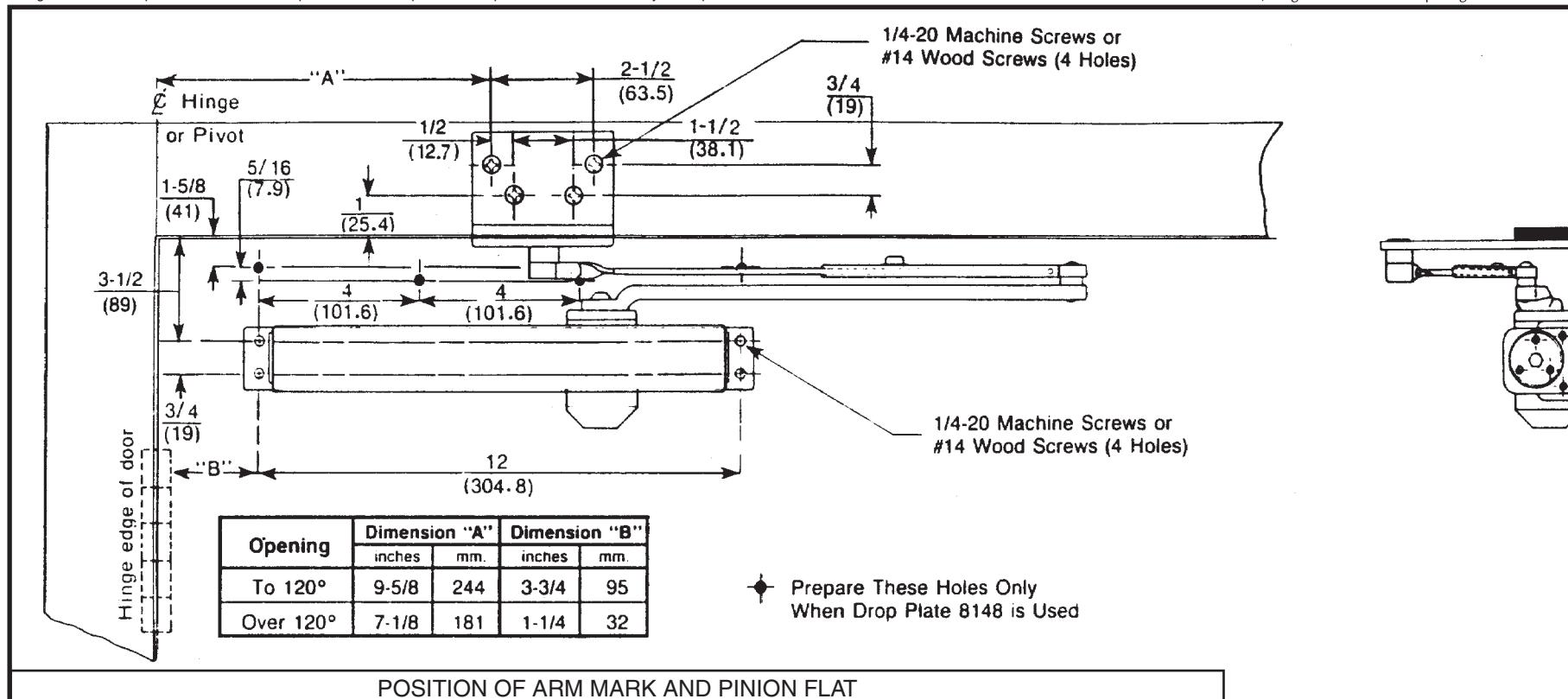

Norton 8000 Series Door Closer P8000 Parallel Arm with 2022 with or without 8148 Drop Plate Non-Hold Open Template

• Do not scale drawing.
• Left hand door shown.
• Dimensions are in inches (mm.).
• Hollow metal doors require channel or box type reinforcement when thru bolt mount is specified.
• Sex bolt required for wood or plastic faced fire door mounting.
• Minimum thickness recommended for reinforcements in hollow metal doors and frames: .1046" (2.66 mm.) unless otherwise noted.

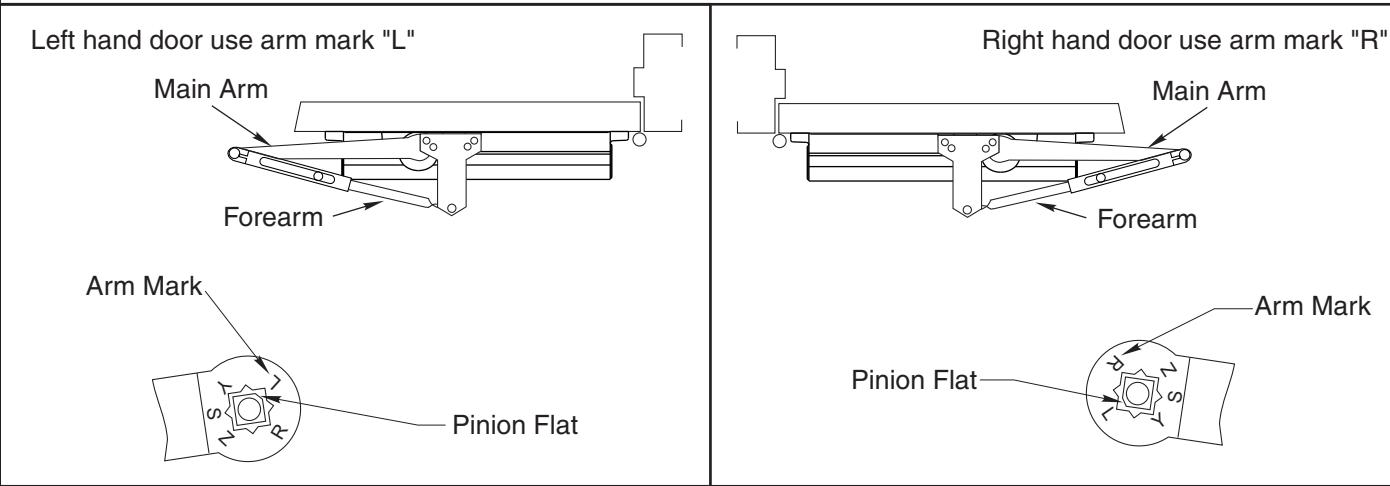

P8000 Series Door Closers Parallel Arm Application With 2022 Bracket With or Without 8148 Drop Plate P8100, P8300, and P8500 - Sizes 1 - 6

www.nortondoorcontrols.com

TEMPLATE NUMBER

7380-0203

09-08
